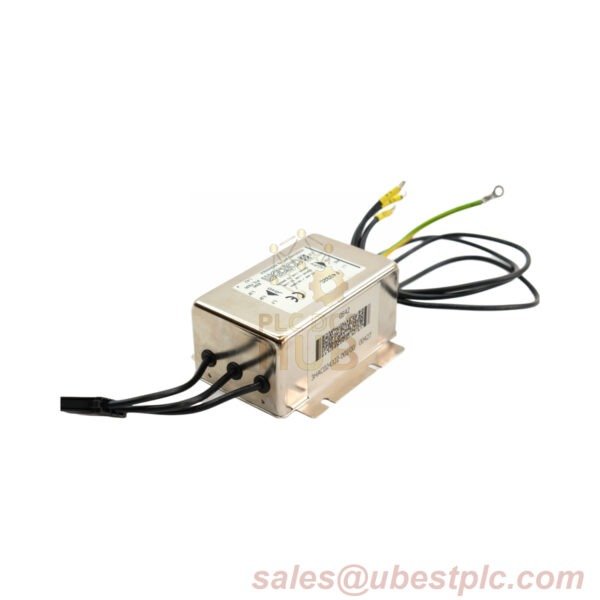

3HAC023890-001 Mains Line Filter Unit M2000 ABB

Description

Description

The ABB Mains Line Filter Unit M2000 (3HAC023890-001) is an industrial-grade power conditioning device engineered to eliminate electromagnetic interference in 380-480V automation systems. With 20A current capacity and DIN rail mounting, this filter protects sensitive electronics like PLCs and servo drives from harmful voltage spikes and high-frequency noise, ensuring compliance with IEC 61000 EMC standards.

Technical Specifications

• Model: 3HAC023890-001
• Electrical:
  • Input Voltage: 380-480V AC (±10%)
  • Frequency: 50/60 Hz auto-sensing
  • Rated Current: 20A continuous | 45A peak (2s)
  • Insertion Loss: 40 dB @ 150 kHz
  • Leakage Current: <1 mA @ 480V
• Mechanical:
  • Dimensions: 100(W) × 120(H) × 150(D) mm
  • Mounting: DIN Rail EN 60715 TH35
  • Terminals: Dual-stage compression (0.5-16mm²)
  • Housing: UL94 V-0 polycarbonate
• Environmental:
  • Operating Temp: -10°C to +60°C
  • Storage Temp: -25°C to +85°C
  • Altitude: 2000m max
  • Vibration: 5-150Hz, 1.5mm amplitude
