Description
Product Overview

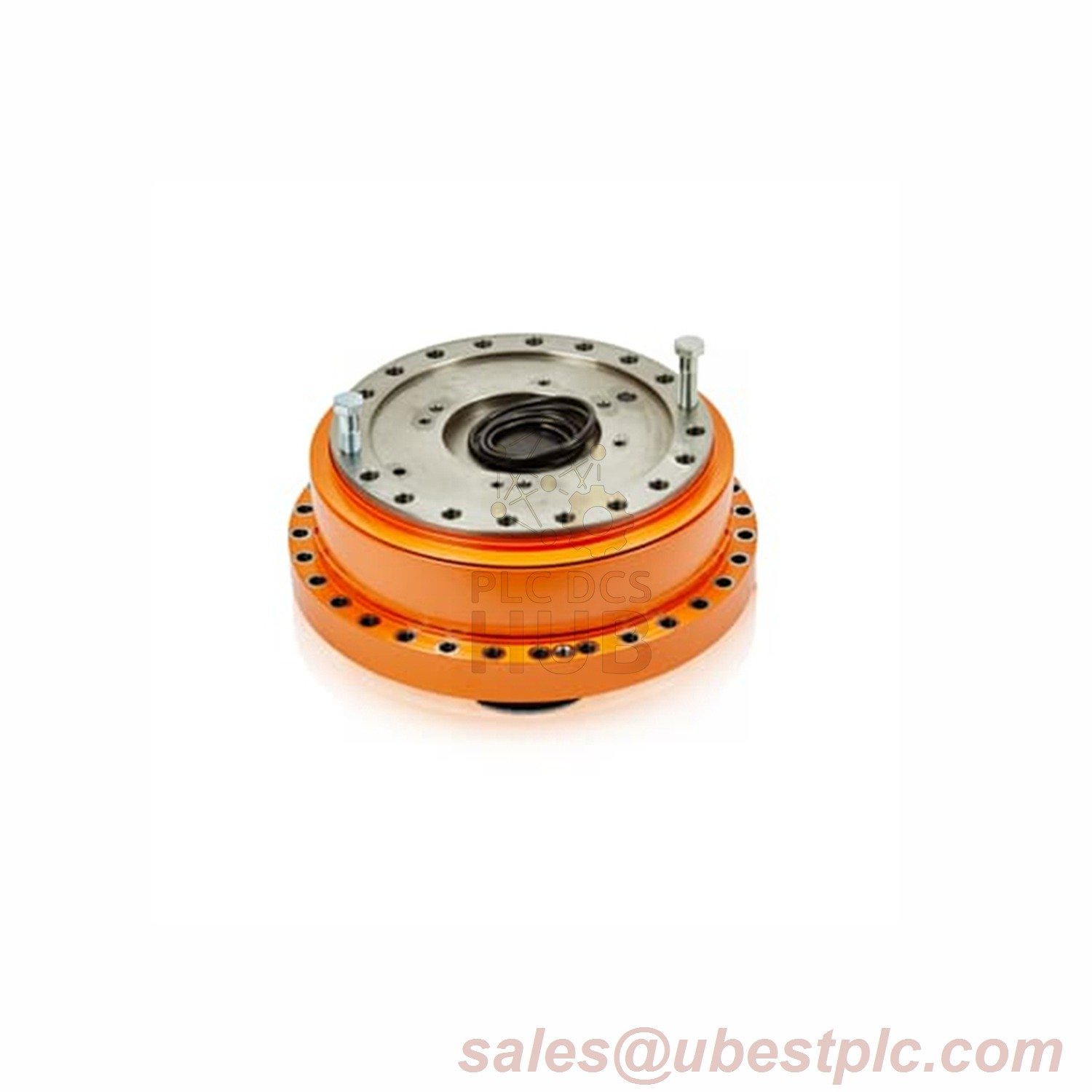

Engineered for heavy-duty automation and robotics, the ABB 3HAC024316-005 gearbox excels in high-torque applications with a focus on precision and resilience. Featuring a 242.73:1 gear ratio and a maximum torque capacity of 550 Nm, this unit supports demanding operations in manufacturing, material handling, and assembly lines. Its dual horizontal/vertical mounting flexibility and grease lubrication system ensure adaptability across diverse installations, while a robust vibration resistance of 25G enhances durability in harsh environments. With an operational temperature range of -15°C to +45°C and a lifespan of 25,000 hours, it delivers reliable performance in high-stress scenarios. The ≤1 arc-minute backlash and 87% efficiency further underscore its precision-driven design.
Technical Specifications
- Brand: ABB
- Model: 3HAC024316-005
- Suffix “242.73”: Indicates a gear ratio of 242.73:1.
- Gear Ratio: 242.73:1
- Maximum Torque: 550 Nm
- Rated Torque: 400 Nm
- Allowable Moment Load: 1400 Nm
- Input Speed Range: 1200–3200 RPM
- Backlash: ≤1 arc-minute
- Efficiency: 87%
- Mounting: Horizontal/Vertical
- Lubrication: High-efficiency grease
- Weight: 94 kg
- Dimensions: Not specified (refer to manufacturer documentation)
- Operating Temperature: -15°C to +45°C
- Vibration Resistance: 25G
- Service Life: 25,000 hours
Contact Information
For inquiries or orders, email sales@ubestplc.com for prompt assistance.
