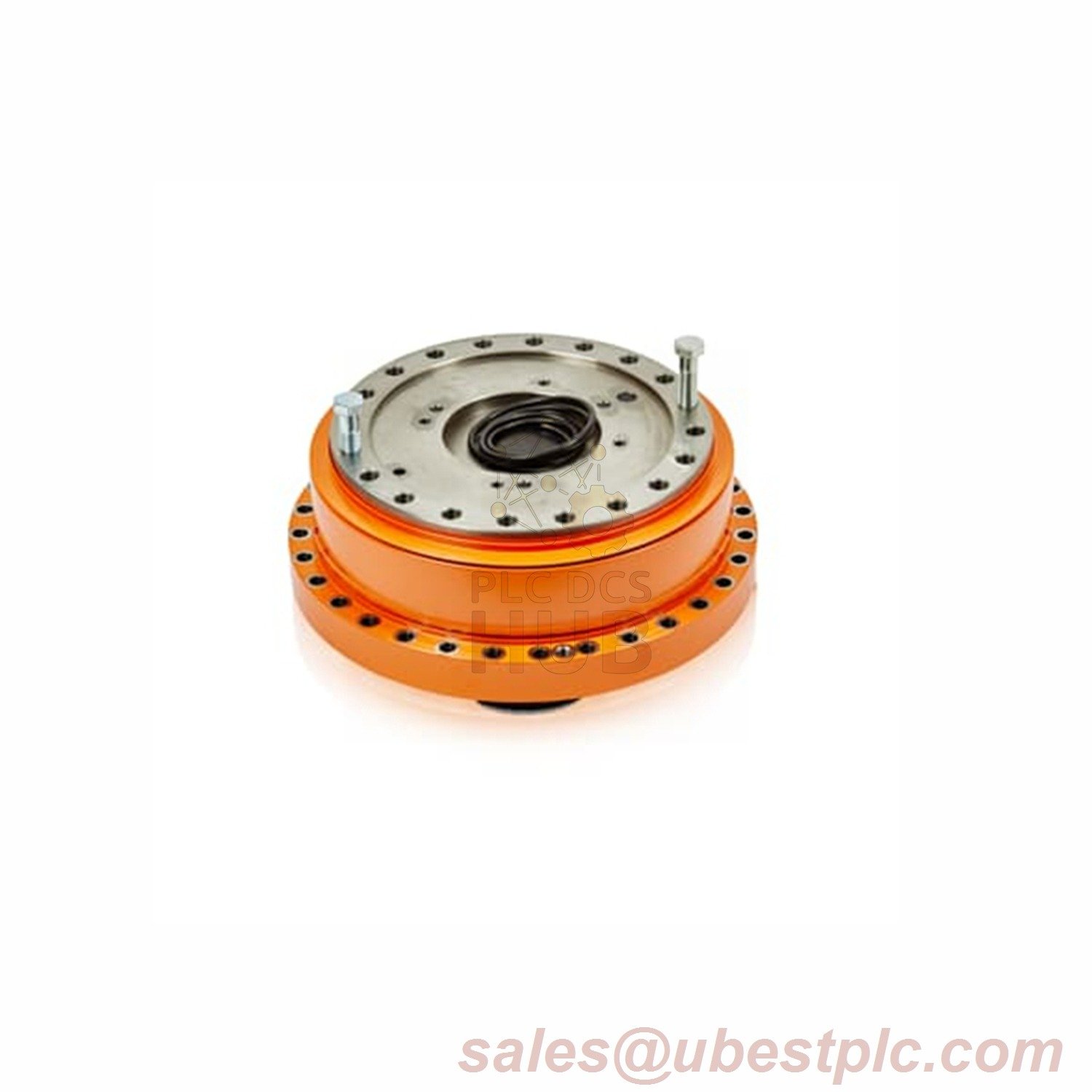

3HAC024316-006 Robotics RV-550E-242.73 RV Gear ABB

Description

Product Overview

Engineered for high-performance industrial automation, the ABB 3HAC024316-006 Planetary Gearhead delivers exceptional torque and precision in demanding applications. Featuring a 242.73:1 gear ratio and a robust torque rating of 550 Nm, this gearbox ensures reliable power transmission for robotics, heavy machinery, and precision equipment. Its compact planetary design, combined with synthetic oil lubrication, minimizes wear and maximizes efficiency (≥98%), while the ≤1 arcmin backlash guarantees precise motion control. With a maximum input speed of 6,000 rpm and a low-noise profile (≤65 dB), it operates smoothly in environments requiring both speed and quietness. The -10°C to +60°C temperature range and 180 mm x 180 mm mounting flange further enhance adaptability across diverse installations.

Technical Specifications

• Brand: ABB
• Model: 3HAC024316-006
• Gear Type: Planetary Gearhead
• Gear Ratio: 242.73:1
• Torque Rating: 550 Nm
• Maximum Speed: 6,000 rpm
• Backlash: ≤1 arcmin
• Efficiency: ≥98%
• Lubrication: Synthetic Oil
• Noise Level: ≤65 dB(A)
• Operating Temperature: -10°C to +60°C
• Weight: 95 kg
• Input Shaft Diameter: 30 mm
• Output Shaft Diameter: 50 mm
• Mounting Flange: 180 mm x 180 mm

Contact Information
For technical support or purchasing inquiries, contact sales@ubestplc.com
