Description

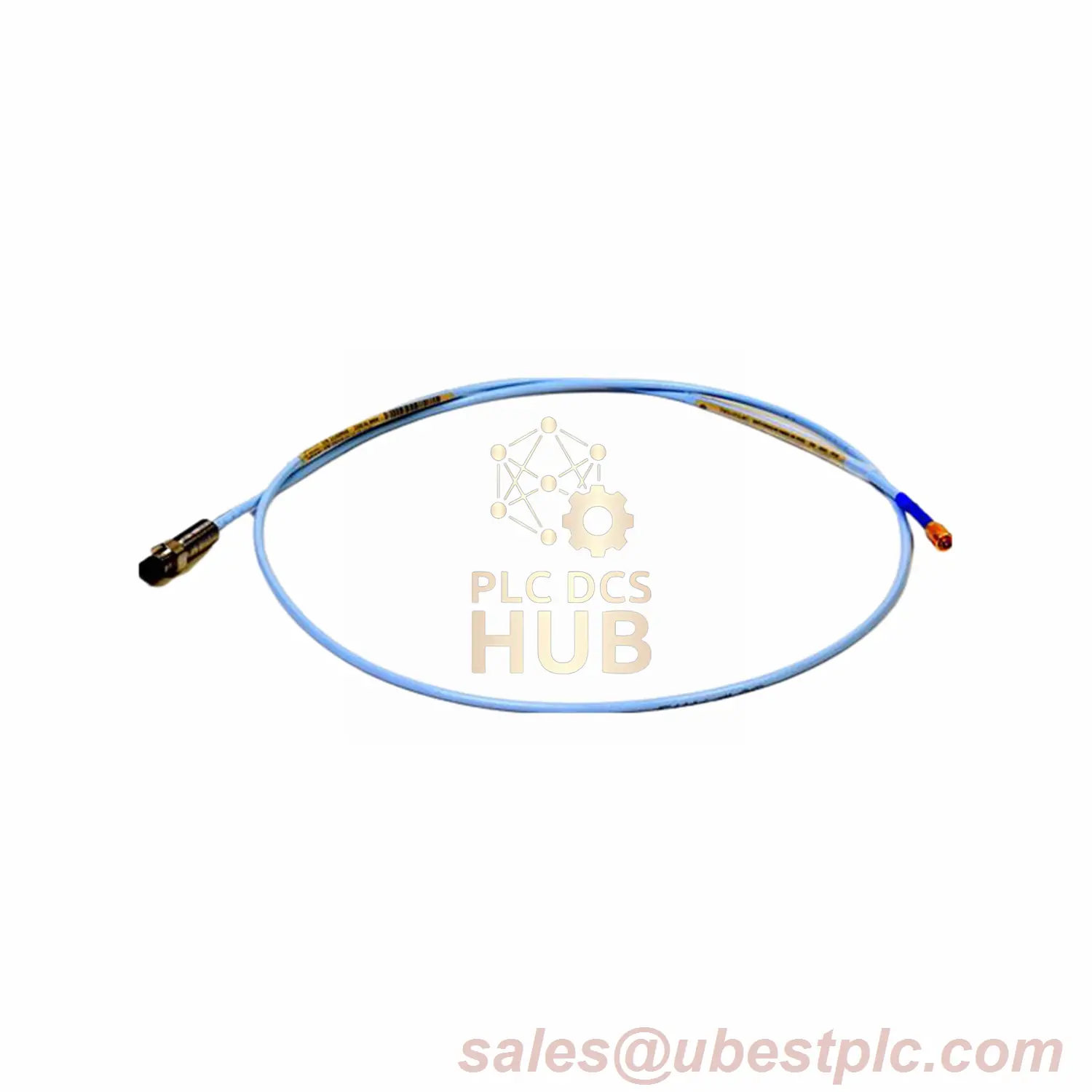

Bently Nevada 330171-10-24-05-02-00: Precision 5mm Proximity Probe
Description
Industrial-grade 5mm proximity probe designed for vibration monitoring in turbines, compressors, and rotating machinery. Features 1/4-28 UNF threaded stainless steel case and PPS tip for extreme conditions. Made in USA.
Key Features
- Unthreaded length: 1.0 inch (10 option)
- Total cable length: 0.5 meter (05 option)
- Miniature ClickLoc connector (02 option)
- Works with AISI 4140 steel targets
- Withstands -35°C to +177°C (-31°F to +351°F)
Technical Data
| Brand | Bently Nevada |
| Full Suffix | 330171-10-24-05-02-00 |
| Output Signal | -17.5 to -26 Vdc |
| Accuracy | <2 mV/V supply sensitivity |
| Cable Resistance | 7.45Ω ±0.50 (center to outer conductor) |
Installation Guide
- Use #3 or larger tap drill for 1/4-28 threads
- Max thread engagement: 0.375 inch
- Torque probe case: 5.1 N·m (45 in·lb) recommended
- Min. cable bend radius: 25.4 mm (1.0 inch)
Compatibility
Works with Bently Nevada 3300 XL systems. For AISI 4140 steel targets at 1.27 mm (50 mils) gap.
Packaging
Includes probe unit only. 12-month warranty.
Shipping
Ships worldwide via FedEx, UPS, or DHL in 1-3 business days.
FAQ
Q: What cable length options exist?
A: 0.5m (this model), 1m, 2m, 5m, or 9m.
Q: Can it handle chemical exposure?
A: Yes! PPS tip resists chemicals and heat.
Q: Thread material specification?
A: 1/4-28 UNF on AISI 304 SST case.
