Description

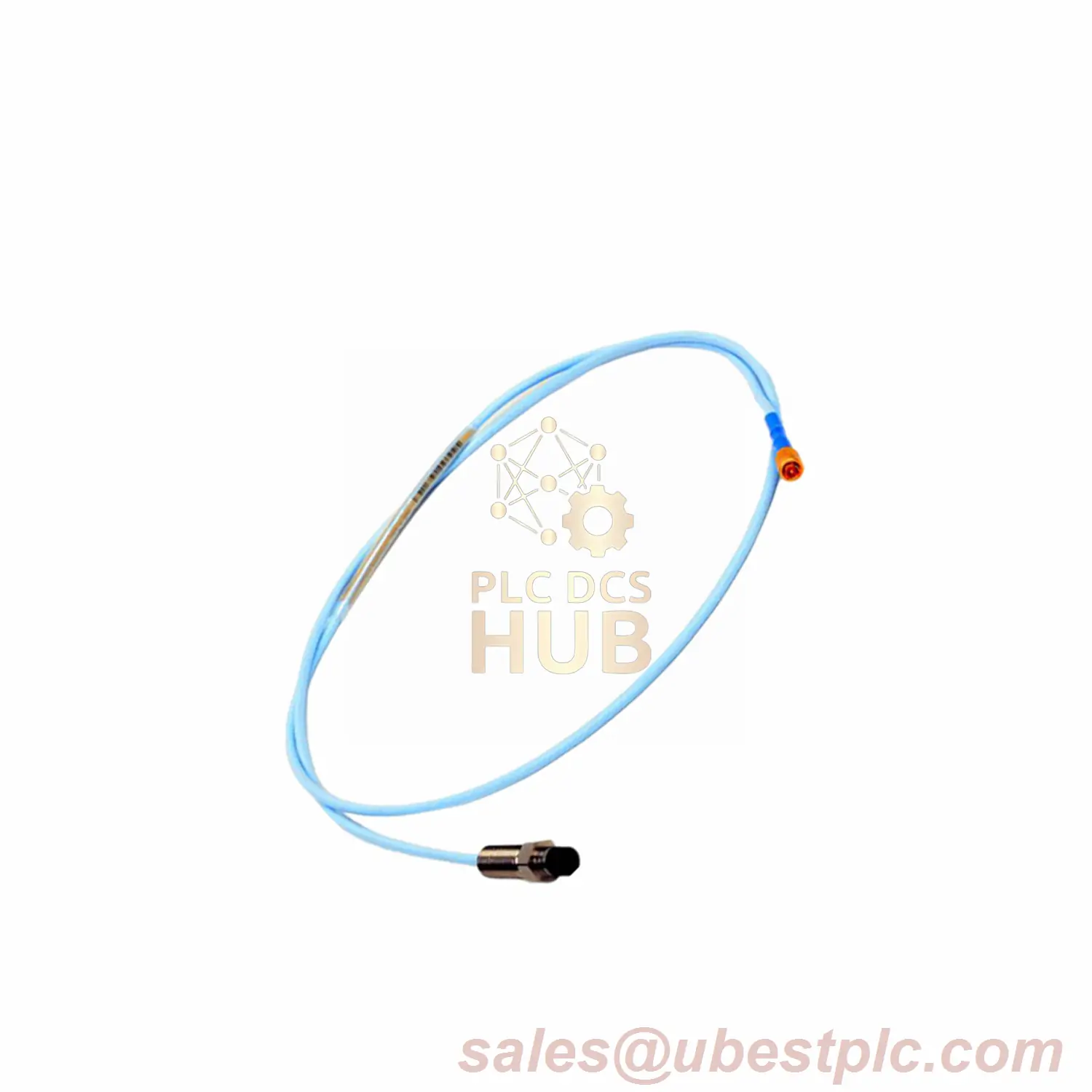

Bently Nevada 330171-00-26-10-02-00 Precision Vibration Probe
Part Number Configuration
- Base Model: 330171 (5mm Vibration Probe)
- Unthreaded Length: 00 = 0 inch
- Case Length: 26 = 2.6 inches
- Cable Length: 10 = 1.0 metre
- Connector Type: 02 = Miniature coaxial ClickLoc
- Agency Approval: 00 = Not Required
Technical Specifications
- Brand: Bently Nevada
- Model: 330171-00-26-10-02-00
- Series: 3300 Vibration Monitoring
- Probe Diameter: 5mm
- Thread Type: 1/4-28 UNF
- Electrical Resistance: 7.59Ω ±0.50
- Temperature Range: -35°C to +177°C
- Cable Construction: FEP-insulated triaxial
- Bend Radius: Minimum 1.0 inch
- Case Material: AISI 304 stainless steel
- Tip Material: Polyphenylene sulfide (PPS)
Installation Guidelines
- Use #3 or larger tap drill for mounting holes
- Apply 5.1 N·m torque to probe case
- Maintain minimum 1.0 inch cable bend radius
- Limit thread engagement to 0.375 inch maximum
- Position probe tip 50 mils from target surface
Packaging Information
- 1x Vibration probe unit
- Protective end caps
- Installation documentation
Shipping & Warranty
- Global delivery via FedEx, UPS, DHL
- 12-month manufacturer warranty
- Optional Certificate of Origin available
Frequently Asked Questions
Q: Minimum operating temperature?
A: -35°C (avoid below -34°C to prevent seal damage)
Q: Cable replacement options?
A: Standard cables available in 0.5-9 metre lengths
Q: Suitable for underwater applications?
A: Not recommended without additional sealing
Q: Chemical resistance of PPS tip?
A: Resists most solvents, oils and weak acids
