Description

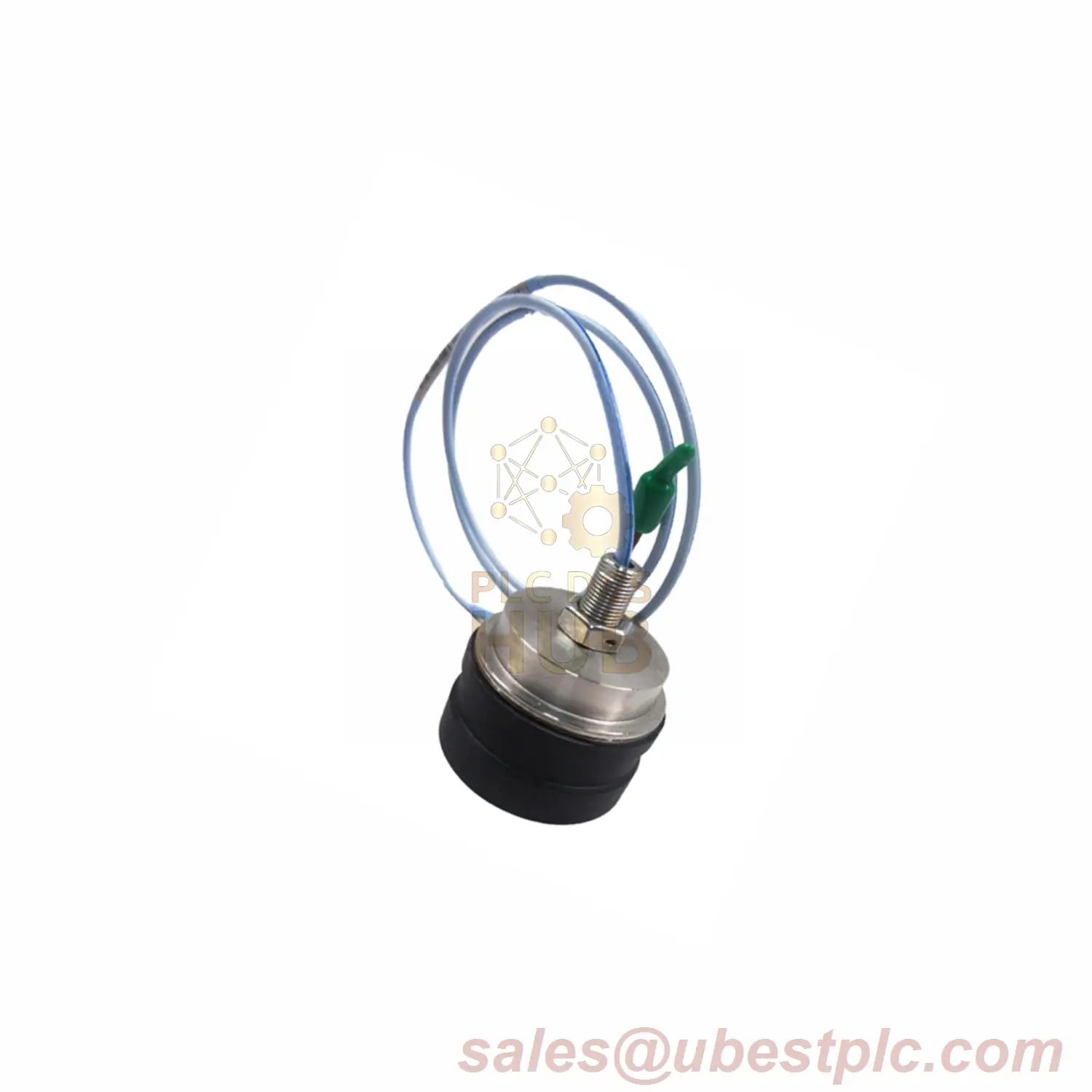

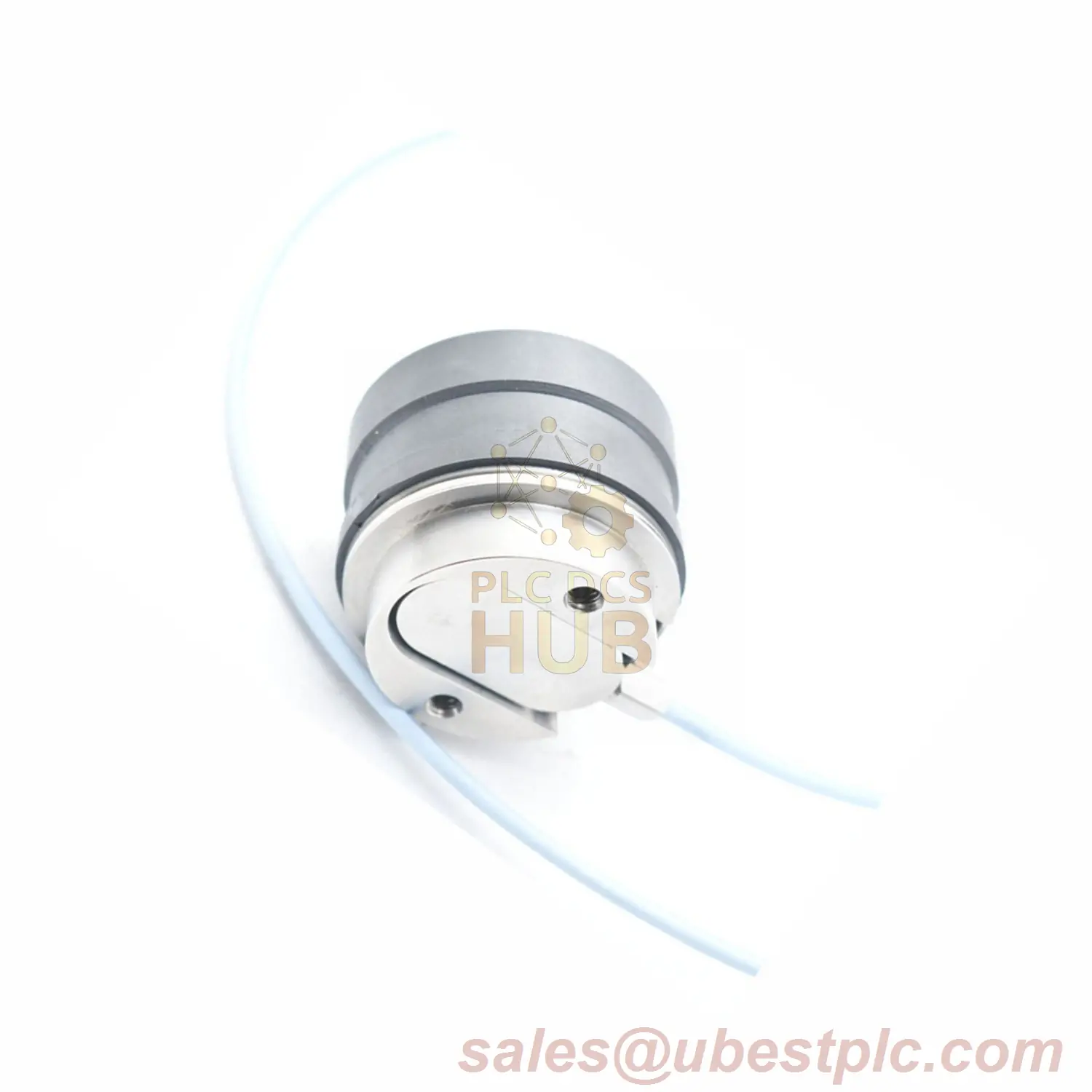

Bently Nevada 330876-01-10-00-00 – 3300 XL 50mm Proximity Probe (½-20 Thread, 1m)
Model Code Breakdown
330876-01-10-00-00 ├─ 330876 = 3300 XL 50mm probe base ├─ 01 = ½-20 English thread (straight exit) ├─ 10 = 1.0m (3.3ft) total length ├─ 00 = High-temp FluidLoc cable (no armor) └─ 00 = No agency approvals
Key Technical Specs
- Brand: Bently Nevada
- Model: 330876-01-10-00-00
- Thread: ½-20 English (0.750in max engagement) – fits English mounting systems
- Length: 1.0m (3.3ft) – ideal for compact machinery
- Resistance: 6.4Ω ±0.5Ω (1m cable) – low signal loss
- Material: AISI 304 SST case + PPS tip (heat/corrosion resistant)
- Temp Range: -35°C to +200°C (continuous) | +250°C (short-term, <24hrs)
- Cable: 75Ω triaxial PFA-insulated FluidLoc (prevents oil/water ingress)
Comparison with Similar Models
| Model | Length | Thread Type | Armor | Certifications | Product Link |
|---|---|---|---|---|---|
| 330876-03-90-00-00 | 9.0m | Smooth (no thread) | No | No | View |
| 330876-01-90-00-CN | 9.0m | ½-20 English | No | CN-approved | Specs |
| 330876-01-10-00-00 | 1.0m | ½-20 English | No | No | Current Model |
FAQ
Q: Can I use this with 5m Proximitor Sensors?
A: No – 1m probes require 1m sensors for optimal signal accuracy.
Q: How to clean the probe tip?
A: Use a dry cloth; avoid solvents to protect PPS material.
Q: What’s the minimum mounting space?
A: 1.99in case diameter fits most standard brackets.
Q: Does it work in freezing temps?
A: Yes – operates down to -35°C (-31°F).
Installation & Compatibility
Install using ½-20 English threads (0.750in max engagement). Works with 1m 3300 XL Proximitor Sensors. Removable cable collar helps route through narrow gaps. Includes locknut with safety wire holes for secure mounting.
Package & Shipping
- 1x 330876-01-10-00-00 probe
- 1m FluidLoc cable
- Connector protectors + installation tool
- Quick-start manual
Warranty: 12 months factory coverage. Shipping: FedEx, UPS, DHL (3-5 days worldwide).
