Description

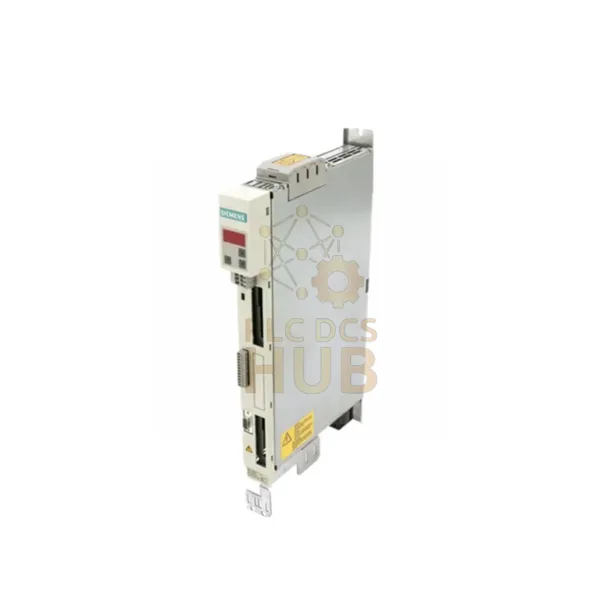

Siemens SIMOVERT 6SE7014-0TP60-Z: 1.5kW Vector Control Inverter
Note: Obsolete product – recommended for legacy system maintenance only. Compact vector drive with 1.5kW motor control and DC input capability for industrial applications.
⚙️ Core Specifications
| Manufacturer/Series | Siemens SIMOVERT MASTERDRIVES |
| Model | 6SE7014-0TP60-Z |
| Status | Obsolete (Legacy Support) |
| Power Rating | 1.5 kW (2 HP) |
| Output Current | 4A |
???? Electrical Characteristics
- Input Voltage: 510-650V DC
- Control Type: Vector drive technology
- Frequency: 50/60 Hz compatible
- Protection: IP20 (requires enclosure)
???? Physical Specifications
- Dimensions: 185x185x150 mm (7.3″x7.3″x5.9″)
- Weight: 3.4 kg (7.5 lbs)
- Cooling: Convection cooling (fanless design)
???? Model Comparison
| Model | 6SE7014-0TP60-Z | 6SE7012-0TP50-Z | 6SE7013-0EP70-Z |
| Power Rating | 1.5 kW | 0.75 kW | 1.1 kW |
| Output Current | 4A | 2A | 3A |
| Input Type | DC (510-650V) | AC (480V) | AC (480V) |
| Dimensions | 185x185x150mm | 395x300x170mm | 185x185x150mm |
⚠️ Critical Installation Notes
- DC Bus Requirement: Requires external DC power supply unit
- Clearance: 100mm minimum space above/below for cooling
- EMC Compliance: Must be installed in grounded metal cabinet
???? Shipping & Packaging
- Packaging: Anti-static box with foam protection
- Weight: 4.2 kg (shipping weight)
- Carriers: FedEx, UPS, DHL Priority
- Lead Time: 5-7 business days
???? Industrial Applications
- DC-powered conveyor systems
- Backup power drive systems
- Test bench motor control
- Retrofit projects for SIMOVERT DC-bus architectures
