Description

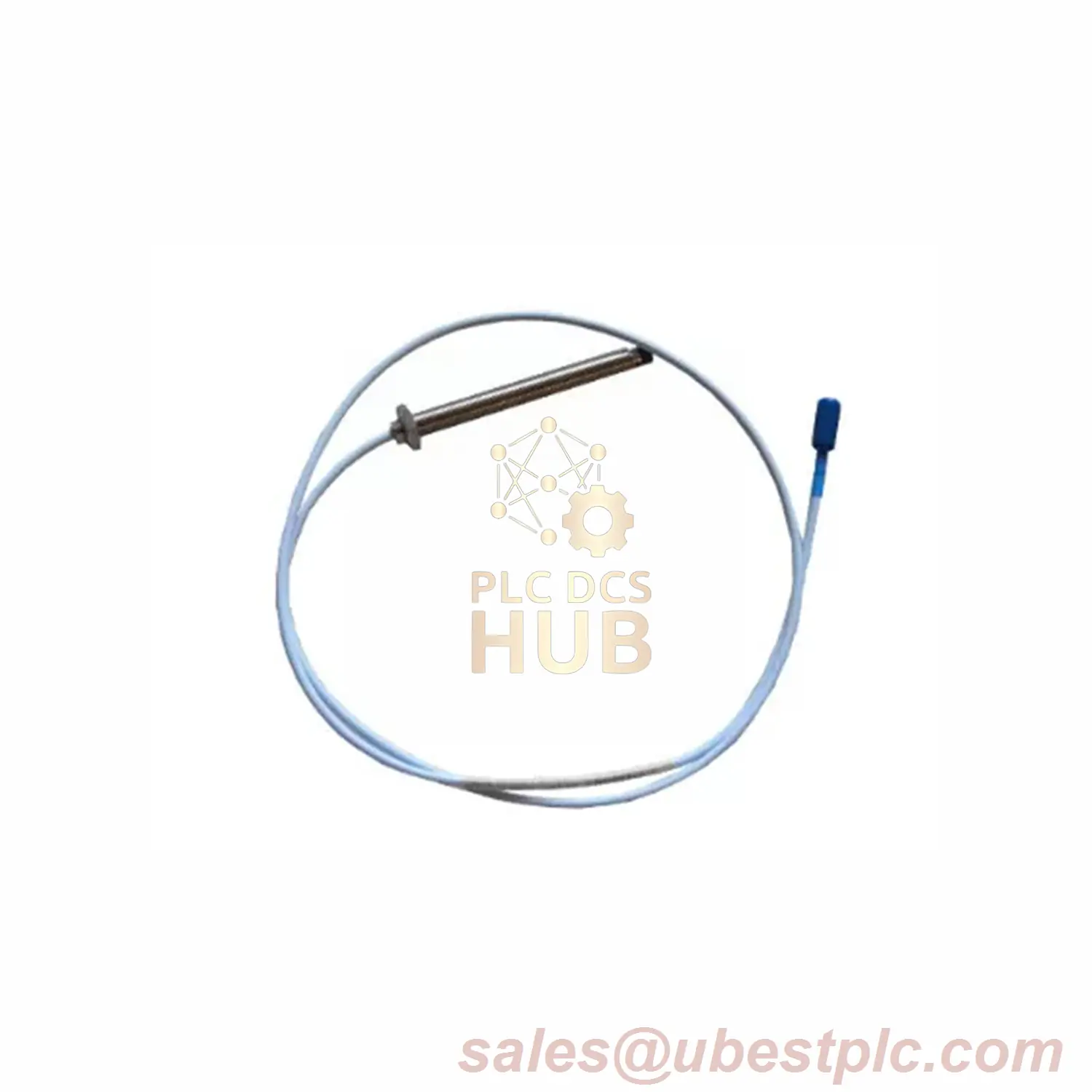

Bently Nevada 3300 XL Extended-Reach Proximity Probe
160mm long-body sensor with 5m integrated cable, 330103-00-16-50-02-00 is engineered for deep-mount applications in heavy industrial environments.
Technical Specifications for 330103-00-16-50-02-00
- Suffix Decode: 00(No Thread)/16(160mm)/50(5m)/02(ClickLoc)/00(No Cert)
- DC Resistance: 8.73Ω ±0.50 @5m length
- Frequency Response: ±1dB (2Hz-12kHz)
- Housing Penetration: 145mm maximum
Performance Features
- Enhanced EMI/RFI shielding (40dB attenuation)
- Axial load capacity: 150N continuous
- Dielectric strength: 1500VAC (1 minute)
Installation Parameters
- Optimal mounting depth: 120-140mm
- Radial clearance tolerance: ±0.08mm
- Cable retention force: >50N pull-out resistance
Industrial Applications
- Oil drilling platform mud pump monitoring
- Steel mill rolling mill bearing analysis
- Nuclear plant coolant pump vibration tracking
Critical Notice: Requires 5m-specific Proximitor® (PN: 330180-50-00)
Contact sales@ubestplc.com for deep-mount installation templates
Environmental Compliance
- MIL-STD-810G vibration certified
- ISO 12944-6 C4 corrosion resistance
- Operational altitude: 0-5000m ASL
Technical support: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
