Description

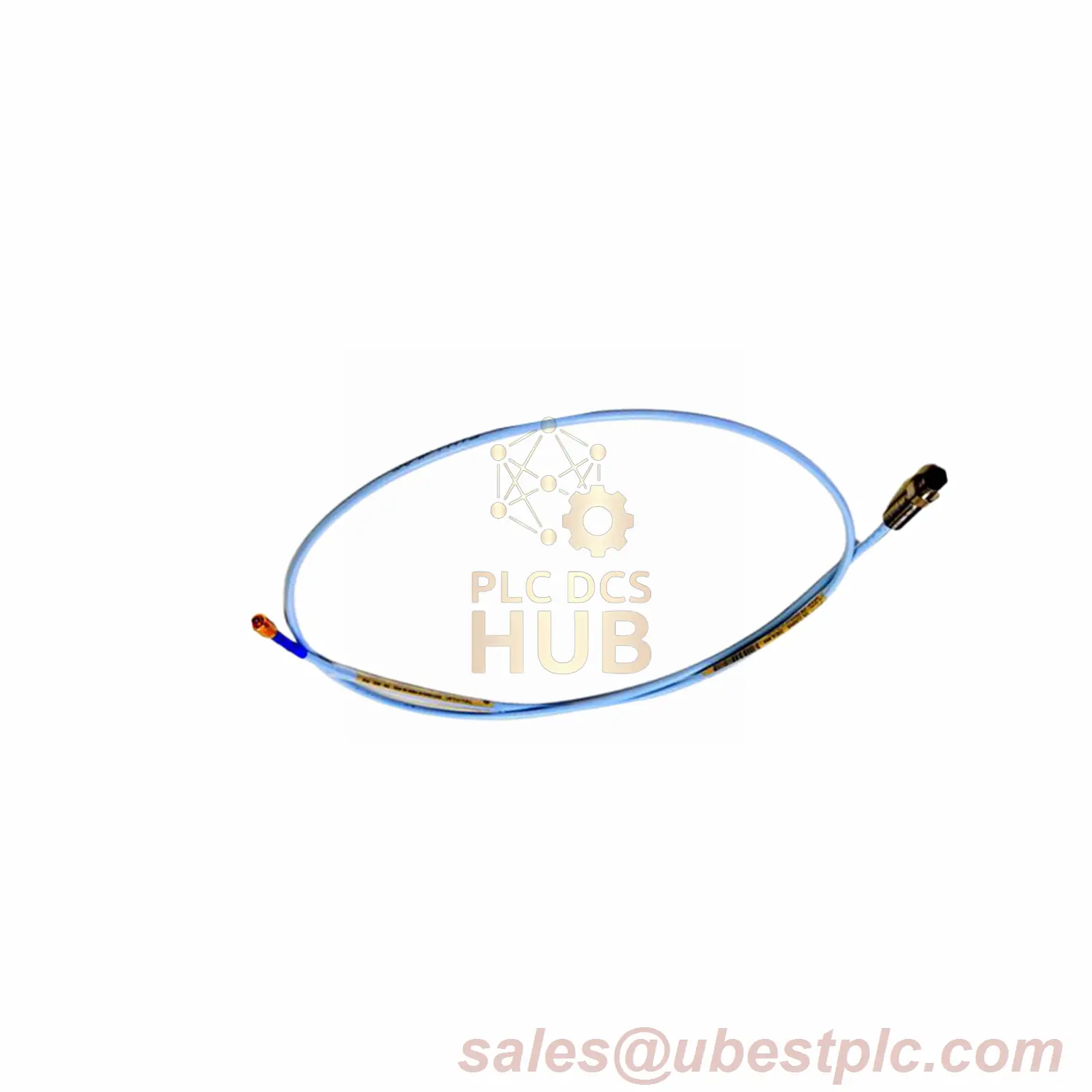

Bently Nevada 3300 XL Compact Proximity System
Ultra-short 30mm housing with 5m heavy-duty cable, 330103-00-03-50-02-00 is engineered for space-constrained installations requiring long-reach sensing capabilities.
Configuration Matrix for 330103-00-03-50-02-00
- Suffix Structure
- 00 (0mm Unthreaded) | 03 (30mm Case) | 50 (5m Cable) | 02 (ClickLoc) | 00 (No Cert)
- Core Technicals
- 8.73Ω ±0.5 Resistance @5m | 0.25-2.3mm Linear Range | -52°C to +218°C Operation
Advanced Specifications
- Shock Rating: 100g peak (11ms)
- Phase Response: ±3° (2-10kHz)
- Cable Flexibility: -40°C bend radius
- EMC Compliance: EN 61326-1
- Housing Finish: 0.8μm Ra SS surface
- Cable Jacket: PUR Oil-resistant
Mounting Profile
| Parameter | Value |
| Max Installation Depth | 25mm |
| Radial Clearance | 0.5-1.5mm |
| Cable Strain Relief | >200N |
Industry Applications
- Robotic arm position feedback systems
- Beverage canning line shaft monitoring
- Semiconductor wafer handling robots
System Integration
- Requires 330180-50-00 Proximitor®
- Compatible with 1900/65A extension cables
- MTBF: 250,000 hours @40°C
Technical support: sales@ubestplc.com
Custom configurations available for high-vacuum environments
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
