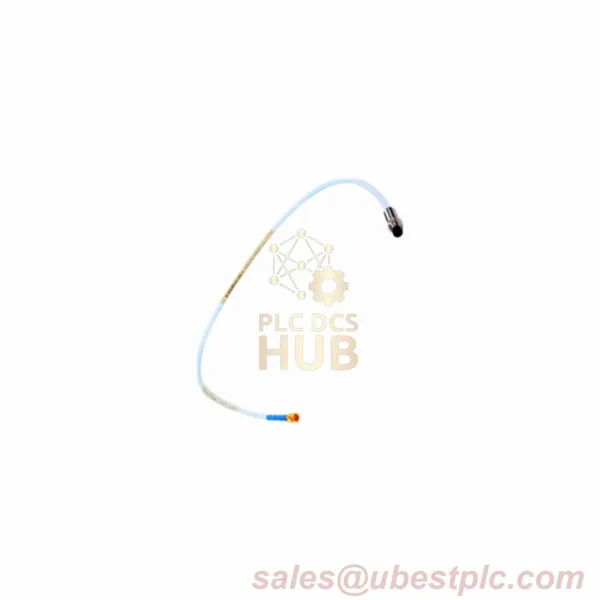

Bently Nevada 3300 XL 8 mm Proximity Probe
Description: The 3300 XL 8 mm Proximity Probe by Bently Nevada is engineered for high-precision vibration and displacement measurement in demanding industrial environments. Featuring an extended 140 mm stainless steel case, M10x1 threading, and a PPS probe tip, this variant is tailored for applications requiring **country-specific certifications (CN)**. Ideal for heavy machinery and critical infrastructure, 330103-00-14-10-02-CN ensures reliability with **Viton® O-ring seals** and compatibility with intrinsically safe systems.
Technical Data
- Brand: Bently Nevada
- Model: 330103-00-14-10-02-CN
- Suffix Breakdown:
- 00: Unthreaded Length (0 mm)
- 14: Case Length (140 mm)
- 10: Cable Length (1.0 m)
- 02: Miniature Coaxial ClickLoc Connector
- CN: Country-Specific Approvals
- Measurement Range: 0.25–2.3 mm (10–90 mils)
- Accuracy: ±0.50 Ω DC Resistance at 1.0 m
- Output Signal: Linear -1 to -17 Vdc
- Operating Temp: -52°C to +177°C (Standard Probe)
- Cable Resistance: 7.59 Ω ±0.50 (1.0 m)
- Thread Engagement: Max 15 mm (M10x1)
- Weight: 323 g/m (11.4 oz)
Installation Guidelines
- Pressure Seal: Viton® O-ring (custom pressure testing available on request)
- Field Wiring: Use 3-conductor shielded triad cable (0.2–1.5 mm² / 16–24 AWG)
- Max Distance: 305 m (1,000 ft) between probe and monitor
- Gap Setting: Optimize radial vibration at -9 Vdc (~1.27 mm / 50 mils)
Compatibility
- Integrates with 3300 XL Proximitor Sensors and ClickLoc connectors
- Supports intrinsic safety (ia) and nonincendive (nA/ec) configurations
Certifications
- Country-Specific (CN): Compliant with regional hazardous zone standards
- Hazardous Area Ratings: Class I/II/III, Groups A–G, Zones 0/2
Application Examples
Petrochemical refinery pump health monitoring, steel mill rolling mill bearing analysis, marine propulsion shaft alignment verification.
