Description

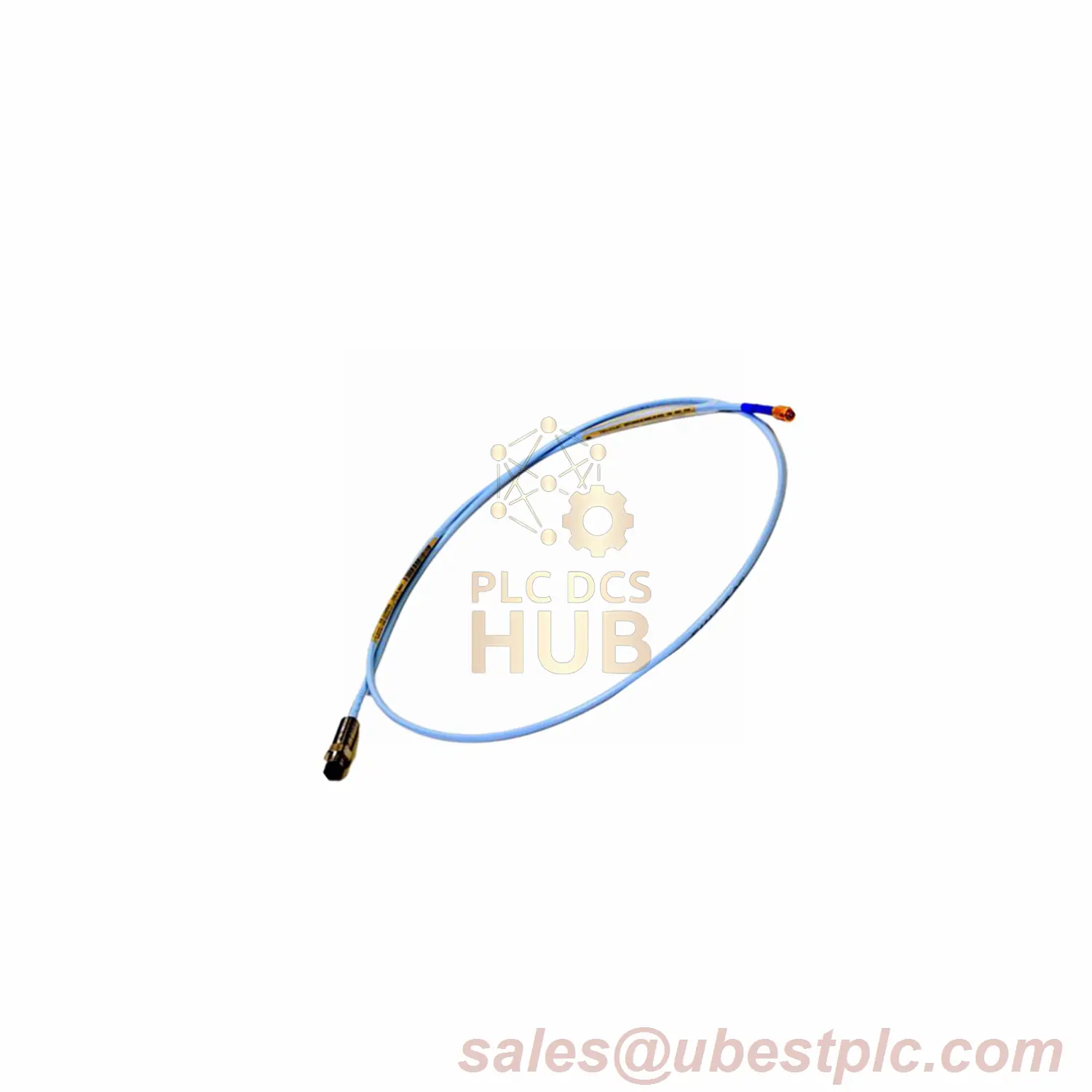

Bently Nevada 3300 XL Hazardous Area Proximity Probe
330103-00-05-50-02-05: ATEX/CSA-certified 5m solution for explosive environments, combining 50mm housing with extended cable reach in Zone 0/1 areas.
Configuration Profile for 330103-00-05-50-02-05
- Suffix Elements
- 00 (Unthreaded) | 05 (50mm) | 50 (5m) | 02 (ClickLoc) | 05 (Tri-Certified)
- Critical Parameters
- 8.73Ω ±0.5 @5m | -52°C to +218°C | 0.25-2.3mm Detection
Certification Details
- ATEX: II 2G Ex ia IIC T4
- CSA: Class I Div 1 Groups ABCD
- IECEx: Ex ia IIC T4 Ga
Performance Features
- 2kV isolation voltage
- IP68 when connector engaged
- 50m/s² vibration resistance
- 0.05mm repeatability
- ±2% temp coefficient
- 500+ mating cycles
Installation Matrix
| Parameter | Value |
| Max Cable Bend Radius | 35mm |
| Thread Engagement | 12-15mm |
| Sealing Pressure | 1.5 bar differential |
Industry Applications
- Offshore drilling BOP control systems
- Paint spray booth conveyor monitoring
- Grain silo rotating machinery
Compliance Notice: Requires certified barriers per drawing 141092
Contact sales@ubestplc.com for Ex documentation packages
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
