8 mm Proximity Probe – M10 Thread 330103-00-05-50-02-CN

Description

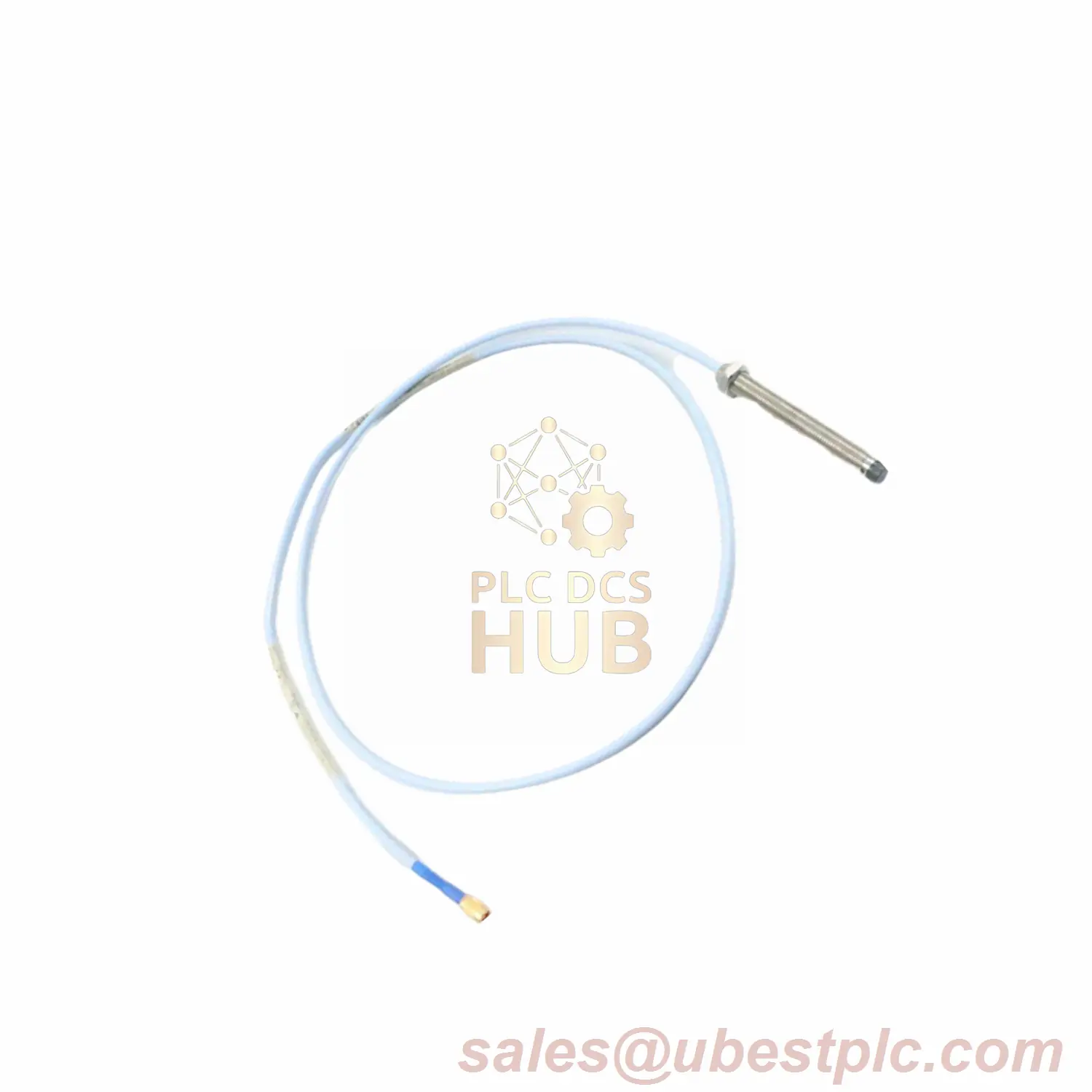

Bently Nevada 3300 XL Long-Range Proximity Probe 330103-00-05-50-02-CN

Model: 330103-00-05-50-02-CN

⮞ Critical Specifications

• Brand: Bently Nevada
• Suffix Decoding:
  • 00: 0mm Unthreaded Segment
  • 05: 50mm Case (Optimized Stability)
  • 50: 5.0m Long Cable (16.4 ft)
  • 02: ClickLoc Connector (Triad Shielded)
  • CN: China-Specific Compliance

Performance Metrics

• DC Resistance: 8.73Ω ±0.50 @5.0m (Exclusive to 5m Proximitor)
• Signal Attenuation: <0.5dB/m @10kHz
• Thread Lock: M10x1 with 15mm Engagement
• Cable Shielding: 90% Coverage for EMI/RFI Protection

Environmental Robustness

• Seal Material: Viton® O-Ring (Custom Pressure Tests Available)
• Operating Temp:
  • Probe: -52°C to +218°C
  • Cable: -51°C to +260°C (Industrial-Grade Jacket)
• Crush Resistance: 2000N/m Lateral Load Capacity

Certifications

• GB 3836.1-2010 (China Explosive Atmosphere Standard)
• AEx/Ex ia IIC T5-T1 (Zone 0 Hazardous Areas)

⮞ Industrial Implementations

• Oil Refining: Pump Shaft Monitoring in High-Temperature Catalytic Crackers
• Water Treatment: Impeller Vibration Analysis for Large-Scale Desalination Plants
• Power Generation: Turbine Blade Gap Measurement in Ultra-Supercritical Coal Plants

Support & Warranty

• Package: Probe, 5.0m Cable, Compliance Documents
• Warranty: 18 Months (Extended for Heavy Industries)
• Contact: sales@ubestplc.com for 5m Proximitor Pairing Guidance

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
