Description

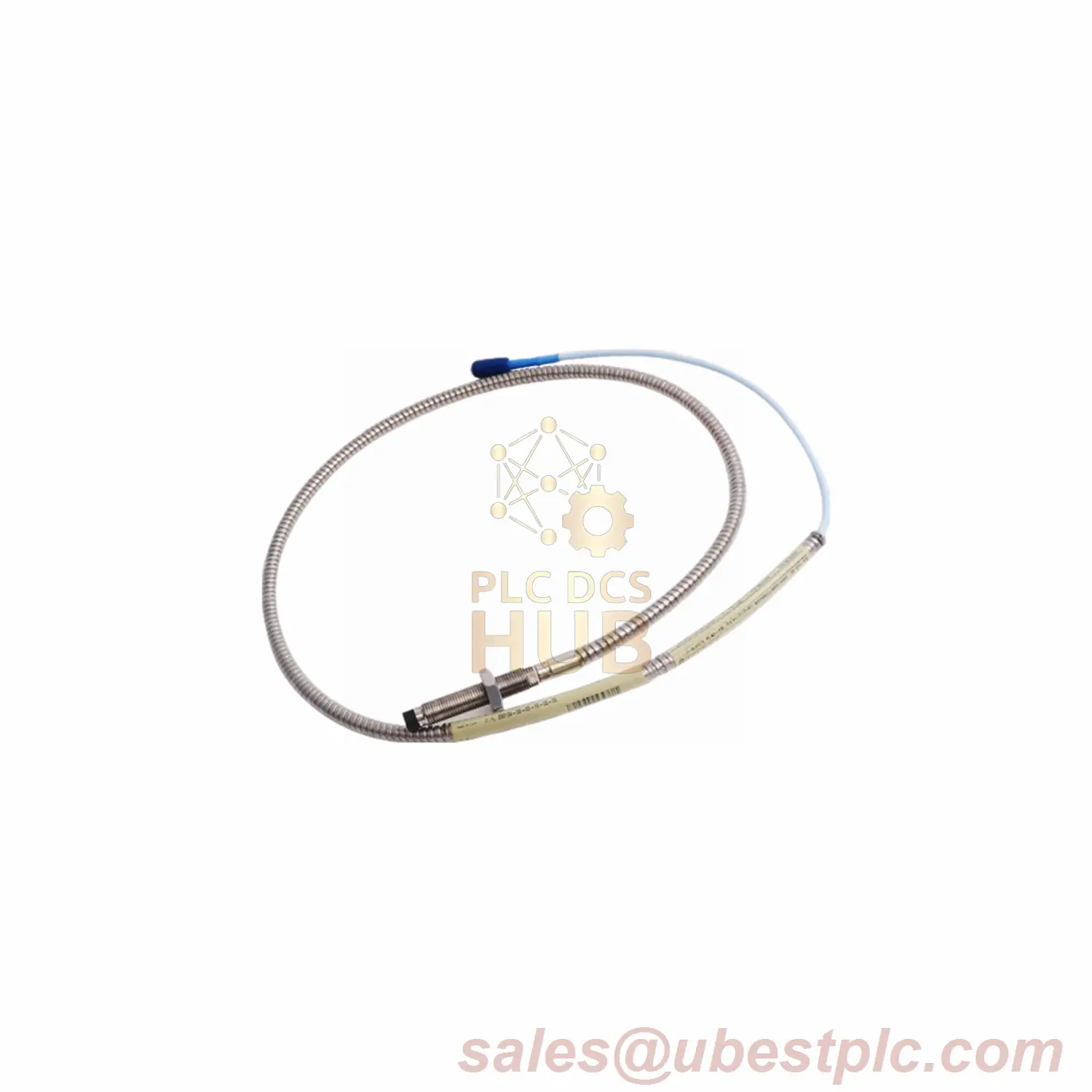

Bently Nevada 3300 XL Proximity Probe
Model: 330103-00-06-05-02-IN
Technical Profile
- Manufacturer: Bently Nevada
- Suffix Analysis for 330103-00-06-05-02-IN:
- 00: Zero Unthreaded Length
- 06: 60mm Case (Balanced Design)
- 05: 0.5m Cable (Short-Range Deployment)
- 02: ClickLoc Connector (Standard Triad Cable)
- IN: India-Specific Compliance
Operational Specifications
- Resistance: 7.45Ω ±0.50 @0.5m Cable
- Signal Stability: ±0.8% Output Deviation Over Lifetime
- Thread Strength: M10x1 with 15mm Max Engagement
- Cable Jacket: UV-Resistant for Outdoor Installations
Environmental Compatibility
- Pressure Seal: Viton® O-Ring (Custom Testing Available)
- Temperature Limits:
- Probe: -52°C to +218°C
- Cable: -51°C to +260°C (Extended Duty)
- IP Rating: Equivalent to IP65 with Proper Mounting
Certifications
- AEx/Ex ec IIC T5-T1 (Zone 2)
- IN Certification (BIS/ATEX India Alignment)
Sector-Specific Applications
- Hydropower: Turbine Shaft Monitoring in High-Humidity Dams
- Textile Machinery: Spindle Vibration Control in High-Speed Looms
- Solar Energy: Tracking System Health in Megawatt Solar Farms
Support Details
- Package: Probe, 0.5m Cable, Compliance Certificates
- Warranty: 12 Months (Industrial-Grade Coverage)
- Contact: sales@ubestplc.com for IN Certification Proof
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
