Description

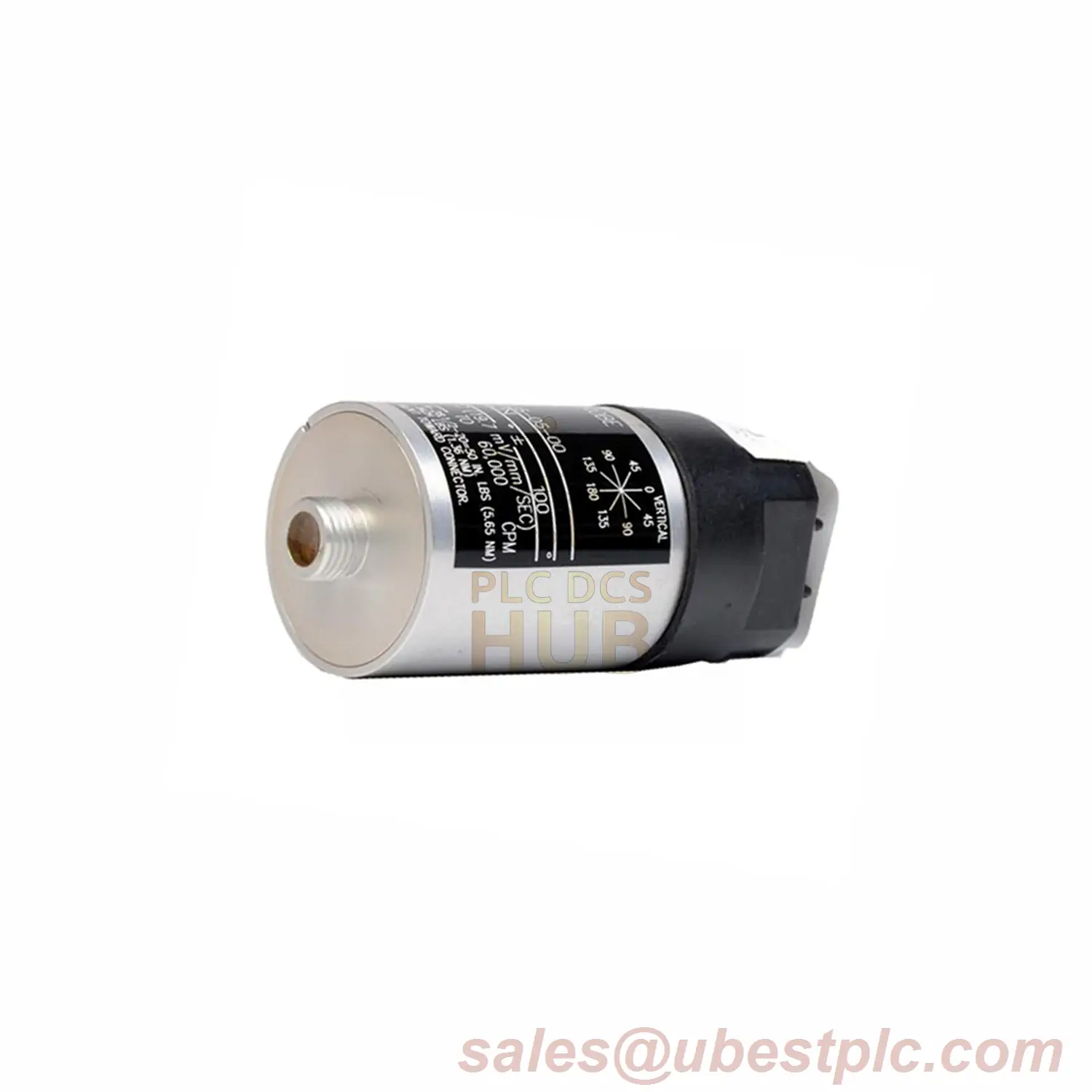

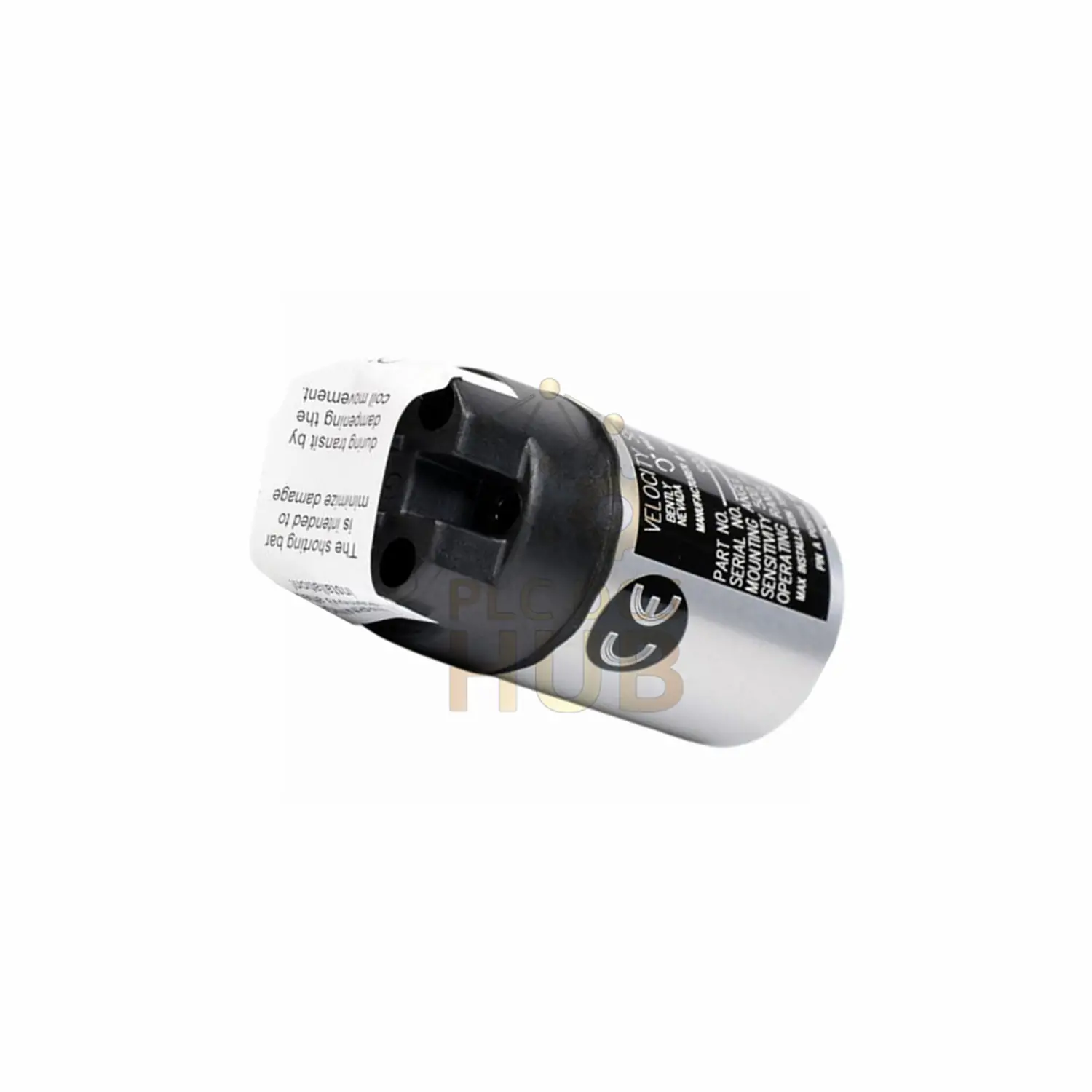

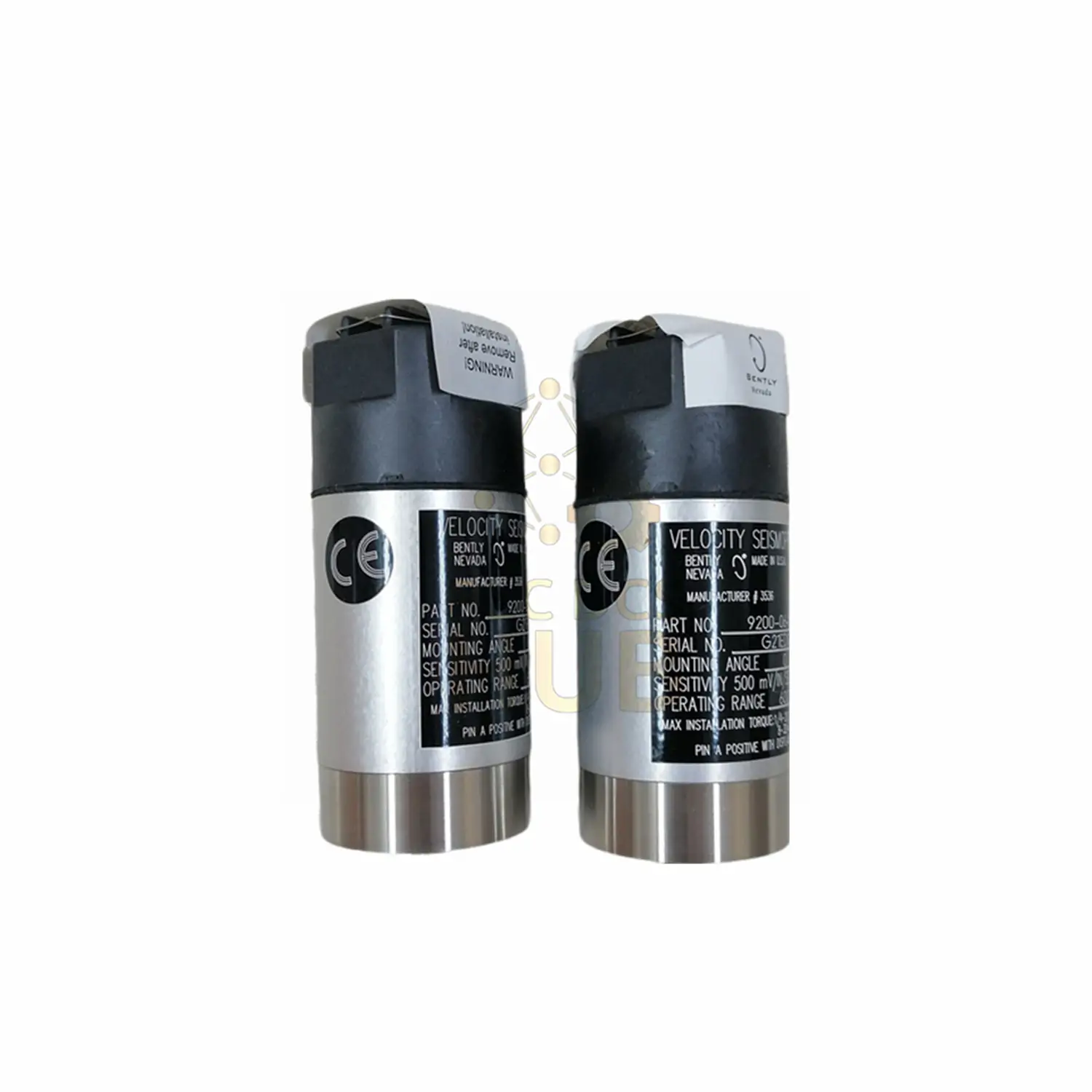

Bently Nevada 9200-03-06-10-00 Precision Vibration Monitor
Model Code Structure
- 9200
- 03 – 90°±2.5° Mount
- 06 – Terminal Block
- 10 – M10X1 Stud
- 00 – Standard Version
Industrial Applications
- Agricultural Machinery: Detects combine harvester rotor imbalance
- Solar Trackers: Monitors dual-axis solar panel drives
- Package Sorting: Identifies conveyor roller defects in logistics hubs
Key Specifications for 9200-03-06-10-00
| Frequency Range | 4.5Hz-100Hz |
| Temperature Range | -29°C to +121°C |
| Output Signal | 20mV/mm/s ±5% |
| Max Vibration | 25mm/s peak |
Model Comparison
- vs 9200-09-01-02-01: Fixed 90° vs 360° mount
- vs 9200-01-01-01-00: M10X1 vs 1/4-20 base
Installation Guide
- Secure with M10X1 hardware (8Nm torque)
- Keep within 2.5° of 90° angle
- Connect to terminals A/B
- Use 18-22 AWG copper wire
Expert Q&A
- Q: Can it monitor slow-rotating equipment?
A: Yes – detects down to 4.5Hz (270CPM) - Q: Compatible with 24VDC systems?
A: Works with 10-30VDC power - Q: Impact resistant?
A: Withstands 5G mechanical shock
Maintenance Tips
- Check terminal tightness every 6 months
- Replace gasket after 3 years
- Clean with dry compressed air
