Description
Overview

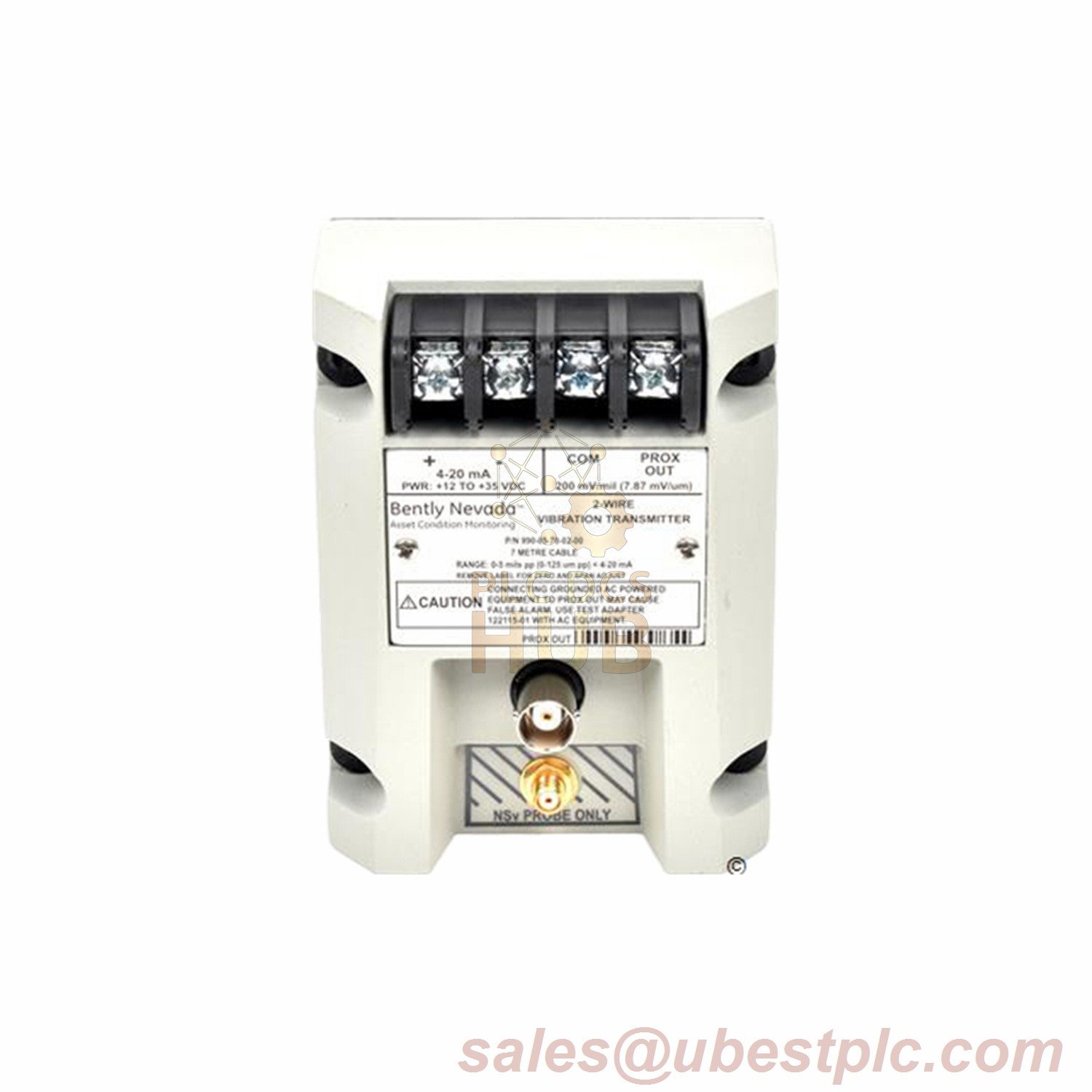

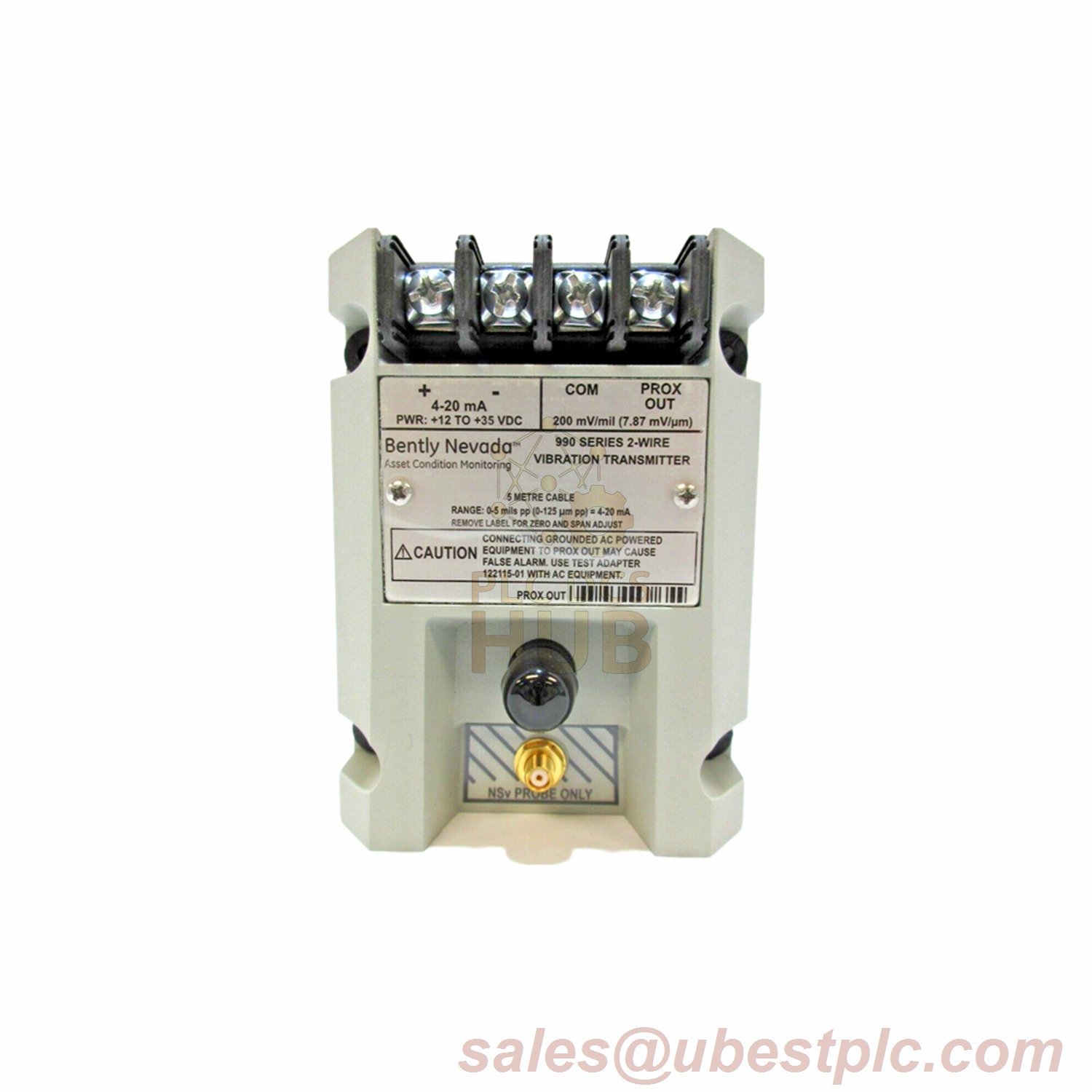

The Bently Nevada 990 Vibration Transmitter (Product No: 990-04-50-01-CN) is designed for precise monitoring of vibration levels. Manufactured in the USA, it is built to work seamlessly with the 3300 NSv Proximity Probe. This device offers high accuracy in measuring vibration through a 4-20 mA output signal, making it ideal for industrial applications that require reliable and continuous monitoring. It can be configured with several options, including full-scale range, system length, and mounting, to meet the specific needs of your application.
Technical Data:
| Specification | Value |
|---|---|
| Brand | Bently Nevada |
| Model | 990 Vibration Transmitter |
| Product No. | 990-04-50-01-CN |
| Made In | USA |
| Full-Scale Range | 0-4 mils pp (0-100 µm pp) |
| System Length | 5.0 meters (16.4 feet) |
| Mounting Option | 35 mm DIN rail clips |
| Agency Approval | CN – Chinese Country Specific |
| Input | Accepts 1 non-contacting 3300 NSv Probe |
| Power | +12 to +35 Vdc input |
| Signal Output | 4-20 mA |
| Accuracy | ±1.5% over specified range |
| Probe Gap | 0.5 to 1.75 mm |
| Temperature Range | -35°C to +85°C (-31°F to +185°F) |
| Weight | 0.43 kg (0.9 lbm) |
| Dimensions | 100 x 73.9 x 53.3 mm |
