Description
Overview:

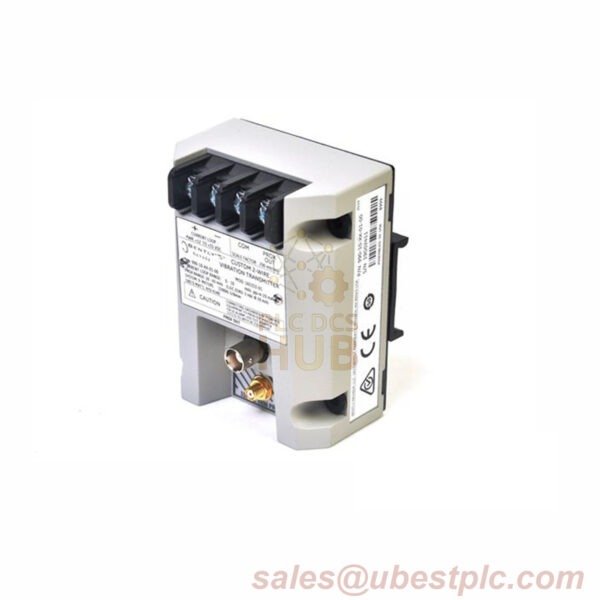

The Bently Nevada 990 Vibration Transmitter (Product No. 990-04-70-01-00) is an advanced vibration measurement device designed to provide precise and reliable vibration monitoring for various industrial applications. Manufactured in the USA, this transmitter integrates with a 3300 NSv Proximity Probe to measure vibrations and convert them into an easy-to-read 4-20 mA output signal. With its broad range of features, the 990 Vibration Transmitter ensures consistent performance even in harsh environments, making it ideal for vibration monitoring in critical machinery. Certificate of Origin (COO) can be provided upon request.
Technical Data:
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 990 Vibration Transmitter |
| 990-04-70-01-00 Suffix | 04 = 0-4 mils pp (0-100 µm pp) |
| 70 = 7.0 meters (23.0 feet) | |
| 01 = 35 mm DIN rail clips | |
| 00 = Agency approval not required | |
| Input | Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable. |
| Power Supply | Requires +12 to +35 Vdc at the transmitter terminal. |
| Signal Output | 4-20 mA (over specified full-scale range in 2-wire configuration). |
| Loop Accuracy | ±1.5% over specified full-scale range. |
| Probe Gap | Between 0.5 mm (20 mils) and 1.75 mm (55 mils) from target. |
| Maximum Loop Resistance | 1,000 Ω, including cable at 35 Vdc. |
| Current Limiting | 23 mA typical. |
| Zero and Span Adjustments | Non-interacting external adjustments. |
| Temperature Range | Operating: -35°C to +85°C (-31°F to +185°F), Storage: -52°C to +100°C (-62°F to +212°F). |
| Weight | 0.43 kg (0.9 lb) |
| Dimensions | 100 x 73.9 x 53.3 mm |
For inquiries, please contact us at sales@ubestplc.com.
