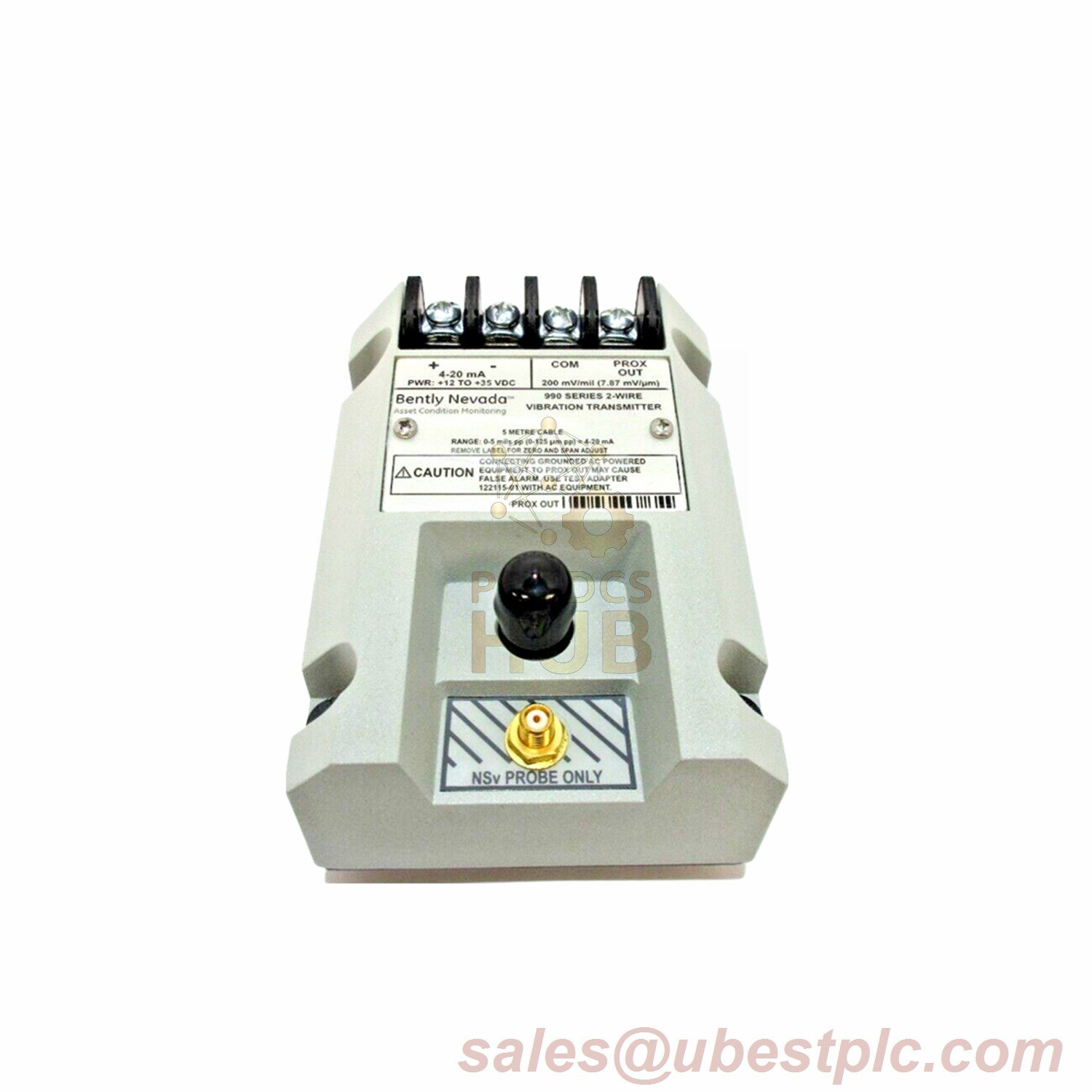

The Bently Nevada 990-05-50-01-05 is a 2-wire vibration transmitter designed to provide continuous vibration monitoring. It is compatible with the 3300 NSv Proximity Probe and extension cables, making it perfect for vibration measurement and monitoring in industrial settings. With a 5.0-meter system length and 35 mm DIN rail clips for mounting, the device is both versatile and easy to install. It offers a 4-20 mA signal output and features excellent temperature stability across a wide operating range of -35°C to +85°C.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 990-05-50-01-05 |
| Full-Scale Option | 0-5 mils pp (0-125 µm pp) |
| System Length Option | 5.0 meters (16.4 feet) |
| Mounting Option | 35 mm DIN rail clips |
| Agency Approval Option | CSA Division 2, ATEX Zone 0, Zone 2, ABS Maritime Approval |
| Minimum Target Size | 9.5 mm (0.375 in) diameter |
| Power Supply | +12 to +35 Vdc |
| Loop Resistance | 1,000 Ω (max) |
| Zero and Span Adjustment | Non-interacting external adjustments |
| Operating Temperature | -35°C to +85°C (-31°F to +185°F) |
| Storage Temperature | -52°C to +100°C (-62°F to +212°F) |
| Weight | 0.43 kg (0.9 lb) |
| Dimensions | 100 x 73.9 x 53.3 mm |
990-05-50-01-05 Suffix Information
The suffix of the product number reflects specific configuration options:
- 05: Full-scale range of 0-5 mils pp (0-125 µm pp).
- 50: System length of 5.0 meters (16.4 feet).
- 01: Mounting option with 35 mm DIN rail clips.
- 05: Agency approval for CSA Division 2, ATEX Zone 0 and 2, and ABS maritime approval.
