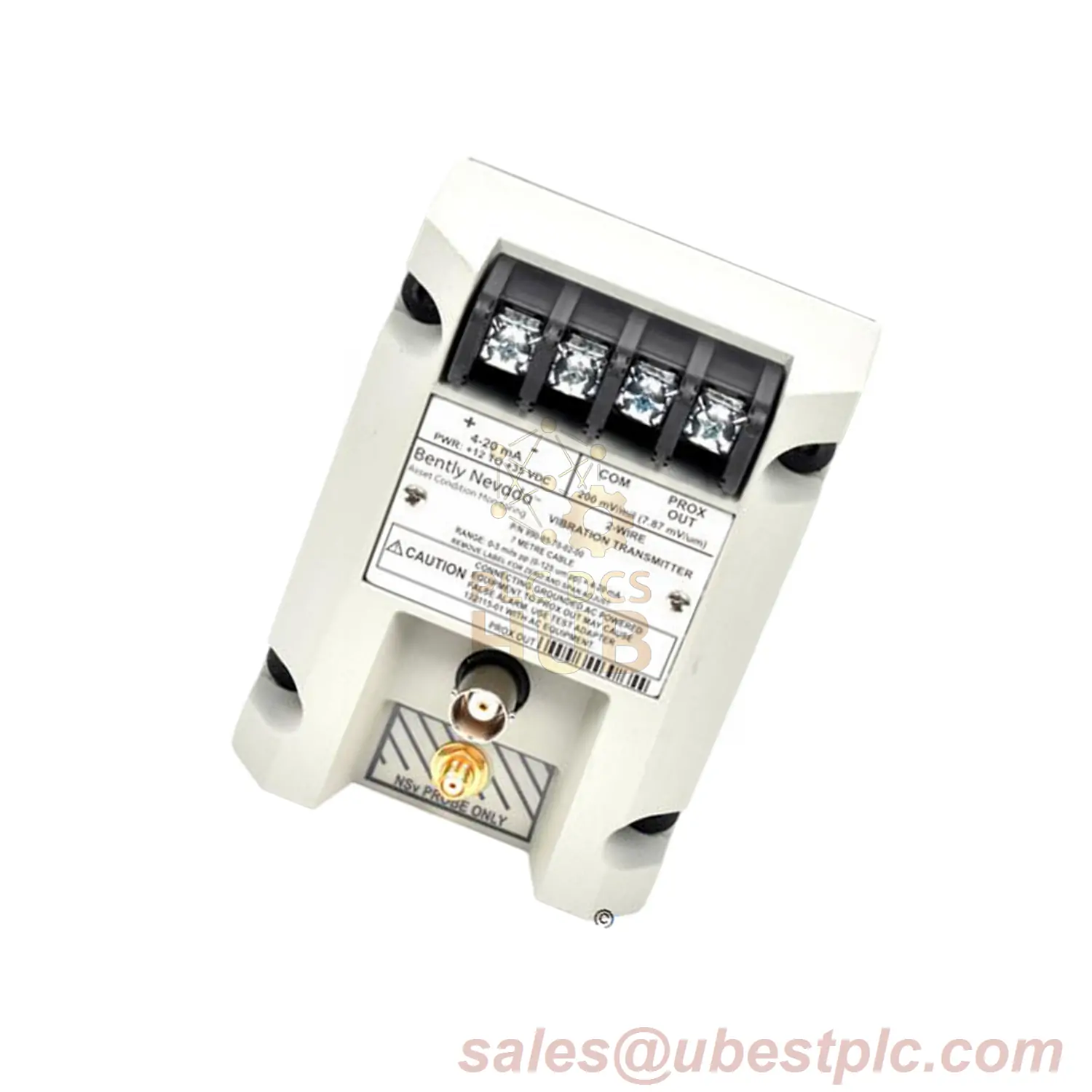

Bently Nevada 990-08-70-02-01: Rugged Vibration Monitoring, Redefined
???? Why This Transmitter?
Built for harsh industrial environments, the 990-08-70-02-01 delivers precise vibration data using 3300 NSv Probes. Features bulkhead screw mounting and explosion-safe certification for demanding applications.
???? Core Specifications
| Range | 0-8 mils pp (0-200 μm) |
| Accuracy | ±1.5% full scale |
| Mounting | Bulkhead screws (no rails needed) |
| Hazard Rating | CSA Division 2 Certified |
| Output | 4-20 mA (2-wire) |
⚡ Fast Facts
- Install in minutes with bulkhead screws.
- Works in -40°C to +85°C temperatures.
- Detects faults in 100 microseconds (output drops to 3.6 mA).
- Weighs only 0.43 kg – lighter than a tablet!
???? Setup Simplified
- Secure with bulkhead screws (no DIN rail).
- Connect to 12-35 Vdc power.
- Attach 3300 NSv Probe (max 3m cable).
???? Global Ready
- 12-month warranty
- Shipped via FedEx/UPS/DHL in 3 days
- Made in USA ???????? (COO available)
???? FAQ Snapshots
Q: Bulkhead vs. DIN rail?
A: Bulkhead screws allow direct panel mounting – no rails required.
Q: Min. target size?
A: 9.5 mm diameter (smaller than a dime).
???? What’s Inside?
- 1x Transmitter
- Bulkhead screw kit
- Optional COO document
