Description
Precision Monitoring for Industrial Machinery
Description

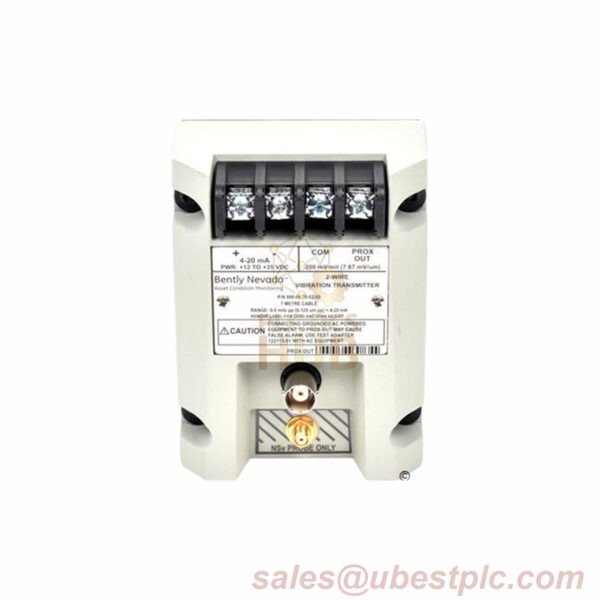

The Bently Nevada 990-10-50-03-00 is a high-performance 4-20 mA vibration transmitter designed for continuous monitoring of rotating machinery. It integrates a 3300 NSv Proximity Probe to measure vibration (0-10 mils pp / 0-250 μm pp) with ±1.5% accuracy.
Technical Data
- Brand: Bently Nevada
- Model: 990-10-50-03-00 (Full Suffix: 10=10 mils, 50=5m cable, 03=DIN clips, 00=No approvals)
- Range: 0-10 mils pp (0-250 μm pp)
- Accuracy: ±1.5% full scale
- Output: 4-20 mA (2-wire)
- Power: +12 to +35 Vdc
- Frequency Response: 5 Hz – 6 kHz
- Weight: 0.43 kg (0.9 lb)
Installation Guide
- Mount using DIN clips and screws.
- Ensure probe gap is 0.5-1.75 mm (20-55 mils) from target.
- Max cable length: 5 meters (16.4 ft).
Compatibility
Works with 3300 NSv Proximity Probes and extension cables. Requires 9.5 mm (0.375″) minimum target size.
Certifications
Approved for Non-Hazardous, Zone 2/Div 2 areas at 28V power.
Package & Warranty
- Includes transmitter, mounting hardware
- 12-month warranty against defects.
Shipping
Fast global delivery via FedEx, UPS, DHL.
Real-World Applications
Used in gas turbines, pumps, compressors for vibration monitoring in oil & gas plants.
FAQ
- Q: Can this work with older 3300 probes? A: Yes, fully compatible.
- Q: Is COO included? A: Added on request.
- Q: Hazardous area rating? A: Zone 2/Div 2 approved.
Compare Models
| Model | Key Differences | Link |
|---|---|---|
| 990-08-50-03-00 | 0-8 mils range, same mounting | View Details |
| 990-10-50-02-00 | 10 mils range, surface mount | View Details |
