Description:

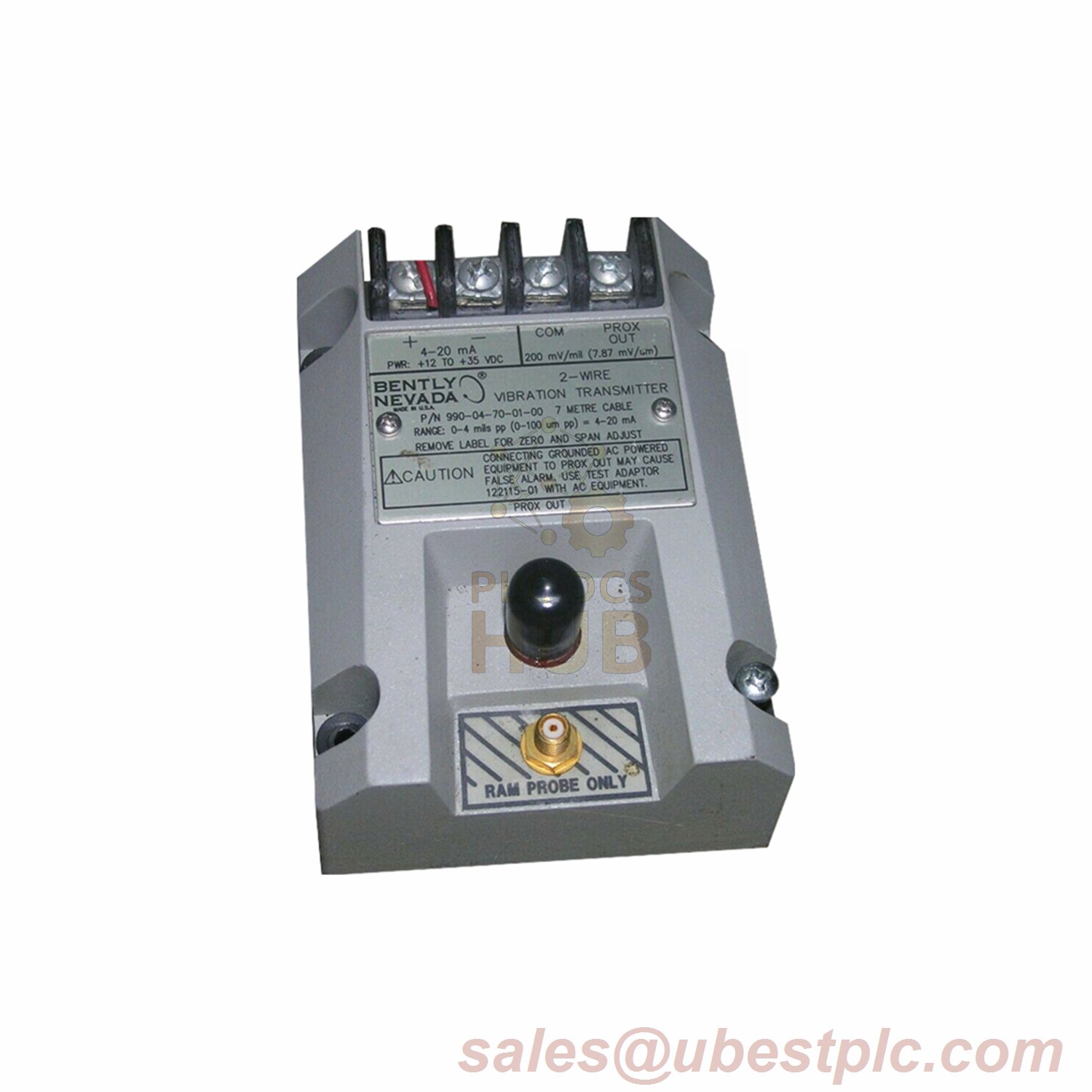

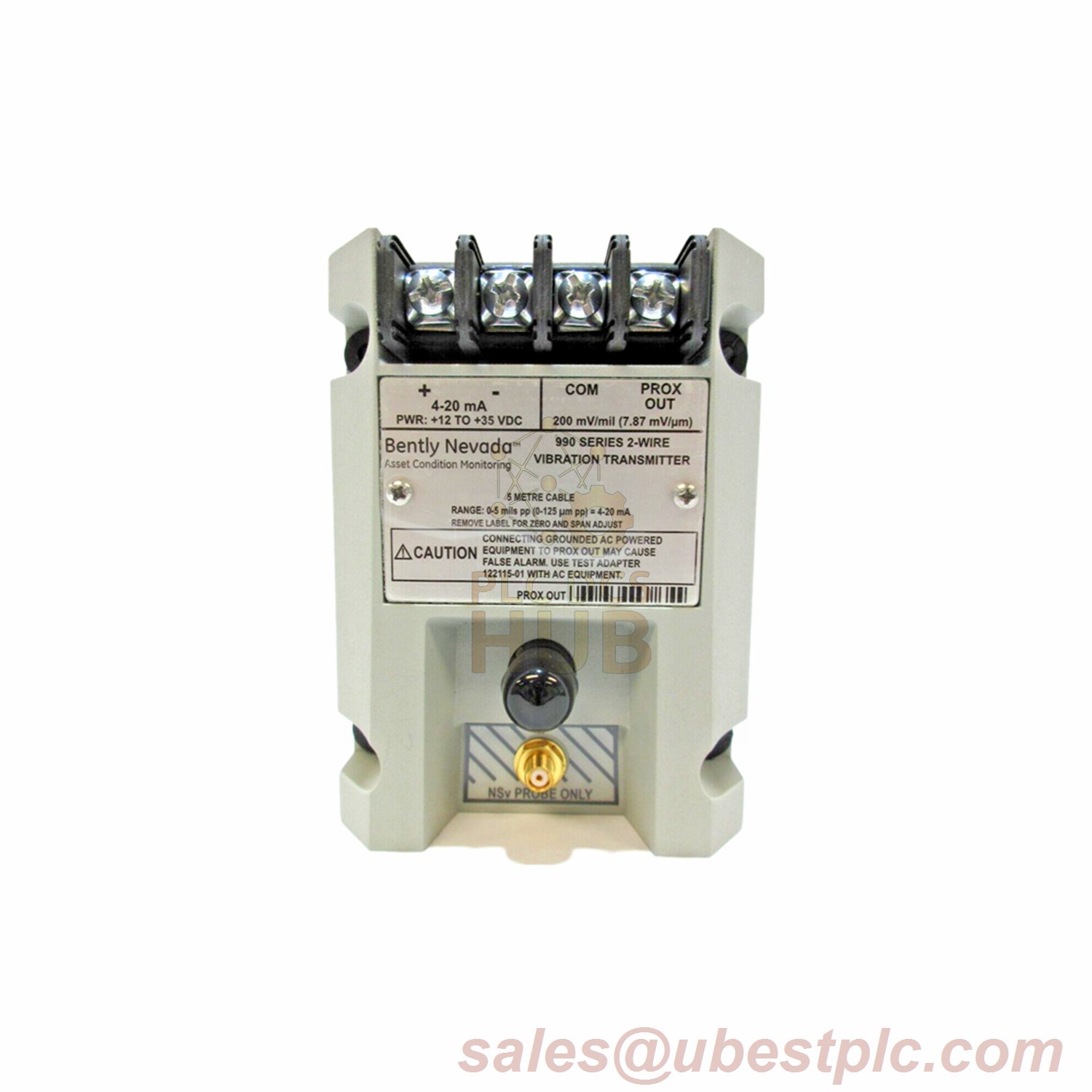

The Bently Nevada 990-05-70-02-CN Vibration Transmitter is a highly reliable and precise device designed for vibration monitoring systems. Manufactured in the U.S.A., this device is ideal for integrating with a 3300 NSv Proximity Probe to measure vibrations in rotating machinery. It offers exceptional accuracy, with a wide range of configuration options to suit various industrial needs. The transmitter ensures optimal performance in non-hazardous and hazardous Zone 2 or Div 2 environments.
Technical Data:
| Feature | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 990 Vibration Transmitter 990-05-70-02-CN |
| Suffix Information | 05: Full-scale Option 0-5 mils pp (0-125 µm pp) 70: System Length 7.0 meters (23 feet) 02: Mounting Option Bulkhead screws CN: Agency Approval, Country Specific (See Reference Guide) |
| Power | +12 to +35 Vdc required at transmitter terminal |
| Signal Output | 4 to 20 mA over the specified full-scale range |
| Accuracy | ±1.5% over full-scale range (including Prox Out Incremental Scale Factor) |
| Probe Gap | 0.5 to 1.75 mm (20 to 55 mils) from target surface to ensure full scale range |
| Maximum Loop Resistance | 1,000 Ω including cable at 35 Vdc |
| Temperature Stability | ±10% of 7.87 mV/µm from 0°C to +70°C (+32°F to +158°F) |
| Frequency Response | 5 Hz to 6,000 Hz ±0, 3 dB |
| Operating Temperature | -35°C to +85°C (-31°F to +185°F) |
| Storage Temperature | -52°C to +100°C (-62°F to +212°F) |
| Dimensions | 100 x 73.9 x 53.3 mm |
| Weight | 0.43 kg (0.9 lbm) |
