Description

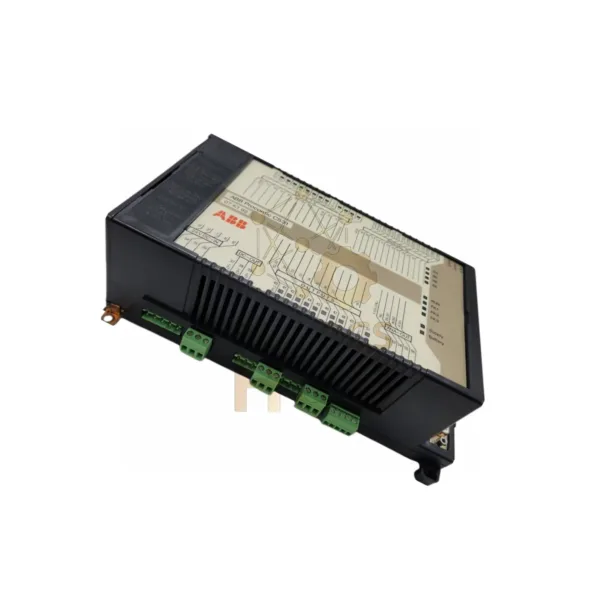

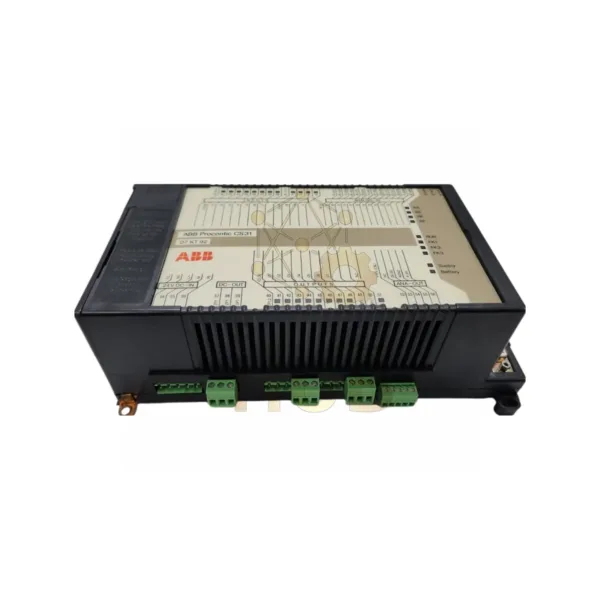

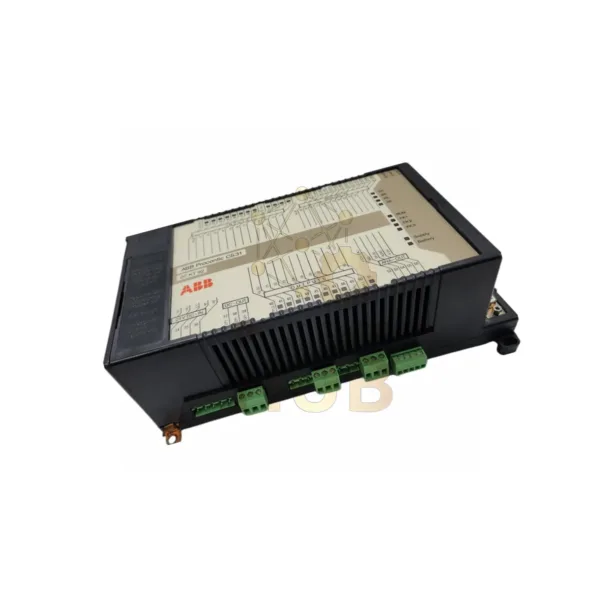

ABB 07KT92 CPU: Compact Industrial Control Unit
Key Features
- 12 digital inputs @24V DC
- 8 transistor outputs (0.5A each)
- 4 analog inputs & 2 analog outputs (12-bit)
- Dual RS232 ports + RS485 system
- Compact design: 25.4 × 10.2 × 15.2 cm
Technical Specifications
- Model: 07KT92 Central Processing Unit
- Power: 24 VDC
- Memory: 14K FLASH EPROM
- Digital Inputs: 12 channels
- Digital Outputs: 8 channels × 0.5A
- Analog I/O: 4 in / 2 out (12-bit)
- Communication: 2× RS232 + RS485
- Weight: 0.7 kg (1.6 lbs)
Industrial Applications
- Small machine control panels
- Laboratory equipment automation
- Parking gate control systems
- Vending machine controllers
- Small conveyor systems
- Research test stands
Installation Notes
- DIN rail mounting compatible
- 24V DC power supply required
- Standard screw terminal connections
- Space-saving compact design
Package Contents
- 07KT92 CPU Unit
- 12-month warranty
Global Shipping
FedEx | UPS | DHL – International Delivery
FAQ
Q: Maximum load per output?
A: 0.5A per digital output channel
Q: Analog signal types?
A: Standard 0-10V/4-20mA signals
Q: Programming software?
A: ABB’s industrial control suite
Q: RS485 termination needed?
A: Yes, standard 120Ω resistor required
Q: Operating temperature range?
A: Standard industrial 0-55°C range
