Description
Product Introduction

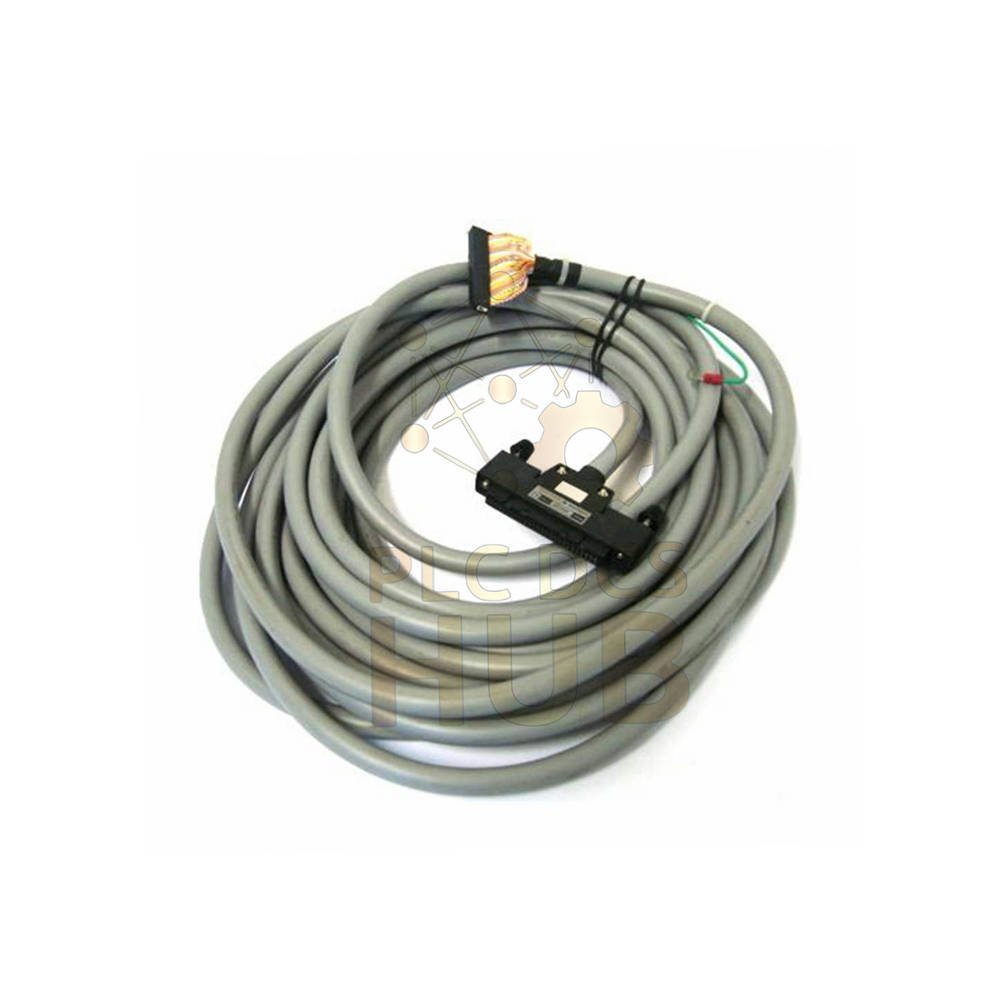

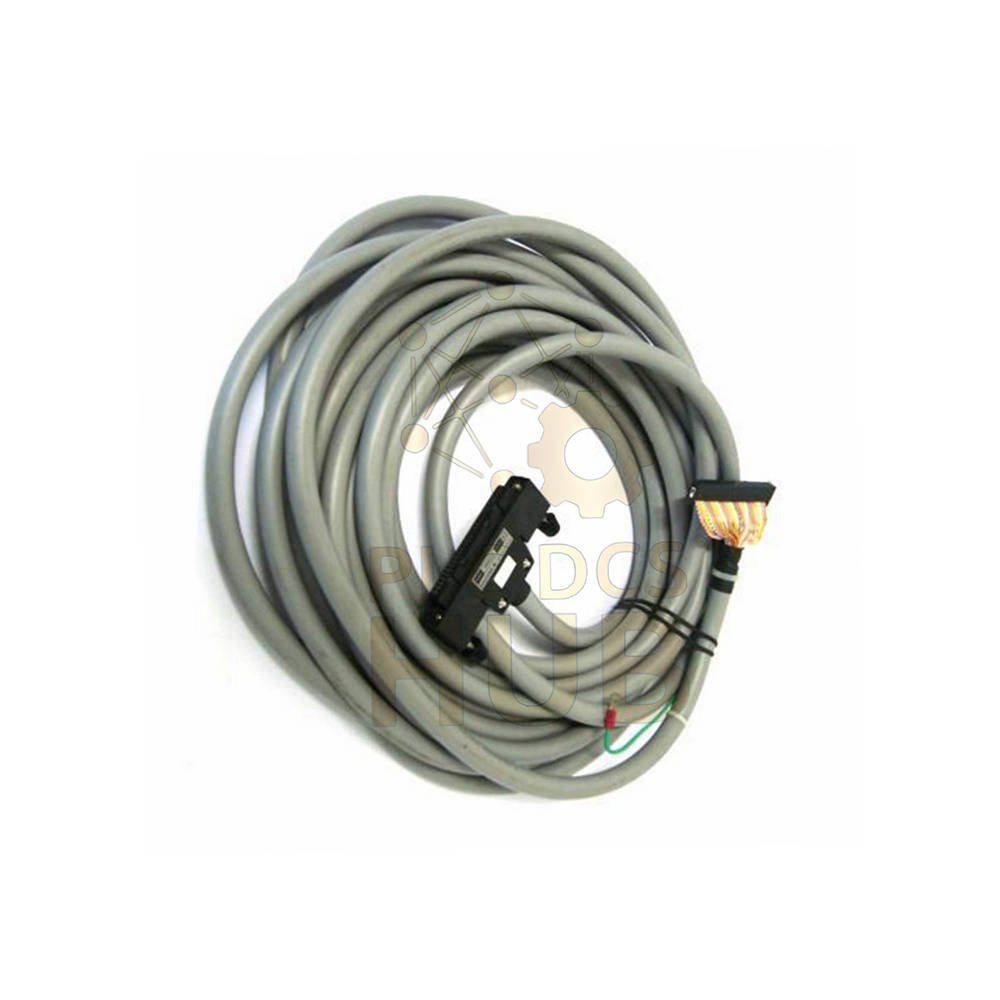

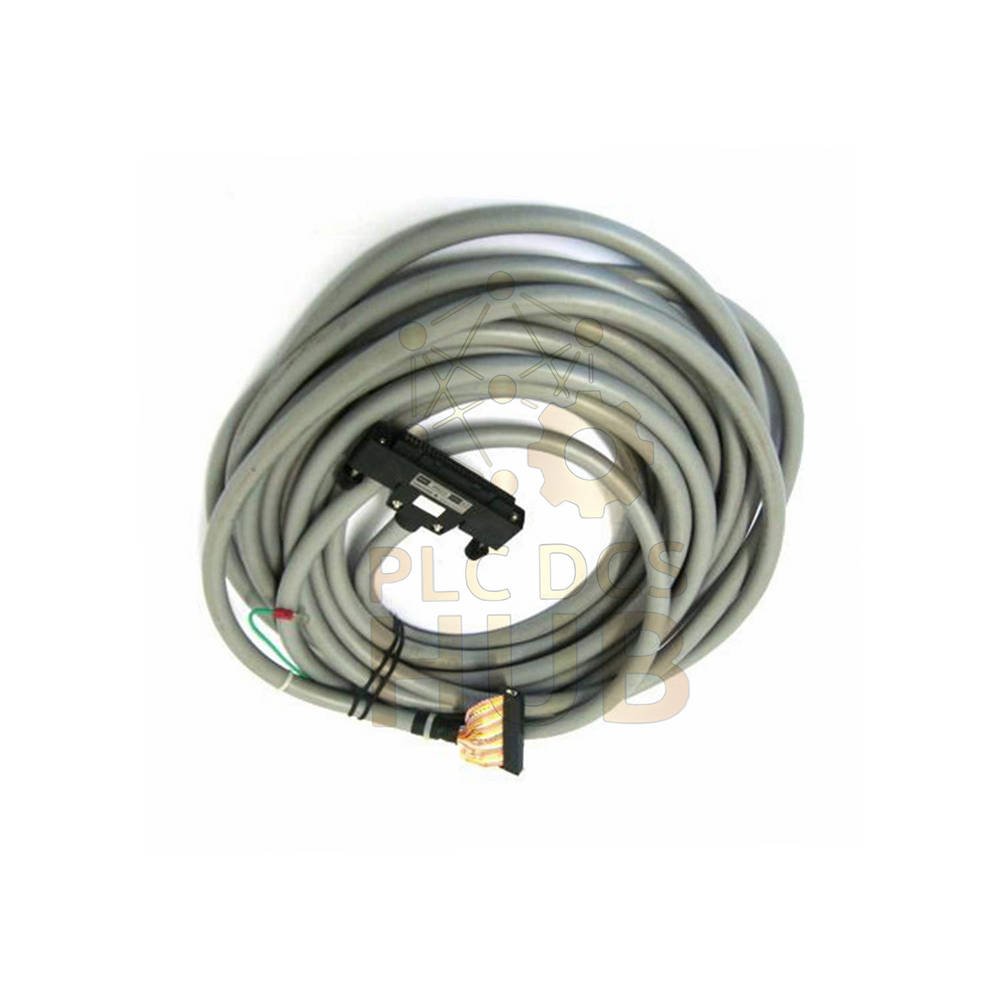

- The Yokogawa AKB337-M015 is a high-performance Signal Cable.
- It connects ProSafe-RS and CENTUM VP I/O modules to terminal boards.
- This AKB337 model features a 50-to-50 pin configuration for high-density wiring.
- The 15-meter length provides flexibility for large-scale industrial cabinet layouts.
- Built with a rugged PVC jacket to handle tough factory environments.
Configuration Breakdown
- AKB337 (Core Model: Multi-core Signal Cable 50-50 Pins)
- └── -M (Metric Measurement Unit)
- └── 015 (Defined Length: 15 Meters)
- └── Connector (Precision Molded 50-Pin Interface)
- └── Jacket (Industrial Grade Flame Retardant Material)
Technical Data
- Brand: Yokogawa
- Model: AKB337-M015
- Cable Length: 15 Meters
- Pin Layout: 50-Pin to 50-Pin straight connection.
- Wire Size: 28 AWG high-purity copper strands.
- Resistance: 0.12 Ω/m for minimal signal loss.
- Capacitance: 100 pF/m to ensure fast signal response.
- Impedance: 120 Ω matched for DCS/SIS systems.
- Voltage: Rated for 30V DC / 125V AC peak performance.
- Weight: 0.4 kg for easy installation and routing.
- External Diameter: 7.5 mm slim profile for tight spaces.
Durability & Build Quality
- Flex Life: Tested for 1 million cycles in moving parts.
- Bend Radius: Minimum 75 mm to prevent internal wire damage.
- Fire Safety: UL 1581 compliant flame retardant jacket.
- Shielding: Integrated aluminum foil to block electrical noise (EMI).
- Conformal Coating: Resists humidity and common industrial dust.
Logistics & Warranty
- Shipping Partners: Rapid global delivery via DHL, FedEx, and UPS.
- Quality Assurance: Includes a full 12-month warranty.
- Packaging: Ships in original factory-sealed protective bags.
- Tracking: Real-time tracking numbers provided for every order.
Typical Applications
- Wiring between Yokogawa I/O modules and field termination assemblies.
- Signal routing in Emergency Shutdown (ESD) systems.
- Fire and Gas (F&G) detection system connectivity.
- Critical control loops in oil, gas, and chemical plants.
Buying Guide
- Always check your cabinet map to confirm 15 meters is the correct length.
- Verify that your I/O module uses the 50-pin AKB337 interface.
- Choose -M015 for medium-distance runs between separate control cabinets.
- Ensure the PVC jacket is suitable for your local environmental safety codes.
Frequently Asked Questions (FAQ)
- Can I use the AKB337-M015 in a cable tray with power lines?
- Yes, the built-in shielding helps, but keep distance from high-voltage cables to avoid noise.
- What happens if the cable is bent too sharply?
- Bending below 75 mm may break internal copper strands and cause signal failure.
- Is this cable ready to use out of the box?
- Yes, it features pre-installed, factory-tested 50-pin connectors on both ends.
- Does the 15-meter length affect signal speed?
- No, the low-capacitance design maintains high-speed data integrity at this length.
- How do I clean the connectors if they get dusty?
- Use electronic contact cleaner or compressed air; do not use water or oils.
