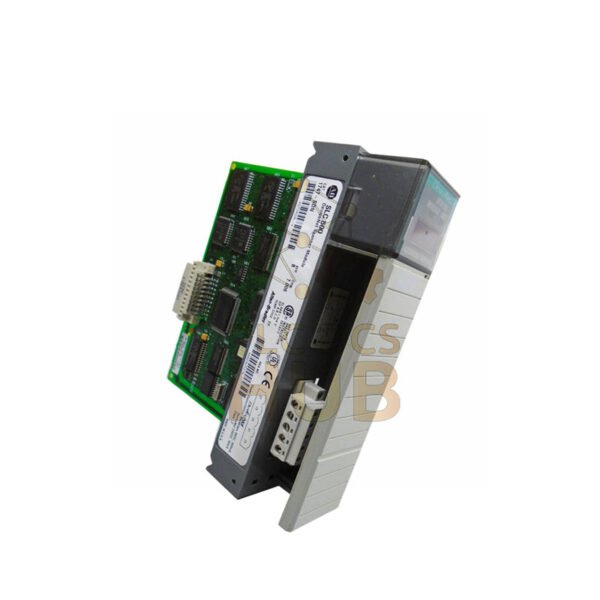

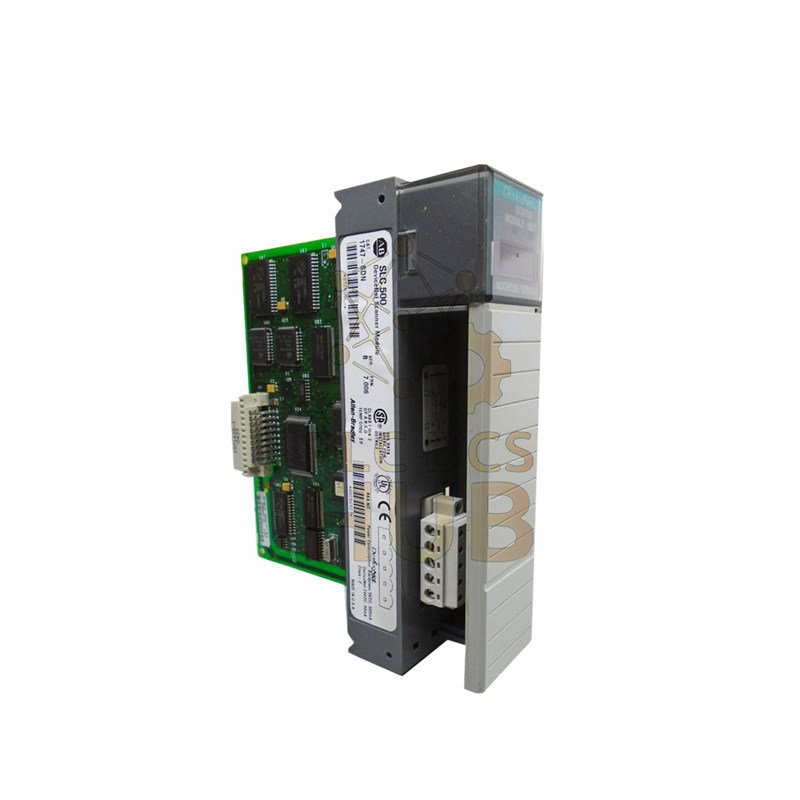

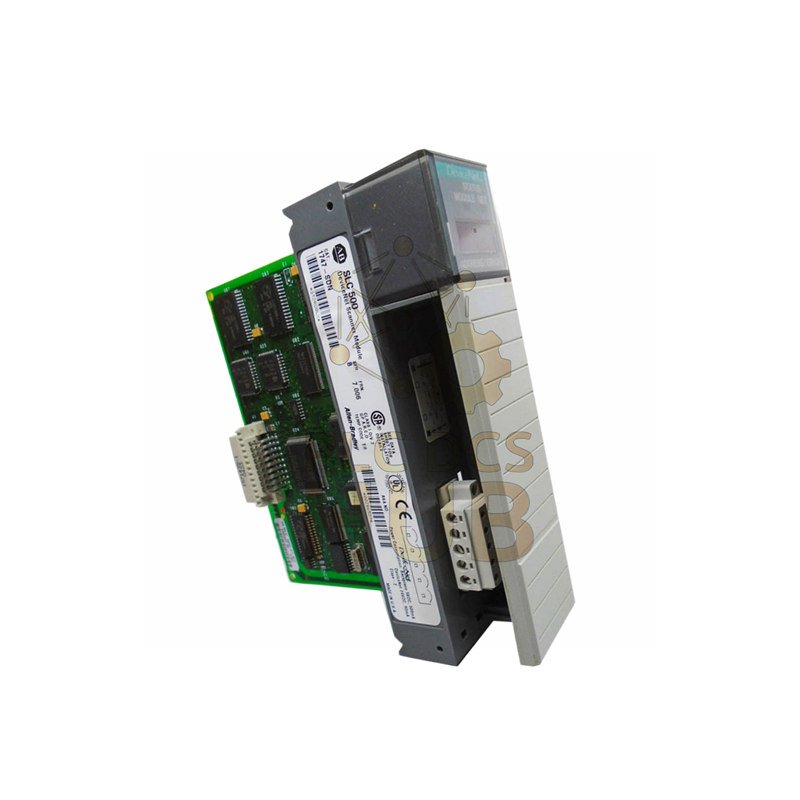

Allen-Bradley 1747-SDN DeviceNet Scanner Module | SLC 500 Network Interface

Description

Allen-Bradley 1747-SDN DeviceNet Scanner | Network Interface Module

Connect your SLC 500 system to DeviceNet networks with the versatile 1747-SDN scanner module. This powerful interface expands your control capabilities to hundreds of devices.

Installation Resources

• Complete installation and configuration guide available
• Includes wiring diagrams and network setup instructions
• Download SLC 500 Manual Here

Technical Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 1747-SDN
• Series: SLC 500
• Module Type: DeviceNet Scanner
• Compatible Processors: SLC 5/02, 5/03, 5/04, 5/05
• Network Speed: 125 Kbps (DeviceNet)
• Max Nodes: 63 devices
• Backplane Current: 500mA @ 5V DC; 90mA @ 24V DC
• Isolation: 500V AC between DeviceNet and backplane
• Operating Temperature: 32°F to 131°F (0°C to 55°C)
• Communication Modes: Poll, Strobe, COS, Cyclic, Pass-through
• Connector: 10-pin linear plug (1787-PLUG10R)
• Weight: 1 lb (0.45 kg)

Compatibility Information

• Works with SLC 5/02 or later processors
• Pass-through requires SLC 5/03, 5/04, or 5/05
• Replaces 1770-KFD, 1784-PCD, 1784-PCID interfaces
• Single-slot module for any SLC 500 chassis

Frequently Asked Questions

• Q1: What is the main function of the 1747-SDN module?
• A1: The 1747-SDN acts as a scanner that allows SLC 500 processors to communicate with devices on a DeviceNet network.
• Q2: How many devices can I connect to this scanner?
• A2: You can connect up to 63 nodes (devices) on the DeviceNet network using this scanner module.
• Q3: What communication modes does it support?
• A3: It supports Polled, Strobe, Change-of-State, Cyclic I/O, and Pass-through communication modes.
• Q4: Can I use this with an SLC 5/01 processor?
• A4: No, the 1747-SDN requires SLC 5/02 or later processors (5/02, 5/03, 5/04, 5/05).
• Q5: What is the pass-through feature used for?
• A5: Pass-through allows the module to act as a bridge, enabling programming and monitoring of DeviceNet networks from a computer.

Shipping & Warranty

We ship worldwide via FedEx, UPS, and DHL. This product includes our 12-month warranty against defects.
