Description

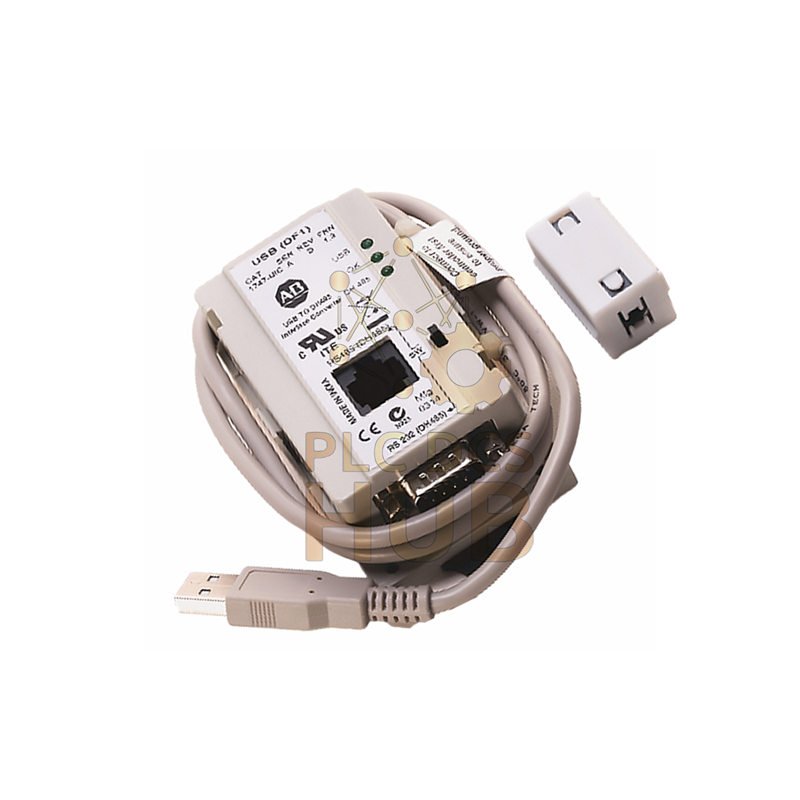

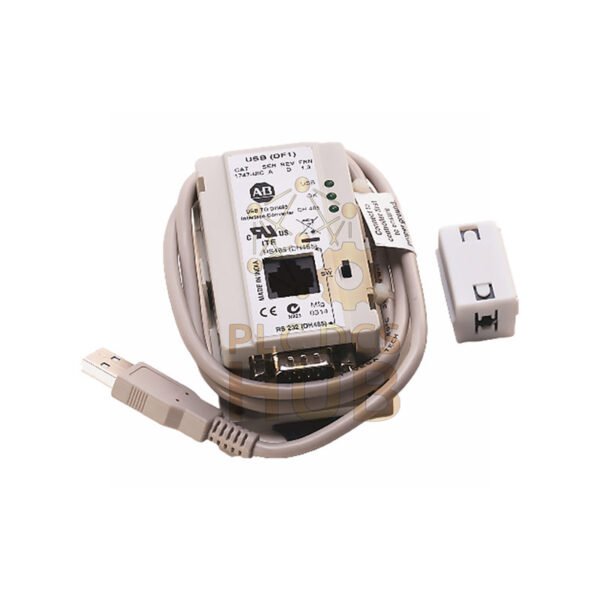

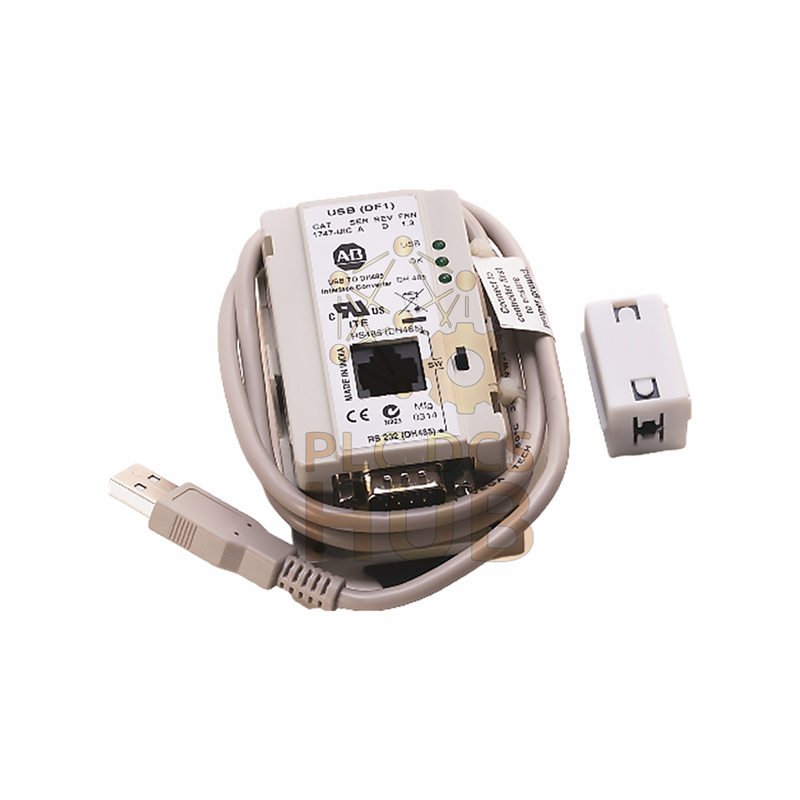

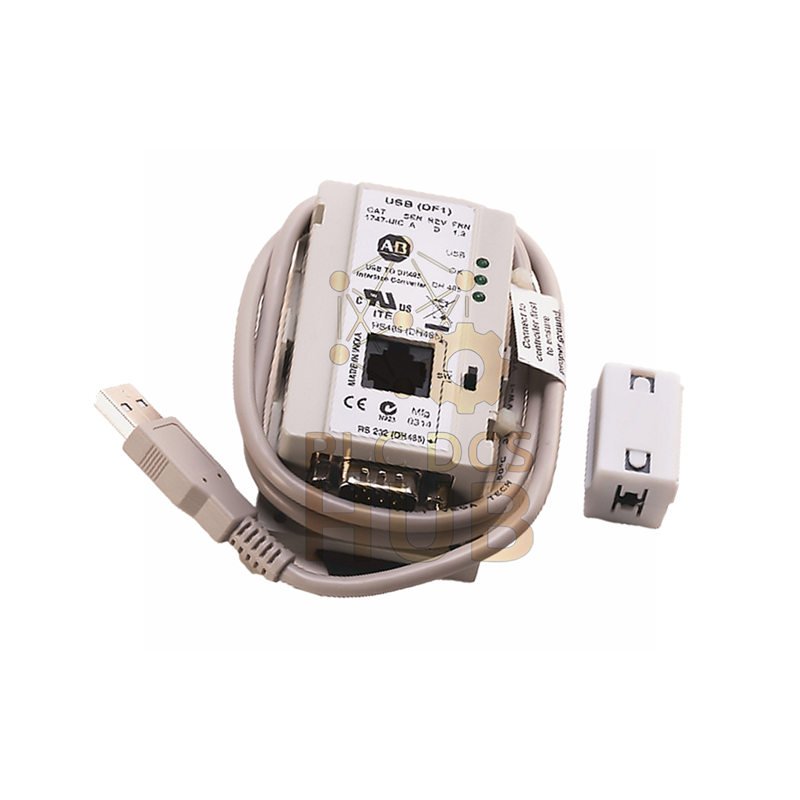

Allen-Bradley 1747-UIC USB to DH-485 Interface Converter
Connect modern computers to legacy DH-485 networks with the reliable 1747-UIC interface converter. This essential tool bridges USB ports to Allen-Bradley DH-485 devices.
Setup Resources
- Complete installation and configuration guide available
- Includes driver installation and troubleshooting tips
- Download SLC 500 Manual Here
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1747-UIC
- Series: SLC 500
- Device Type: USB to DH-485 Interface Converter
- Input Port: USB 2.0 (Type B connector)
- Output Ports: Two DH-485 ports (RJ45 connectors)
- USB Speed: 12 Mbps
- DH-485 Baud Rate: 19.2 Kbps
- Power Consumption: < 100 mA (from USB port)
- Isolation: 500V DC between power and DH-485 common
- Operating Temperature: 32°F to 140°F (0°C to 60°C)
- Dimensions: 4.29″ x 1.99″ x 1.22″ (109mm x 50.6mm x 31mm)
- Weight: 1 lb (0.45 kg)
Compatible Devices
- SLC 5/01, 5/02, 5/03 processors
- MicroLogix controllers with DH-485 ports
- PanelView terminals with DH-485 communication
- ControlLogix with DH-485 capability
- AIC (Advanced Interface Converter) devices
Frequently Asked Questions
- Q1: What computers can use the 1747-UIC converter?
- A1: The 1747-UIC works with any computer with USB ports and Windows operating systems that support the required drivers.
- Q2: Does this converter require external power?
- A2: No, it draws power directly from the computer’s USB port, making it completely portable and easy to use.
- Q3: What cables do I need to connect to DH-485 devices?
- A3: You will need standard RJ45 Ethernet cables to connect to the DH-485 ports on the converter.
- Q4: Can I connect multiple devices to the 1747-UIC?
- A4: Yes, the converter has two DH-485 ports that can be switch-selected for connecting to different devices or networks.
- Q5: Is driver software included?
- A5: Drivers are typically available from Rockwell Automation’s website and must be installed before using the converter.
Shipping & Warranty
We ship worldwide via FedEx, UPS, and DHL. This product includes our 12-month warranty against defects.
