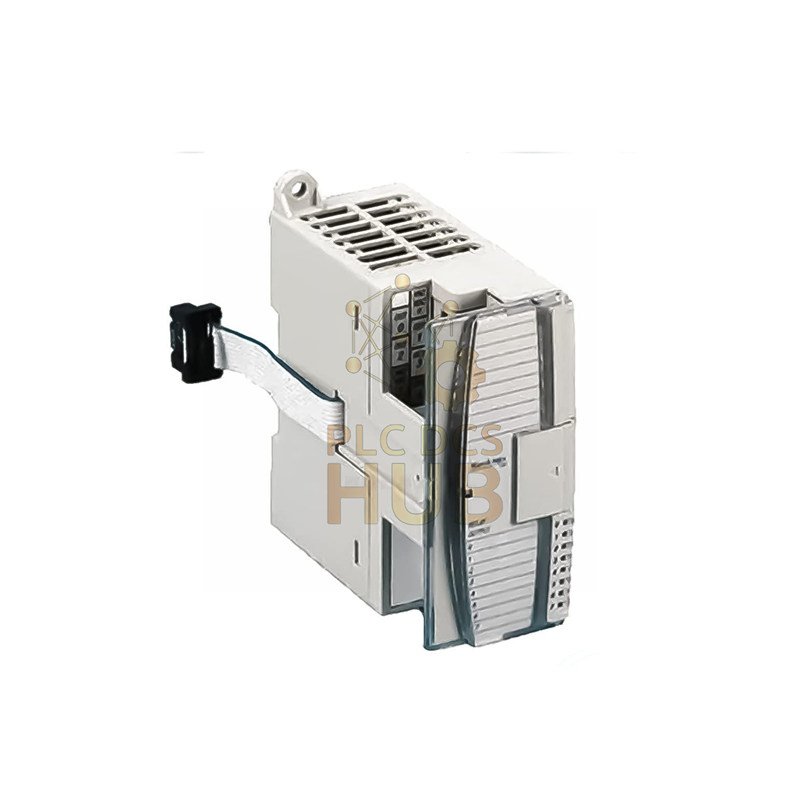

Allen-Bradley 1762-IF2OF2 | MicroLogix Analog Combo Module
Get a quote today! This versatile analog module includes our 12-month warranty and ships fast worldwide via FedEx, UPS, or DHL.
Product Overview
The Allen-Bradley 1762-IF2OF2 is a compact analog combination module. It works with MicroLogix 1100, 1200, and 1400 controllers. It provides both input and output signals in one space-saving unit.
Detailed Technical Specifications
- Brand & Model: Allen-Bradley 1762-IF2OF2
- Compatible Controllers: MicroLogix 1100, 1200, 1400
- Module Type: Analog Input/Output Combination
- Input Channels: 2 differential (voltage or current)
- Output Channels: 2 single-ended (voltage or current)
- Voltage Range: 0-10V DC (0-10.5V DC full range)
- Current Range: 4-20mA (0-21mA full range)
- Resolution: 12-bit
- Accuracy: ±0.3% @ 25°C, ±0.55% @ -20 to 65°C
- Update Time: 2.5 ms
- Input Impedance: 200 kΩ (voltage), 250 Ω (current)
- Power Consumption: 40mA @ 5V DC, 105mA @ 24V DC
- Isolation: 55 dB common mode rejection @ 50/60 Hz
- Operating Temperature: -20°C to 65°C (-4°F to 149°F)
- Dimensions: 90 x 87 x 40 mm (3.54 x 3.43 x 1.58 in)
- Weight: 240 g (0.53 lbs)
Installation & Compatibility
The 1762-IF2OF2 mounts directly next to MicroLogix controllers. It connects with a provided ribbon cable. Install on DIN rail or mounting plate with proper grounding to reduce noise.
Frequently Asked Questions
Q1: What controllers work with this module?
A1: It works with MicroLogix 1100, 1200, and 1400 series programmable controllers.
Q2: Can I mix signal types on different channels?
A2: Yes, each channel can be independently configured for voltage or current operation.
Q3: What is the difference between differential and single-ended?
A3: Differential inputs measure between two points for better noise rejection. Single-ended outputs reference a common point.
Q4: What applications is this module best for?
A4: It’s ideal for process control applications like monitoring temperature, pressure, or controlling valves and drives.
Q5: How many modules can I connect to one controller?
A5: MicroLogix controllers have limited expansion capacity – typically 2-4 modules depending on the specific controller model.
