Allen-Bradley 1769-L24ER-QB1B Packaged Controller | Compactlogix

Description

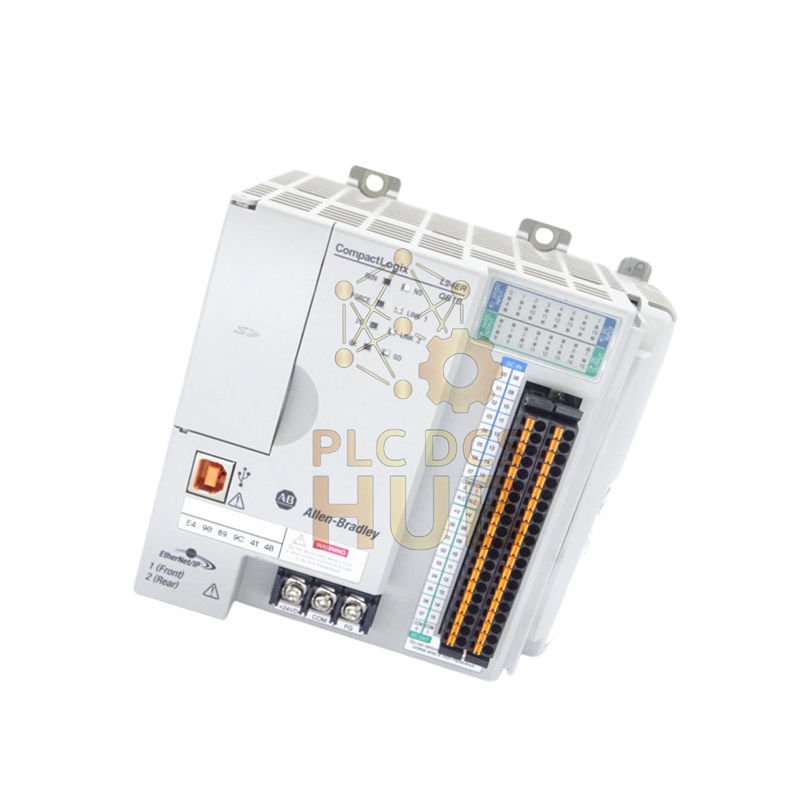

Allen-Bradley 1769-L24ER-QB1B CompactLogix Packaged Controller

The 1769-L24ER-QB1B is a complete automation solution with built-in I/O. This all-in-one controller combines processing power with 32 digital points. Perfect for small to medium applications requiring integrated control.

Technical Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 1769-L24ER-QB1B CompactLogix
• Controller Type: Packaged Processor with I/O
• Embedded Inputs: 16 channels, 24V DC (sink/source)
• Embedded Outputs: 16 channels, 24V DC (sourcing)
• Memory: 768 KB user memory
• Communication Ports: 2 Ethernet, 1 USB, 1 RS232
• Ethernet Speed: 10/100 Mbps
• Input Voltage: 10-28.8V DC operating range
• Output Voltage: 20.4-26.4V DC operating range
• Power Supply: 24V DC isolated
• Additional I/O Capacity: Up to 4 expansion modules
• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Dimensions: 4.53 x 4.13 x 4.65 inches
• Weight: 1.36 kg (3.0 lbs)

Installation Guide

Install the 1769-L24ER-QB1B on DIN rail or panel. Connect 24V DC power supply. Use built-in I/O for basic control needs. Add up to 4 expansion modules for additional I/O requirements.

Compare With Other Products

See how the 1769-L24ER-QB1B compares to other modules:

• 1769-IQ16F High-Speed Input Module
• 1769-IQ32 32-Channel Input Module

Frequently Asked Questions

• Q1: What does “packaged controller” mean?
  A1: It includes built-in I/O points, eliminating need for separate modules.
• Q2: How many expansion modules can be added?
  A2: Up to 4 additional Compact I/O modules.
• Q3: What memory options are available?
  A3: 768KB built-in, expandable with 1GB or 2GB SD cards.
• Q4: What Ethernet topologies are supported?
  A4: Device Level Ring (DLR), star, and linear topologies.
• Q5: Are the embedded I/O points configurable?
  A5: Yes, all 32 digital points are fully configurable.

Shipping & Warranty

We ship worldwide via FedEx, UPS, and DHL. Your purchase includes a 12-month warranty for complete confidence.
