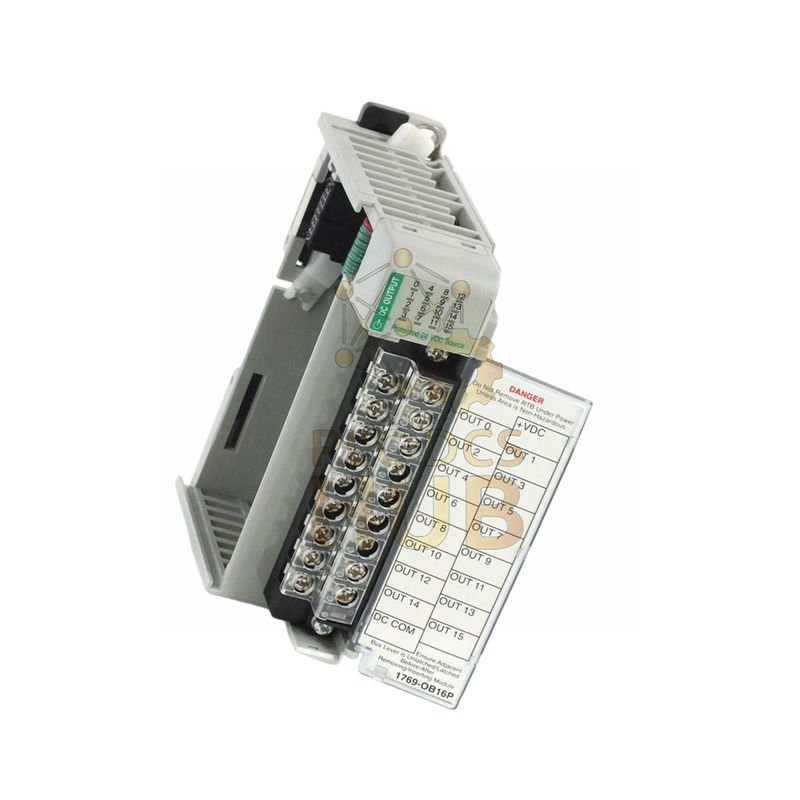

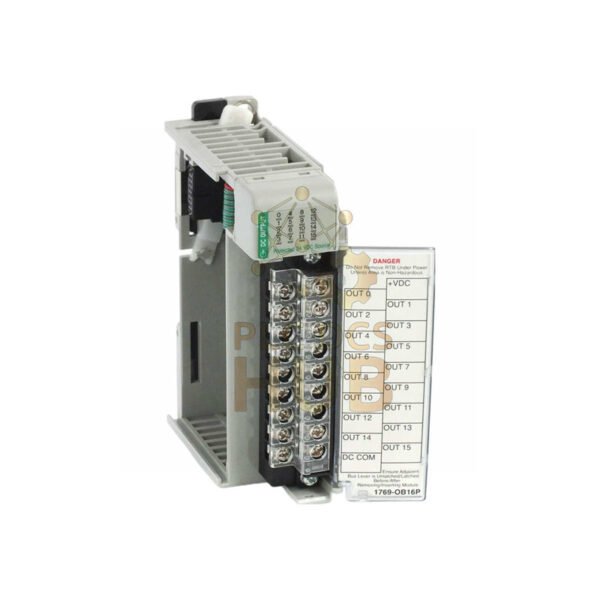

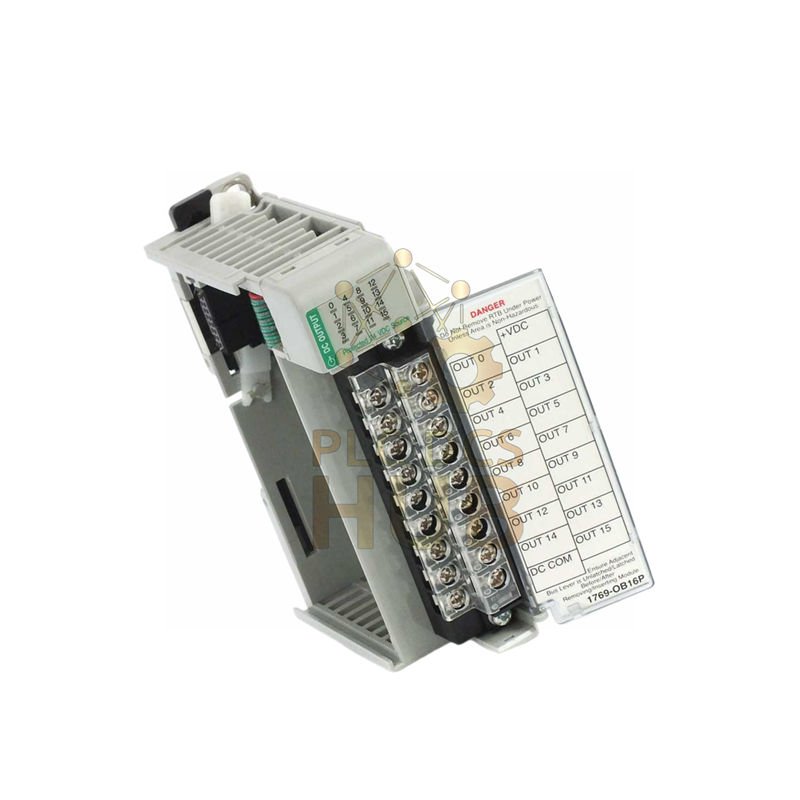

Allen-Bradley 1769-OB16P Protected Output Module
The 1769-OB16P is a 16-point DC output module with electronic protection. It works with 24V DC systems and keeps your devices safe from electrical problems. Perfect for reliable automation control.
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1769-OB16P Compact I/O
- Module Type: Protected DC Output
- Number of Outputs: 16 points
- Voltage Range: 20.4-26.4V DC
- Current per Point: 1.0A @ 30°C / 0.5A @ 60°C
- On Delay: 1.0 ms
- Off Delay: 2.0 ms
- Power Consumption: 2.69 Watts
- Operating Temperature: 0 to 60 °C (32 to 140 °F)
- Backplane Current: 160 mA @ 5.1V DC
- Wire Size: 22-14 AWG (Solid), 22-16 AWG (Stranded)
- Weight: 0.25 kg (0.56 lbs)
Installation Guide
Install the 1769-OB16P within 8 modules of the power supply. Use the 1769-RTB18 terminal block. Always disconnect power before installation. Mount on DIN rail or panel.
Compare With Other Products
See how the 1769-OB16P compares to other modules:
Frequently Asked Questions
- Q1: What does the “P” in OB16P stand for?
A1: It means “Protected” – the module has electronic circuit protection. - Q2: How fast can the outputs switch?
A2: Turns on in 1ms, turns off in 2ms. - Q3: What power supplies work with this module?
A3: 1769-PA2, 1769-PB2, 1769-PA4, and 1769-PB4 power supplies. - Q4: Is the terminal block included?
A4: No, the 1769-RTB18 terminal block must be ordered separately. - Q5: Can it handle surge currents?
A5: Yes, it handles 2.0A surges for 10ms repeated every second.
