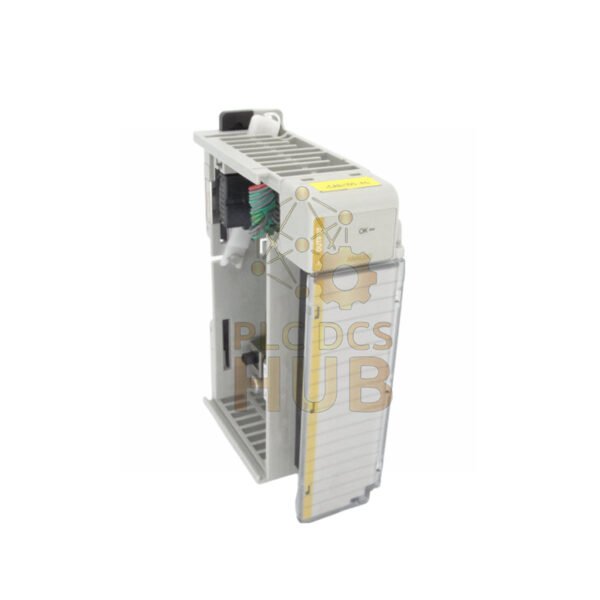

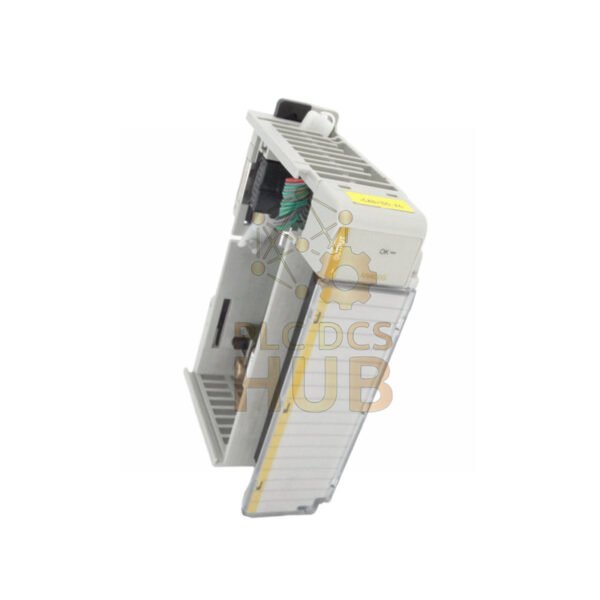

Allen-Bradley 1769-OF2 Analog Output Module
The 1769-OF2 is a versatile 2-channel analog output module. It provides precise control signals for industrial applications. Perfect for driving valves, actuators, and other analog devices.
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1769-OF2 Compact I/O
- Module Type: Analog Output
- Number of Channels: 2 channels
- Voltage Outputs: ±10V, 0-10V, 0-5V, 1-5V DC
- Current Outputs: 0-20mA, 4-20mA
- Resolution: 14-bit
- Conversion Rate: 2.5 ms
- Power Consumption: 2.36 Watts
- Operating Temperature: 0 to 60 °C (32 to 140 °F)
- Backplane Current: 120 mA @ 5.1V DC
- Accuracy: ±0.5% (voltage), ±0.35% (current)
- Wire Size: 22-14 AWG (Solid), 22-16 AWG (Stranded)
- Weight: 0.29 kg (0.65 lbs)
Installation Guide
Install the 1769-OF2 within 8 modules of power supply. Use 1769-RTBN18 terminal block. Mount on DIN rail or panel. Follow proper wiring practices for analog signals.
Compare With Other Products
See how the 1769-OF2 compares to other modules:
Frequently Asked Questions
- Q1: What signals can this module output?
A1: Voltage (±10V, 0-10V, 0-5V, 1-5V) and current (0-20mA, 4-20mA). - Q2: Does it require field calibration?
A2: No, it’s factory calibrated and requires no field calibration. - Q3: What is the resolution of the outputs?
A3: 14-bit resolution for precise control. - Q4: How fast is the update rate?
A4: 2.5ms conversion rate with 2.9ms step response. - Q5: What controllers support this module?
A5: CompactLogix 1769 series and MicroLogix 1500 controllers.
