Allen-Bradley 1769-OF8C Analog Output Module | 8-Channel CompactLogix

Description

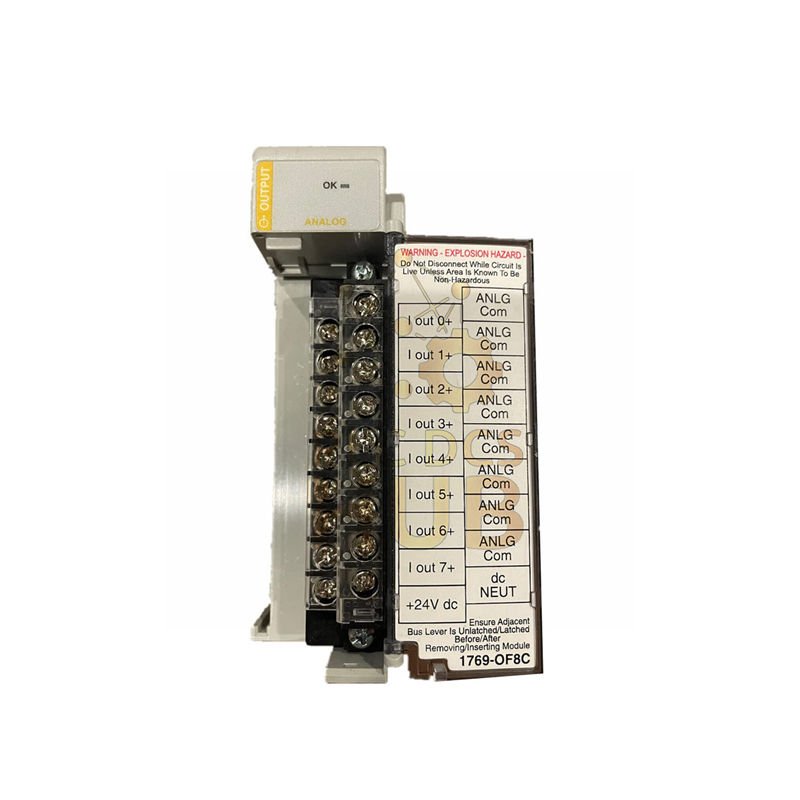

Allen-Bradley 1769-OF8C 8-Channel Current Output Module

The 1769-OF8C is a high-density 8-channel current output module. It delivers precise control signals for multiple devices. Perfect for driving valves, VFDs, and other industrial actuators.

Key Benefits of 1769-OF8C

• 8 Output Channels: Control multiple devices from one module.
• Dual Range Output: Supports 0-20mA and 4-20mA signals.
• High Precision: 16-bit resolution for accurate control.
• Built-in Protection: Overcurrent and overvoltage protection.
• Fast Response: 5ms conversion rate for all channels.

Technical Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 1769-OF8C Compact I/O
• Module Type: Analog Current Output
• Number of Channels: 8 channels
• Current Outputs: 0-20mA, 4-20mA
• Resolution: 16-bit
• Conversion Rate: 5 ms (all channels)
• Accuracy: ±0.35% at 25°C
• Power Consumption: 2.69 Watts
• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Backplane Current: 145 mA @ 5V DC
• Load Resistance: 0-500 Ω
• Protection: Short-circuit and overvoltage protection
• Wire Size: 22-14 AWG (Solid), 22-16 AWG (Stranded)
• Weight: 0.28 kg (0.62 lbs)

Installation Guide

Install the 1769-OF8C in a protected indoor environment. Use proper grounding techniques. Connect within specified load resistance limits. Keep within operating temperature range.

Compare With Other Products

See how the 1769-OF8C compares to other modules:

• 1769-ADN DeviceNet Scanner
• 1769-AENTR Ethernet Adapter

Frequently Asked Questions

• Q1: How many devices can this module control?
  A1: It can control up to 8 devices simultaneously.
• Q2: What is the maximum output current?
  A2: 21mA maximum short-circuit current protection.
• Q3: Does it work with MicroLogix controllers?
  A3: Yes, compatible with MicroLogix 1500 and CompactLogix.
• Q4: What is the response time?
  A4: 5ms conversion rate with 2.9ms step response.
• Q5: Is field calibration required?
  A5: No, it maintains accuracy without field calibration.

Shipping & Warranty

We ship worldwide via FedEx, UPS, and DHL. Your purchase includes a 12-month warranty for complete confidence.
