Allen-Bradley 1769-OV32T Output Module | 32-Point Sinking CompactLogix

Description

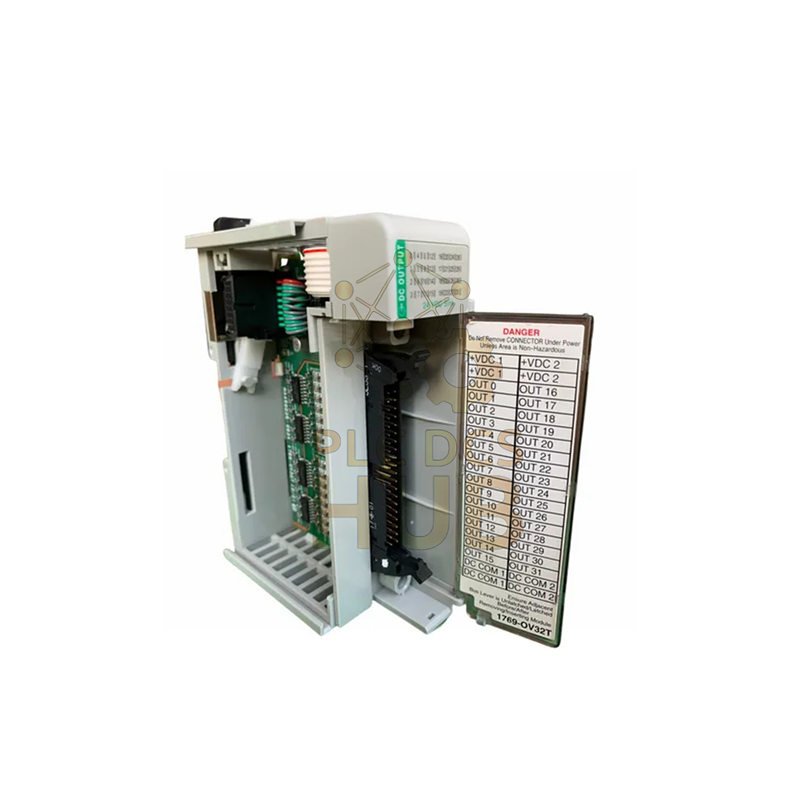

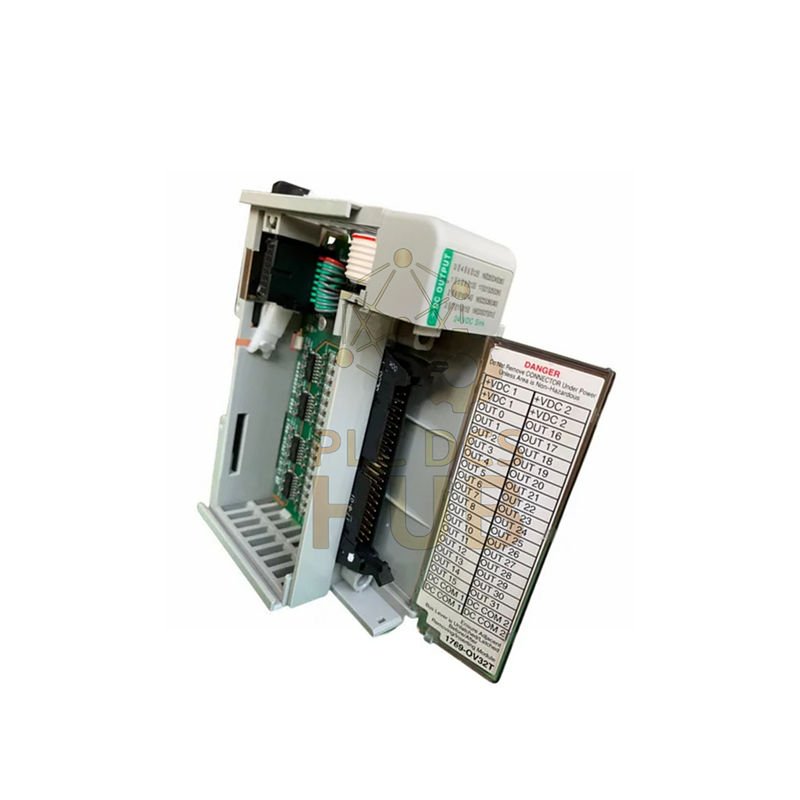

Allen-Bradley 1769-OV32T Sinking Output Module

The 1769-OV32T is a high-density 32-point sinking output module. It operates at 24V DC and provides reliable control for industrial applications. Perfect for space-constrained control panels.

Key Benefits of 1769-OV32T

• 32 Output Points: Maximum density in minimal space.
• Sinking Configuration: Compatible with various industrial devices.
• Wide Voltage Range: Operates from 10.2-26.4V DC.
• Easy Mounting: Tongue-and-groove connectors for simple installation.
• Flexible Wiring: Accepts 14-22 AWG solid or 16-22 AWG stranded wire.

Technical Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 1769-OV32T CompactLogix
• Module Type: Sinking Digital Output
• Number of Outputs: 32 points (2 groups of 16)
• Operating Voltage: 10.2-26.4V DC
• Output Type: Solid-state sinking
• Wire Temperature: 90°C (194°F) copper wire
• Dimensions: 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in)
• Weight: 0.45 kg (0.99 lbs)
• Mounting: DIN rail or panel mount
• Enclosure: Open design (install in protected areas)
• Compatibility: CompactLogix, MicroLogix 1500, 1769-ADN, 1769-AENTR

Installation Guide

Install the 1769-OV32T in clean, protected environments. Avoid dust, static, and UV exposure. Use tongue-and-groove connectors for easy mounting. Follow proper wiring practices for optimal performance.

Compare With Other Products

See how the 1769-OV32T compares to other modules:

• 1769-IF16C Analog Input Module
• 1769-IF16V Voltage Input Module

Frequently Asked Questions

• Q1: What does “sinking output” mean?
  A1: It means the module provides a path to ground when active.
• Q2: How many output groups does it have?
  A2: Two groups of 16 outputs each.
• Q3: What controllers work with this module?
  A3: CompactLogix, MicroLogix 1500, and various adapters.
• Q4: Is this module waterproof?
  A4: No, it has an open design and requires protected installation.
• Q5: What wire sizes are supported?
  A5: 14-22 AWG solid wire or 16-22 AWG stranded wire.
