Allen-Bradley | 1771-HSAR Servo Controller – Battery-Backed Memory Module

Description

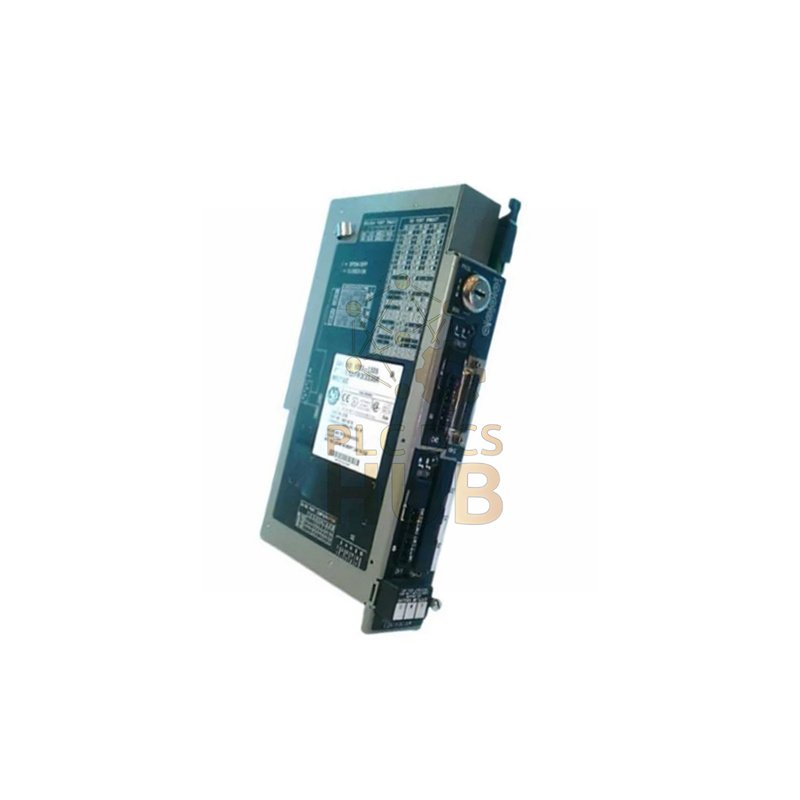

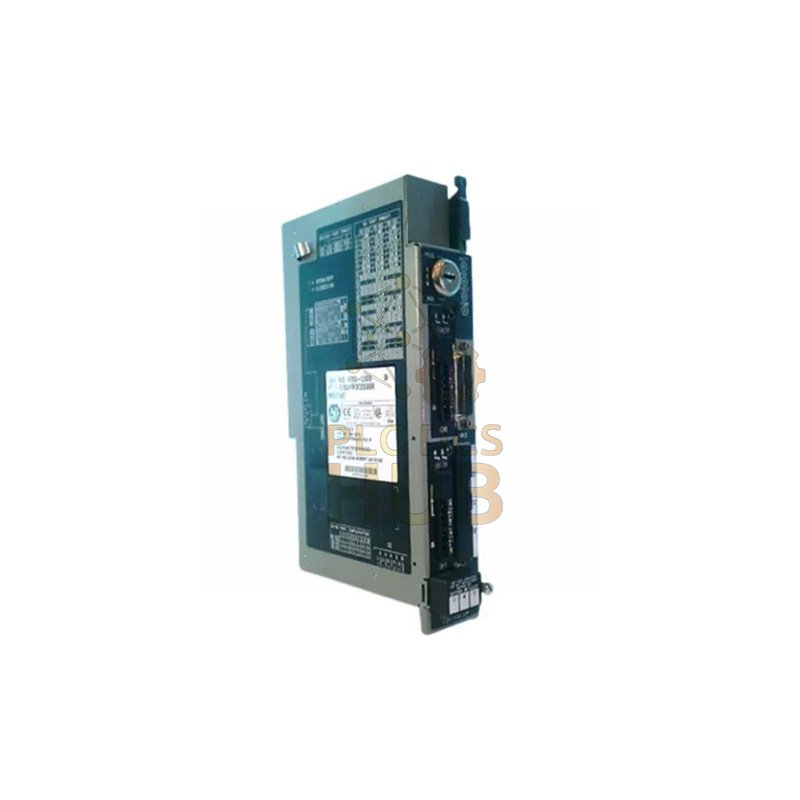

Allen-Bradley 1771-HSAR Servo Controller Module

The Allen-Bradley 1771-HSAR is a high-performance servo controller for precise motion control. This advanced module works with PLC-5 systems and includes battery-backed memory for reliable operation. It’s perfect for industrial automation applications requiring accurate movement control.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1771-HSAR
• Series: PLC-5 / IMC
• Type: Servo Controller Module
• Memory: 96KB battery-backed
• Battery Type: Lithium
• Battery Life: 3 years typical, 10 years backup
• Input Frequency: 250 kHz max
• Output Signal: ±10V DC analog
• Update Rate: 2 ms per axis
• Backplane Current: 1.7 Amps
• Power Supply: 120V/220V AC
• Connectors: RS-232, AUX FDBK 15-pin
• Operating Temp: 0 to 60°C
• Dimensions: 3.5 x 6.5 x 2.0 inches
• Slot Requirement: 2 slots in chassis

Connection Options

This module supports multiple connections:
• RS-232 for programming and debugging
• AUX FDBK for encoder feedback
• Axis E-Stop for safety connections
• Handheld pendant for remote control
• Various termination panel connections

Warranty & Shipping

• We provide a 12-month warranty on this product
  We ship worldwide using FedEx, UPS, and DHL
• Frequently Asked Questions
• Q: How long does the memory battery last?
  A: The lithium battery typically lasts 3 years and can backup memory for up to 10 years.
• Q: What power supply does it need?
  A: It works with both 120V and 220V AC power supplies.
• Q: Can I connect external encoders?
  A: Yes, through the 15-pin AUX FDBK connector for feedback signals.
• Q: Is programming software included?
  A: The module connects to programming systems but requires separate software.
• Q: How many slots does it need in the chassis?
  A: It requires 2 adjacent slots in the 1771 I/O chassis.

Compare With Other Products

The 1771-HSAR is a motion control module, while other 1771 modules like the 1771-IA2 Input Module or 1771-HTE Encoder Module handle different functions in control systems.
