Description

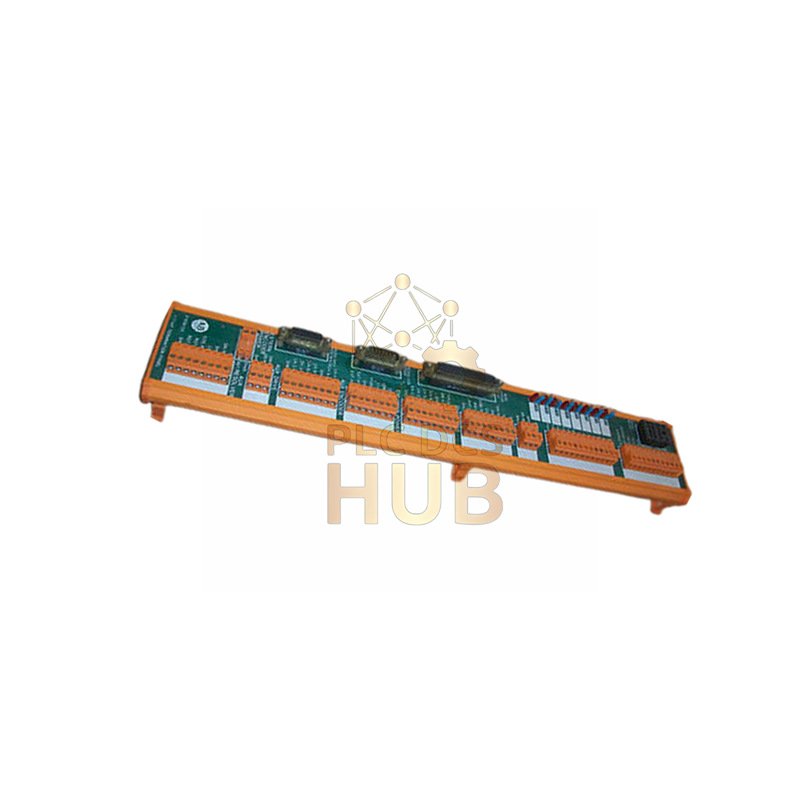

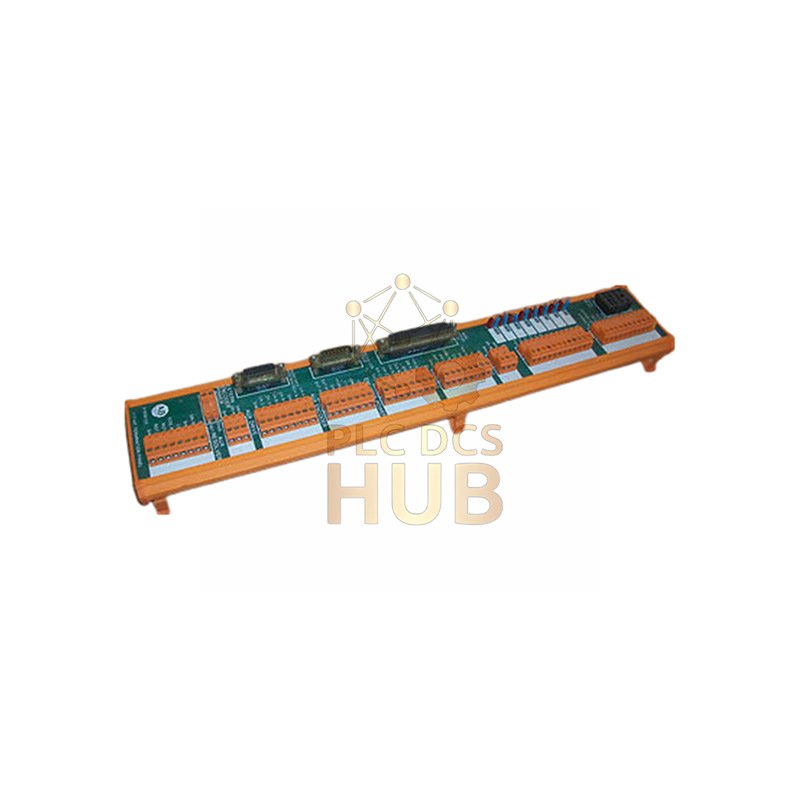

Allen-Bradley 1771-HT Termination Panel | IMC 12X Motion Controller Interface
The Allen-Bradley 1771-HT provides a streamlined connection solution for Rockwell Automation’s IMC 12X motion control systems. This specialized termination panel simplifies wiring and enhances troubleshooting capabilities for industrial automation applications requiring precise motion control integration.
Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Model Number: 1771-HT
- Product Type: Termination Panel Module
- Series Compatibility: PLC-5
- Intended Use: IMC 12X Motion Controllers
- Input Channels: 4 Fast Inputs (FI1 to FI4)
- Output Channels: 4 Fast Outputs (FO1 to FO4)
- Connector Type: D-shell Pluggable Screw-type
- Communication Protocol: RS-232 Serial Interface
- Voltage Rating: 24V DC Operating Voltage
- Current Capacity: 5A Maximum per Connection
- Isolation Voltage: 1500V AC Input-to-Output
- LED Indicators: I/O Status for All Channels
- Relay Contacts: Socketed Onboard E-Stop Relay
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Humidity Range: 5% to 95% Non-Condensing
- Dimensions: 210mm × 165mm × 45mm (8.3″ × 6.5″ × 1.8″)
- Weight: 1.2 kg (2.6 lbs)
Visual Indicators & Control
- LED status indicators for all 4 fast inputs (FI1-FI4)
- Visual output status for all 4 fast outputs (FO1-FO4)
- Socketed onboard relay for E-stop functionality
- Convenient reset pushbutton integration
- Easy troubleshooting with clearly labeled test points
Packaging & Delivery
- Each 1771-HT panel includes comprehensive installation guide
- Protective packaging prevents damage during shipping
- Worldwide delivery via FedEx, UPS, and DHL carriers
- Express shipping options available for urgent requirements
- Standard order processing within 1-2 business days
Frequently Asked Questions
- Q: How many servo controllers can connect to one 1771-HT panel?
A: The panel supports daisy-chain connection for up to 3 servo controllers - Q: What types of feedback devices does this panel support?
A: It supports both encoder and resolver feedback systems with dedicated connectors - Q: Are status indicators provided for all I/O channels?
A: Yes, LED indicators show status for all 4 fast inputs and 4 fast outputs - Q: Can I use this panel with non-Allen-Bradley motion controllers?
A: The 1771-HT is specifically designed for IMC 12X series controllers - Q: Does the panel include E-stop functionality?
A: Yes, it features a socketed onboard relay for E-stop functions
Comparison Products
Explore other Allen-Bradley components: 1771-CE Power Supply Cable and 1771-CFM Flow Meter Module.
