Description

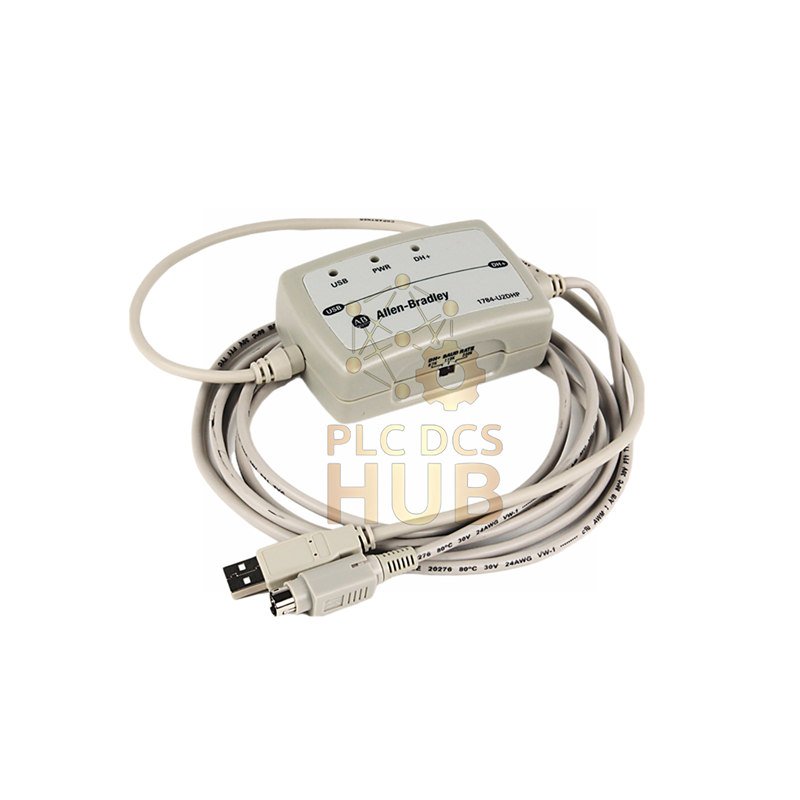

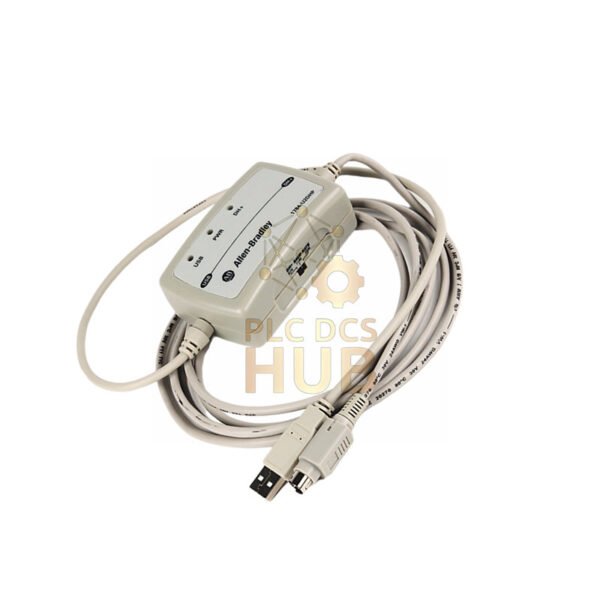

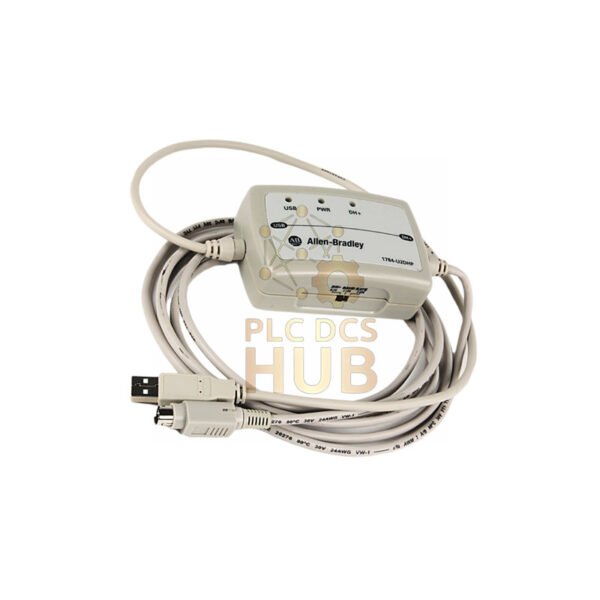

Allen-Bradley 1784-U2DHP USB to DH+ Cable
Connect your computer to Data Highway Plus networks easily. This industrial cable lets you program and configure PLC-5 and SLC 5/04 processors through USB.
Technical Details
- Brand: Allen-Bradley / Rockwell Automation
- Model: 1784-U2DHP
- Type: USB to DH+ Cable
- USB Length: 0.61 meters
- DIN Cable: 2.44 meters
- Speed Options: 57.6K, 115.2K, 230.4K bps
- Max Distance: 3048 meters at 57.6K bps
- Power: 5V DC from USB
- Temperature: 0°C to 55°C
- Warranty: 12 months
What’s in the Box?
- 1784-U2DHP Cable
- USB connector
- 8-pin DIN connector
- Driver installation guide
Shipping Info
- Free global shipping
- FedEx, UPS, DHL available
- Usually ships same day
- Tracking number provided
Common Questions
- Which processors does it work with?
Works with PLC-5 (except Classic models) and SLC 5/04 - Does it need external power?
No, it gets power from USB port - What are the LED indicators for?
They show power, USB status, and network activity - Can I change the communication speed?
Yes, but disconnect from USB first - Is driver installation required?
Yes, drivers create a unique COM port
