Description

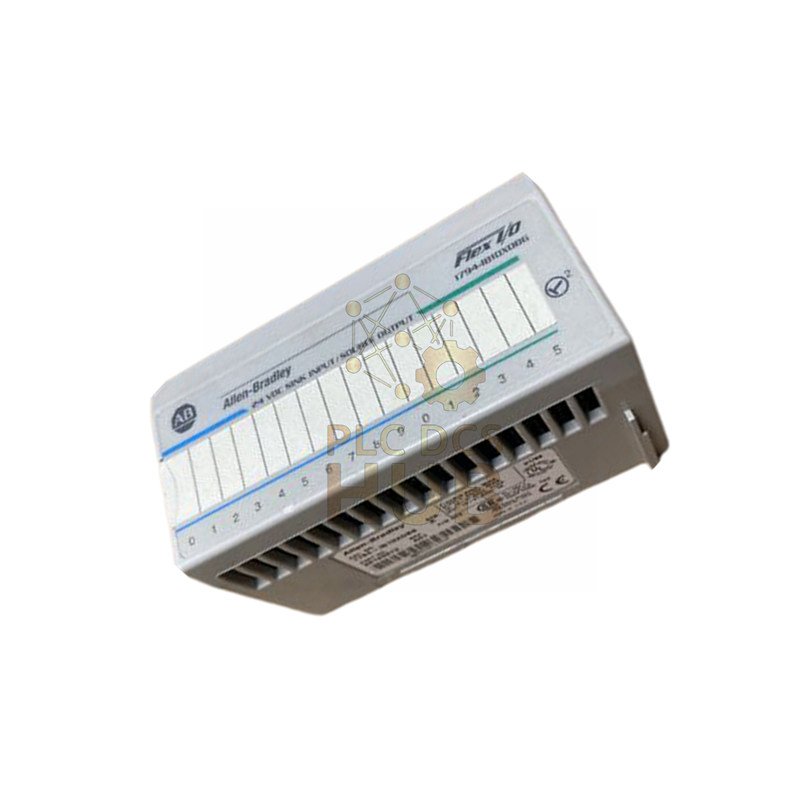

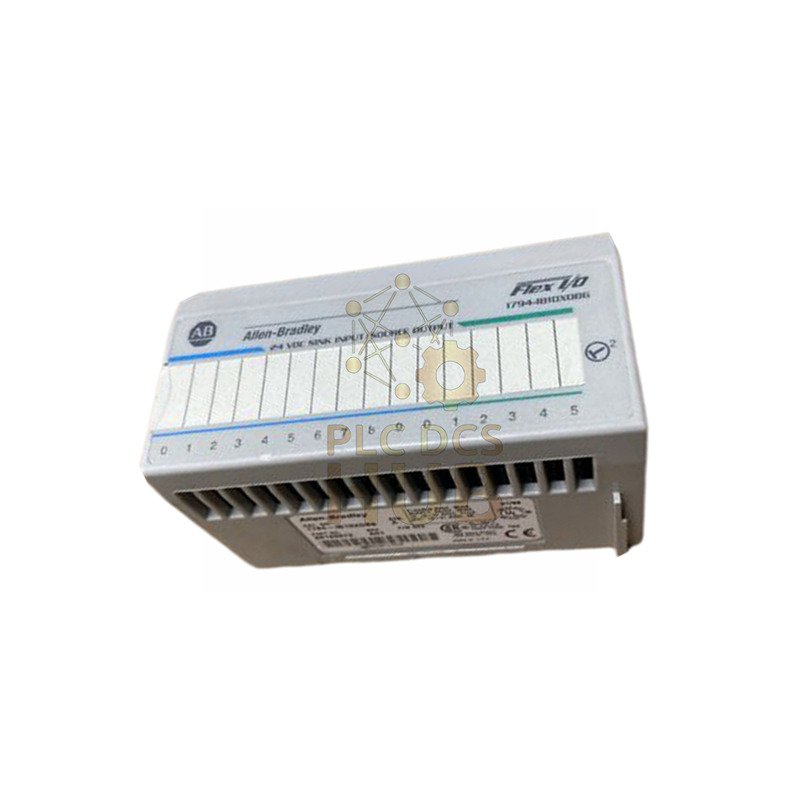

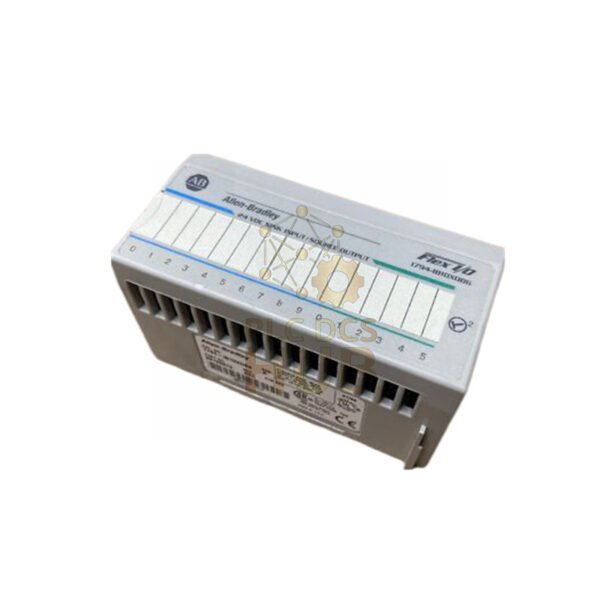

Allen-Bradley 1794-IB10XOB6 Flex I/O Combination Digital I/O Module
Versatile combination module for compact control applications. The Allen-Bradley 1794-IB10XOB6 provides both input and output capabilities in a single module, saving space and simplifying wiring.
Technical Specifications
Brand: Allen-Bradley (Rockwell Automation)
Model: 1794-IB10XOB6
Product Type: Digital Combination I/O Module
Input Channels: 10 current sink inputs
Output Channels: 6 current source outputs
Voltage: 24V DC nominal
Input Current: 8mA @ 24V DC
Output Current: 2A per channel maximum
Input Impedance: 4.8 kilohms
Flexbus Current: 50mA @ 5V DC
Operating Temp: -20°C to 55°C (-4°F to 131°F)
Response Time: <1ms typical
Wire Size: 22-12 AWG recommended
Enclosure Rating: Open-style (requires protective enclosure)
Mounting: DIN rail
Status Indicators: Per channel status LEDs
Isolation: Channel-to-channel and field-to-logic
Installation & Compatibility
Simple DIN rail mounting. Compatible with all 1794 Flex I/O terminal bases and adapters. Requires external 24V DC power supply. Uses standard industrial wiring practices.
Warranty & Shipping
This product includes a 12-month warranty. We ship worldwide using FedEx, UPS, and DHL for reliable delivery.
Frequently Asked Questions
- What types of inputs and outputs does it have?
10 current sink inputs and 6 current source outputs, all 24V DC. - What is the maximum output current?
Each output channel can handle up to 2A continuous current. - Is this module isolated?
Yes, it provides channel-to-channel and field-to-logic isolation. - What environment is it suitable for?
It requires a protective enclosure as it has an open-style design. - Can it handle inductive loads?
Yes, but appropriate suppression should be used for inductive loads.
