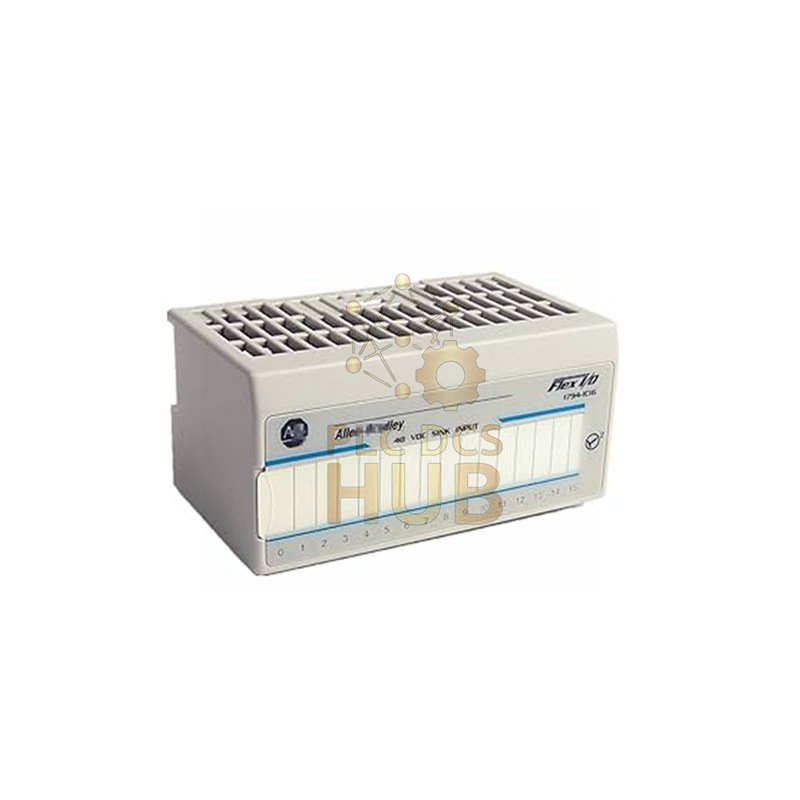

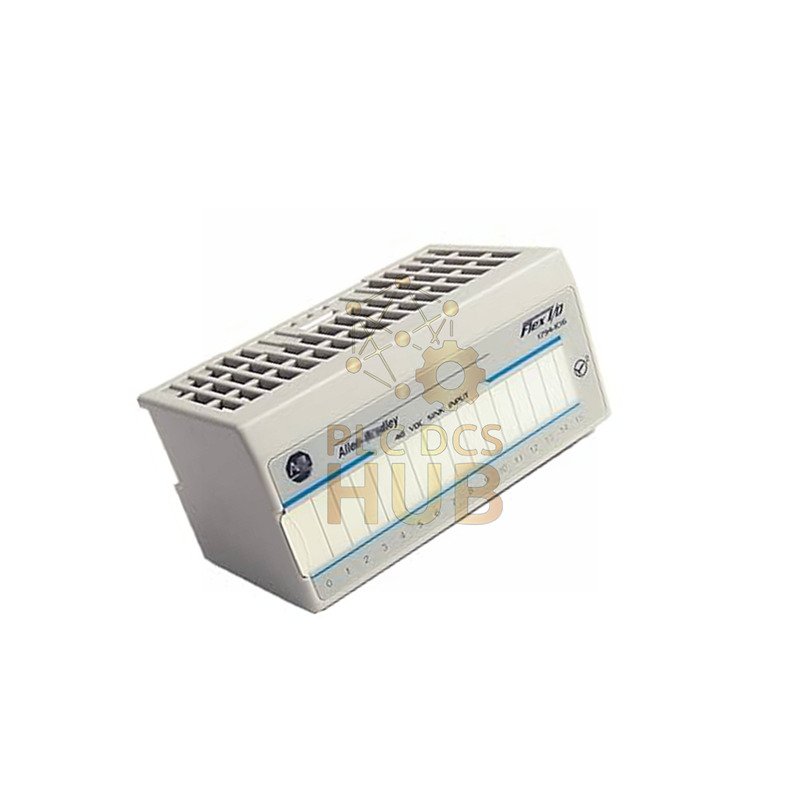

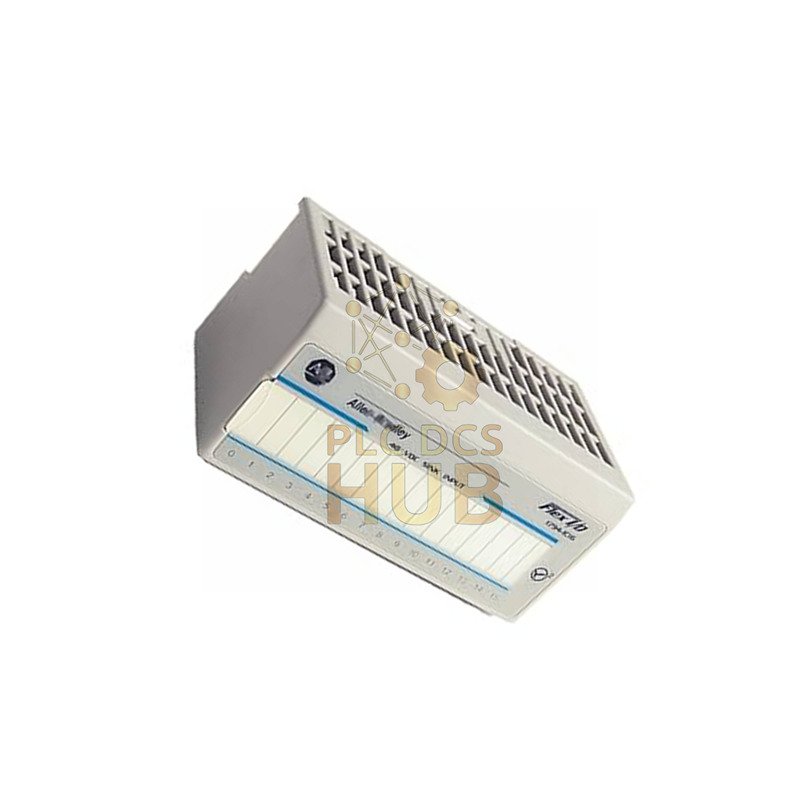

Allen-Bradley 1794-IC16 Flex I/O Digital Input Module
Get powerful input control with the Allen-Bradley 1794-IC16 digital input module. This Flex I/O module offers 16 sinking inputs for high-voltage DC applications. It is built tough for industrial use and provides reliable performance for your automation needs.
Technical Specifications
Brand: Allen-Bradley
Model: 1794-IC16
Series: Flex I/O
Module Type: Digital Input Module
Number of Inputs: 16 Points, Sinking
Input Voltage Range: 5-125V DC
On-state Voltage: 30-60V DC
On-state Current: 2.0-7.0 mA
Off-state Voltage: 10V DC max
Input Impedance: 11 kΩ
Power Dissipation: 6.4W max
Isolation Voltage: 1900V DC tested
Operating Temperature: 0 to 60°C (32 to 140°F)
Compatible Terminal Bases
This 1794-IC16 module works with 1794-TB3S and 1794-TB3SK terminal base units for easy installation.
Warranty & Shipping
We provide a 12-month warranty on this module. We ship worldwide using FedEx, UPS, and DHL for fast delivery.
Frequently Asked Questions
- What voltage range does this module support?
It supports a wide 5-125V DC input range, depending on the terminal block used. - How many status indicators does it have?
It has 16 logic-driven status indicators, one for each input channel. - Can I adjust the input filtering?
Yes, the input filter time can be configured based on your process requirements. - What mounting options are available?
It supports both DIN rail mounting and screw mounting for flexible installation. - Is surge protection recommended?
Yes, using a surge protector is advised to protect against power imbalances.
Compare With Similar Products
See how it compares to other Flex I/O modules:
• Allen-Bradley 1794-OF8IH HART Analog Output Module
• Allen-Bradley 1794-OM8 Digital Output Module
