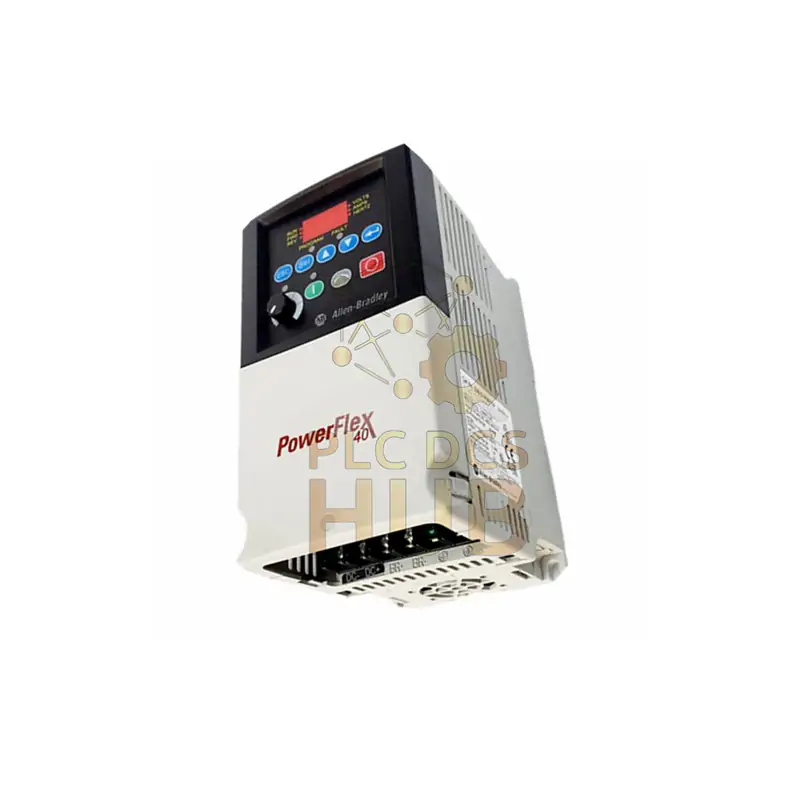

Allen-Bradley 22B-B8P0F104 – 2HP Industrial Drive
The 22B-B8P0F104 gives you precise motor control in a compact package. This 2HP drive works with 240V 3-phase power for smooth speed changes in machines.
Key Benefits
- 2HP (1.5kW) power – perfect for medium loads
- Compact flange mount design saves space
- Easy-to-use keypad for quick setup
- Works with standard PLC systems
- Lightweight – only 10 lbs (4.5 kg)
Technical Details
| Power Input | 200-240V 3-phase |
| Output Current | 8.0 Amps |
| Frequency Range | 50-60Hz standard |
| Dimensions | 9.8″ x 9.6″ x 3.7″ |
| Control Voltage | 24V DC |
| Braking | Built-in IGBT brake |
| Communication | RS-485 port |
5 Expert Questions
- Where can I install this drive?
Indoors only – avoid sunlight and wet areas. - What’s special about the mounting?
Flange mount saves panel space. - How do I protect from electrical damage?
Use proper grounding and ESD precautions. - Can I connect to a PLC?
Yes, works with most Allen-Bradley PLCs. - What maintenance does it need?
Just keep it clean and cool.
Installation Notes
- Mount on flat surface
- Allow 2″ clearance on sides
- Use shielded cables
- Check all connections twice
12-month warranty – We replace any defective units. Ships via FedEx, UPS or DHL.
Need setup help? Download the PowerFlex 40 manual here for complete wiring diagrams.
