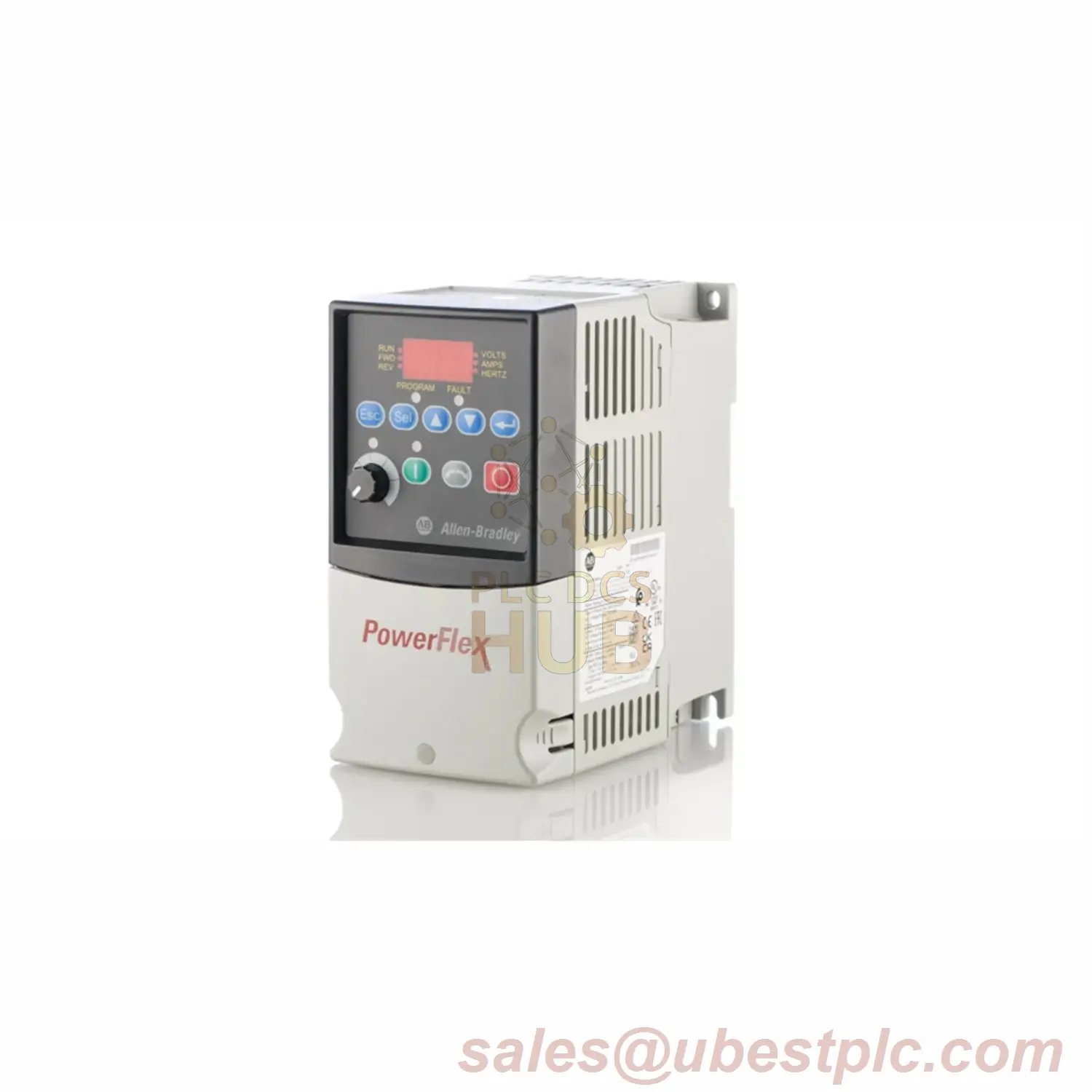

Allen-Bradley PowerFlex 40 Drive – 22B-D024H204 (15HP)
Powerful 22B-D024H204 drive for heavy-duty motors. Works with 480V 3-phase systems. Perfect for industrial machines.
Compare with other models:
Get full details: Download Manual PDF
Why Choose This Drive?
- 15HP power (24A output) – runs big motors
- Works with 480V 3-phase power
- Simple keypad control for easy use
- Strong overload protection (200% for 3 sec)
- Fits in small spaces (DIN rail or panel mount)
Technical Details
| Model | 22B-D024H204 |
| Power | 15HP (11kW) |
| Voltage | 480V AC 3-phase |
| Current | 24A |
| Size | Frame B |
| Protection | IP20 (No heatsink) |
| Temperature | 0-40°C (32-104°F) |
| Weight | 4.5 kg (9.9 lbs) |
Frequently Asked Questions
1. Can this drive work with 400V systems?
No, the 22B-D024H204 needs 480V power.
2. Does it include a cooling fan?
No, this model doesn’t have a heatsink or fan.
3. What cable size do I need?
Use 10 AWG copper wire for best results.
4. Can I control it remotely?
Yes, through RS-485 communication.
5. Is the keypad removable?
Yes, you can take it off after setup.
What You Get
- 22B-D024H204 drive unit
- Mounting hardware
- Quick start guide
Support & Shipping
12-month warranty included. Ships via FedEx, UPS or DHL.
