Description

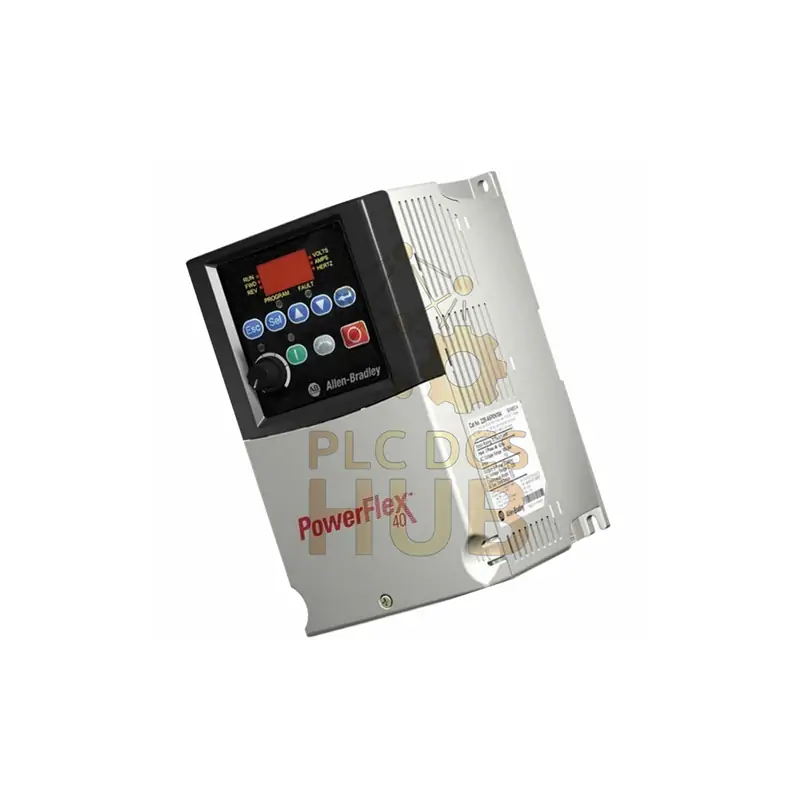

Allen-Bradley 22B-E3P0N104 PowerFlex 40 Drive – Smart Motor Control Made Simple
Key Features
- 3HP (2.2kW) output power
- Works with 414-660V AC, 3-phase power
- Controls motor speed from 0-400Hz
- Includes brake and RS485 communication
- Easy-to-use LED keypad
- 97.5% energy efficient
Technical Specifications
- Model: 22B-E3P0N104 (PowerFlex 40 series)
- Input: 414-660V AC, 3-phase, 50/60Hz
- Output: 0-575V AC, 4.2A max
- Size: 180x100x136mm (7.09×3.94×5.35in)
- Weight: 2.22kg (4.9lbs)
- Works in: 0°C to 40°C (32°F to 104°F)
- Storage Temp: -40°C to 85°C (-40°F to 185°F)
- Control Voltage: 24V DC
What’s Included
- 22B-E3P0N104 drive unit
- Installation guide
Warranty
12-month protection against defects.
Shipping
Fast delivery via FedEx, UPS or DHL.
Expert FAQs
- Can this drive work with single-phase power?
No, it needs 3-phase power. - What motors work with this drive?
Most 3-phase induction motors. - How do I program the inputs?
Use the keypad or software. - Is a filter included?
No, you need to buy one separately. - Can I mount this outdoors?
No, it’s only for indoor use.
Need setup help? Download the PowerFlex 40 manual here.
