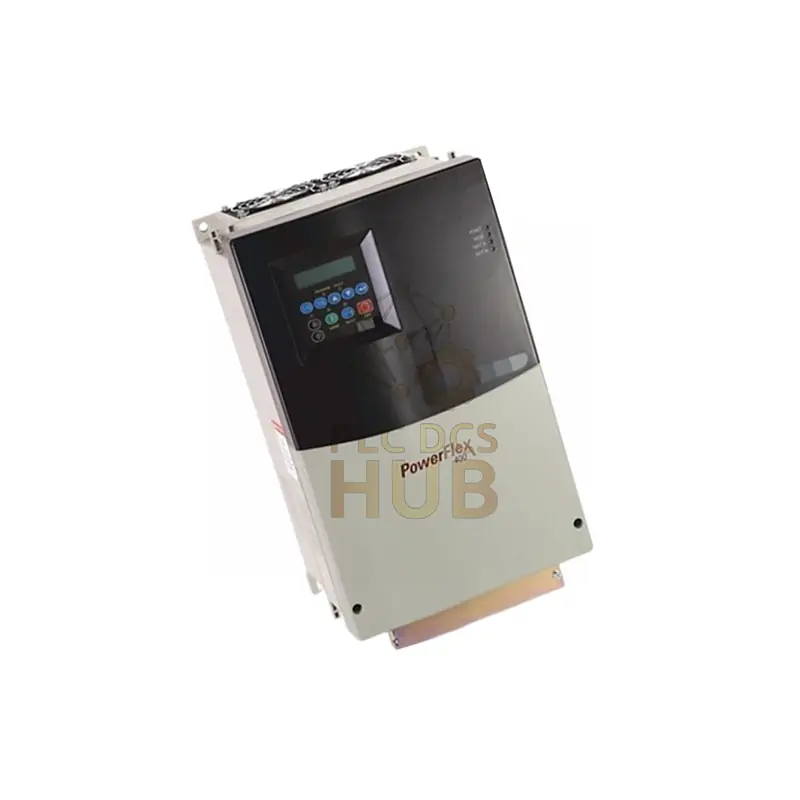

Allen-Bradley PowerFlex 400 22C-B012H103 Adjustable Frequency Drive
Description
The Allen-Bradley 22C-B012H103 PowerFlex 400 is a high-performance AC drive designed for fan and pump applications. It features a 3 HP (2.2 kW) rating with 3-phase 240V AC input and supports flexible mounting options. With built-in PID control, auto-configuration, and multi-protocol communication support, this drive ensures precise motor control and energy efficiency.
Technical Data
- Brand: Allen-Bradley (Rockwell Automation)
- Model: PowerFlex 400 22C-B012H103
- Input Voltage: 240V AC, 3-Phase
- Output Current: 12 Amps
- Horsepower: 3 HP (2.2 kW)
- Enclosure: IP20 (NEMA/UL Type 1), Optional IP66 (Type 4X/12)
- Communication: RS485, DSI (DeviceNet, EtherNet/IP, PROFIBUS DP)
- PID Control: Built-in for process automation
- Operating Temperature: Up to 45°C (113°F)
Installation & Compatibility
Mounts easily via flange or heatsink. Compatible with PLCs via DF1 port and supports multi-drop networks. UL Plenum rated for air handling systems.
Certifications & Warranty
UL/CUL certified. Includes 12-month warranty. Ships via FedEx, UPS, or DHL.
Package Includes
- PowerFlex 400 Drive (22C-B012H103)
- Control Keypad
- Installation Manual
Need more details? Download the full user manual here.
