Description

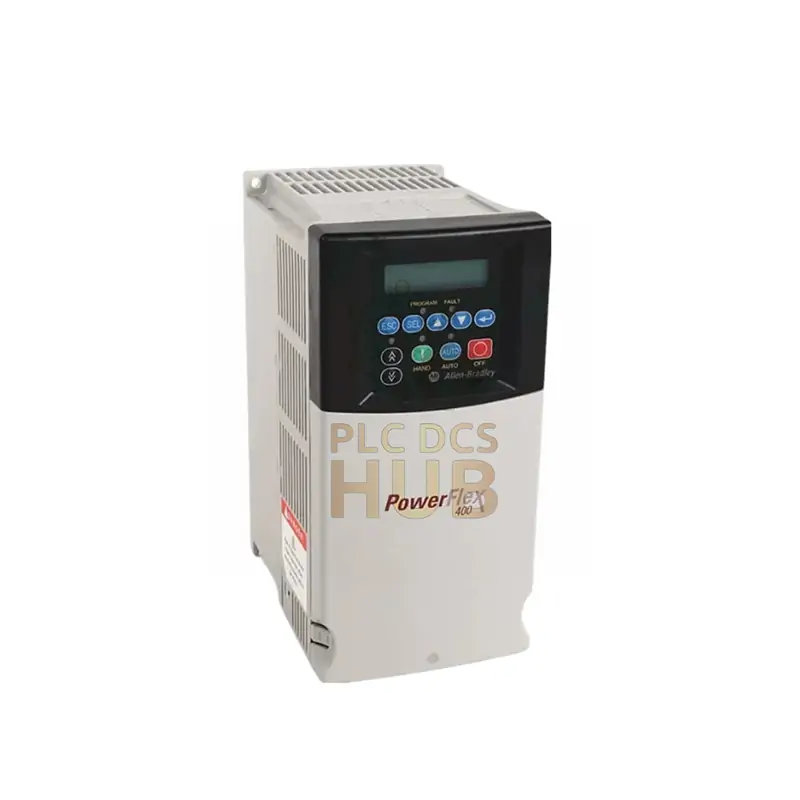

Allen-Bradley 22C-D012N103 – 7.5HP VFD Drive (12A)
Smart Control for Pumps & Fans
- Perfect for 7.5HP motors
- Works with 380-480V AC, 3-phase
- Saves energy with smart speed control
- Compact panel mount design
- Built-in motor protection
Need help installing? Download 22C-D012N103 manual
Technical Highlights
- Model: Allen-Bradley 22C-D012N103
- Power: 7.5 HP (5.5 kW)
- Current: 12A output (14.2A input)
- Voltage Out: 0-460V AC
- Size: 260x130x180mm (10.2×5.1×7.1in)
- Weight: 7.5 kg (16.5 lbs)
- Communication: RS485 + 6 optional networks
Why Choose This Drive?
- 7 digital inputs for flexible control
- 2 analog outputs for monitoring
- Works with HVAC and water systems
- Meets all safety standards
Common Questions
- What’s the minimum wire size?
Use 12 AWG copper wires minimum. - Can it run two motors together?
No, controls one 7.5HP motor only. - How to reset after power loss?
Auto-restart option available. - Is the RS485 cable included?
No, needs to be purchased separately. - What’s the warranty period?
Full 12-month coverage.
Package Contents
- 1x 22C-D012N103 drive unit
- Mounting hardware
- Quick start guide
- 12-month warranty – we fix any issues
Fast shipping: FedEx, UPS, or DHL available worldwide.
