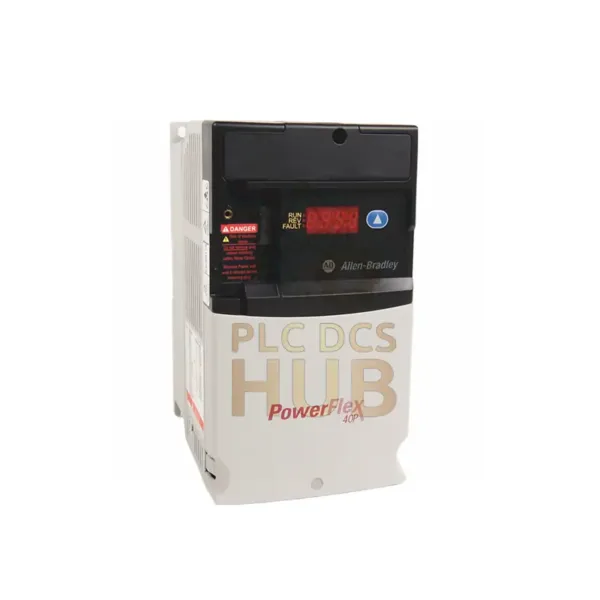

Allen-Bradley 22D-D024F104 PowerFlex Drive – 15HP Industrial Power
Heavy-duty motor control: The 22D-D024F104 delivers robust 15HP (24A) performance in a compact C-frame design, perfect for demanding industrial applications.
Technical Specifications
- Model: 22D-D024F104 (Frame C)
- Input: 480V AC 3-phase
- Output: 24A continuous (15HP/11kW)
- Mounting: Flange mount (IP20)
- Dimensions: 260x130x188mm (10.2×5.1×7.4in)
- Temperature: -10°C to 50°C (14°F to 122°F)
- Display: 4-digit with reset
- Required: AC line reactor or DC bus inductor
Package Contents
- 22D-D024F104 drive unit
- Mounting hardware
- Installation guide
Your Protection
Includes 12-month coverage against manufacturing defects.
Fast Shipping
Available via FedEx, UPS or DHL with tracking.
Expert Answers
- What’s required for installation?
AC line reactor or DC bus inductor must be added. - Can this be mounted horizontally?
No, must be vertical for proper cooling. - Is the display programmable?
Yes, via integral LCD or remote keypad. - What environments should be avoided?
Dusty, moist, or corrosive areas. - Can I network multiple drives?
Yes, through DF1 messaging protocol.
Compare With Higher-Capacity Models
- 22D-D6P0F104 – 25HP standard version
- 22D-D6P0H204 – 25HP NEMA 4X version
