Description

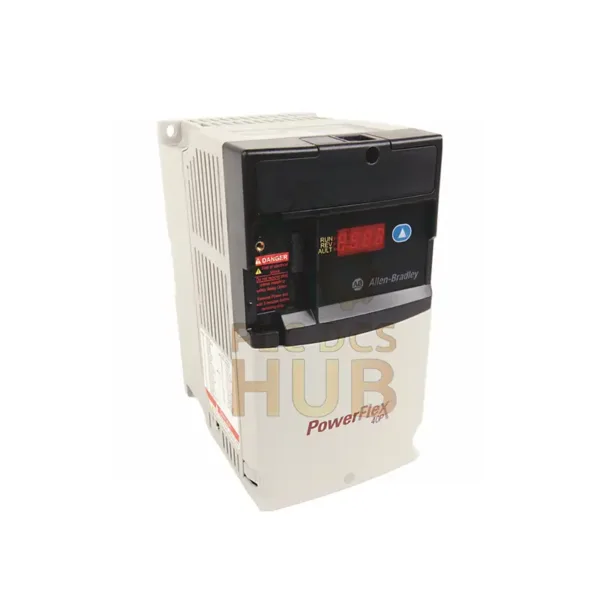

Allen-Bradley 22D-E019N104 Drive – 15 HP Industrial Powerhouse
Built for Heavy-Duty Performance
- 600V AC input – Handles tough industrial power demands
- 15 HP (11 kW) output – Powers large motors with ease
- 19.0A current rating – Supports high-power applications
- Panel mount design – Easy to install in control cabinets
- Sensorless vector control – For precise speed and torque
Key Specifications
- Brand: Allen-Bradley
- Model: 22D-E019N104 (600V, 15HP, Frame C)
- Input: 600V AC, 3-Phase, 50/60Hz
- Output: 0-600V AC, 19.0A, 11kW
- Control Methods: V/Hz & Sensorless Vector
- Protection: IP20 (NEMA Open Type)
- Operating Temp: 0°C to 40°C (32°F to 104°F)
- Storage Temp: -40°C to 70°C (-40°F to 158°F)
- Altitude: Up to 1000m (3280ft) without derating
- Braking: Built-in dynamic braking
Easy Setup & Warranty
- Simple panel mounting
- Works with most 3-phase motors
- Includes autotune for quick setup
- 12-month warranty – Peace of mind included
- Fast shipping options available
Expert Answers
- Does this drive need external cooling? No, it has built-in cooling.
- Can it run two motors at once? No, one motor per drive.
- What communication protocols does it support? RS485 standard, others optional.
- Is programming difficult? No, simple setup with autotune.
- Can it handle pump applications? Yes, ideal for pumps and conveyors.
Compare Similar Models
- 22D-D1P4F104 – 1.5 HP, 480V, 3.4A
- 22D-D1P4H204 – 1.5 HP, 240V, 6.8A
