Description

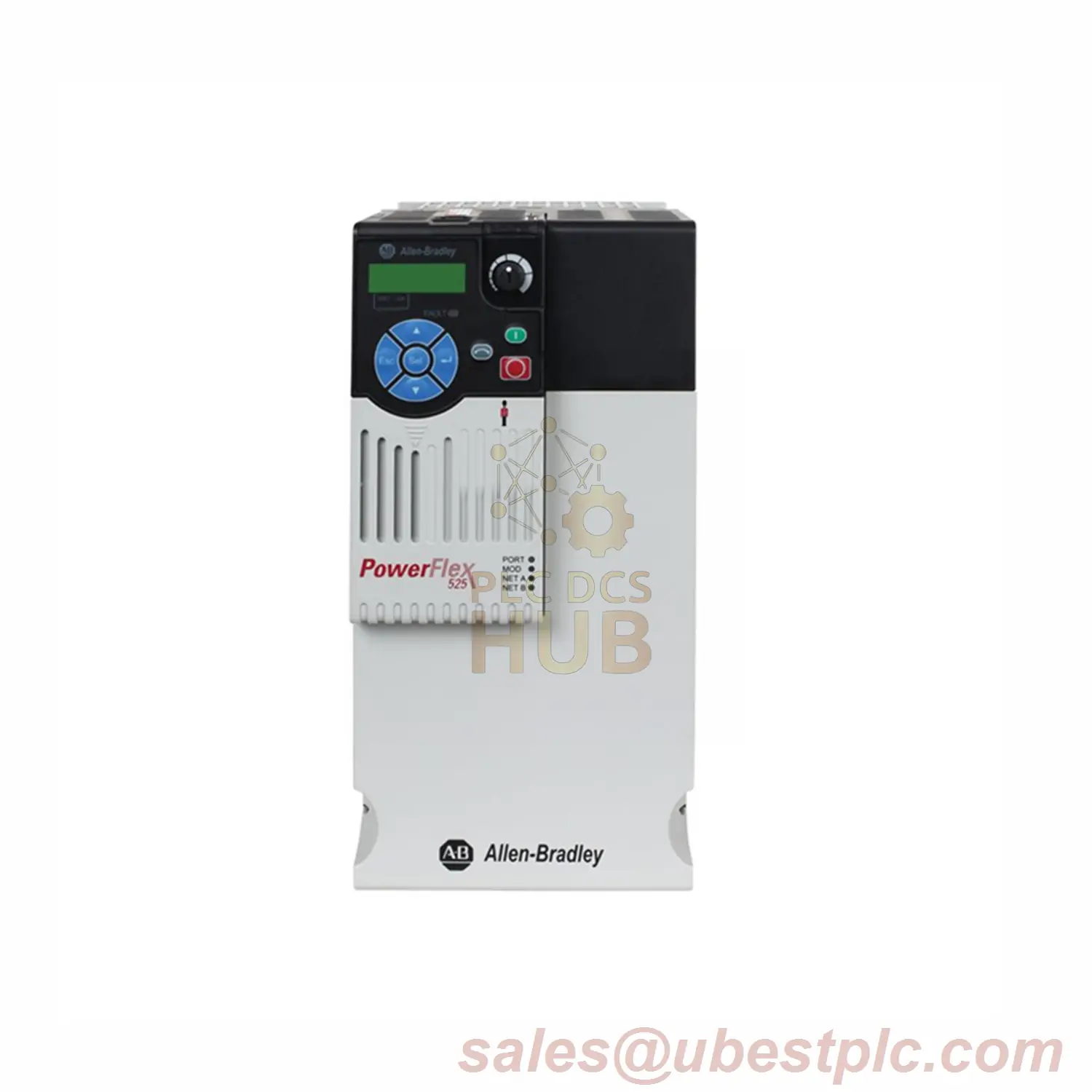

Allen-Bradley 25B-D2P3N114 PowerFlex 525 Drive – 1HP Compact VFD
Compact 1HP motor controller with built-in EMC filter. The 25B-D2P3N114 offers 2.3A output in a space-saving design.
Complete Specifications
- Model: PowerFlex 525 25B-D2P3N114
- Input: 323-528V AC, 3-phase
- Output: 0-460V AC, 2.3A
- Frequency Range: 0-500Hz
- Frame Size: A (compact)
- Communication: EtherNet/IP + RS485
- Display: LCD with multi-language support
- Dimensions: 87 × 180 × 172 mm
- Weight: 1.2 kg
Package & Support
- 12-month quality guarantee
- Fast shipping via FedEx/UPS/DHL
- Includes USB configuration cable
Technical Questions
- What’s the maximum cable length? Up to 50m with output filter
- Can it run two motors? Yes, with proper configuration
- Is the EMC filter removable? No, it’s permanently installed
- What’s the PWM frequency? Adjustable 2-16kHz
- Does it support Modbus? Yes, via RS485 port
Alternative Options
- 25B-B024N104 (Higher power 5HP version)
- 25B-B048N104 (15HP industrial model)
