Description

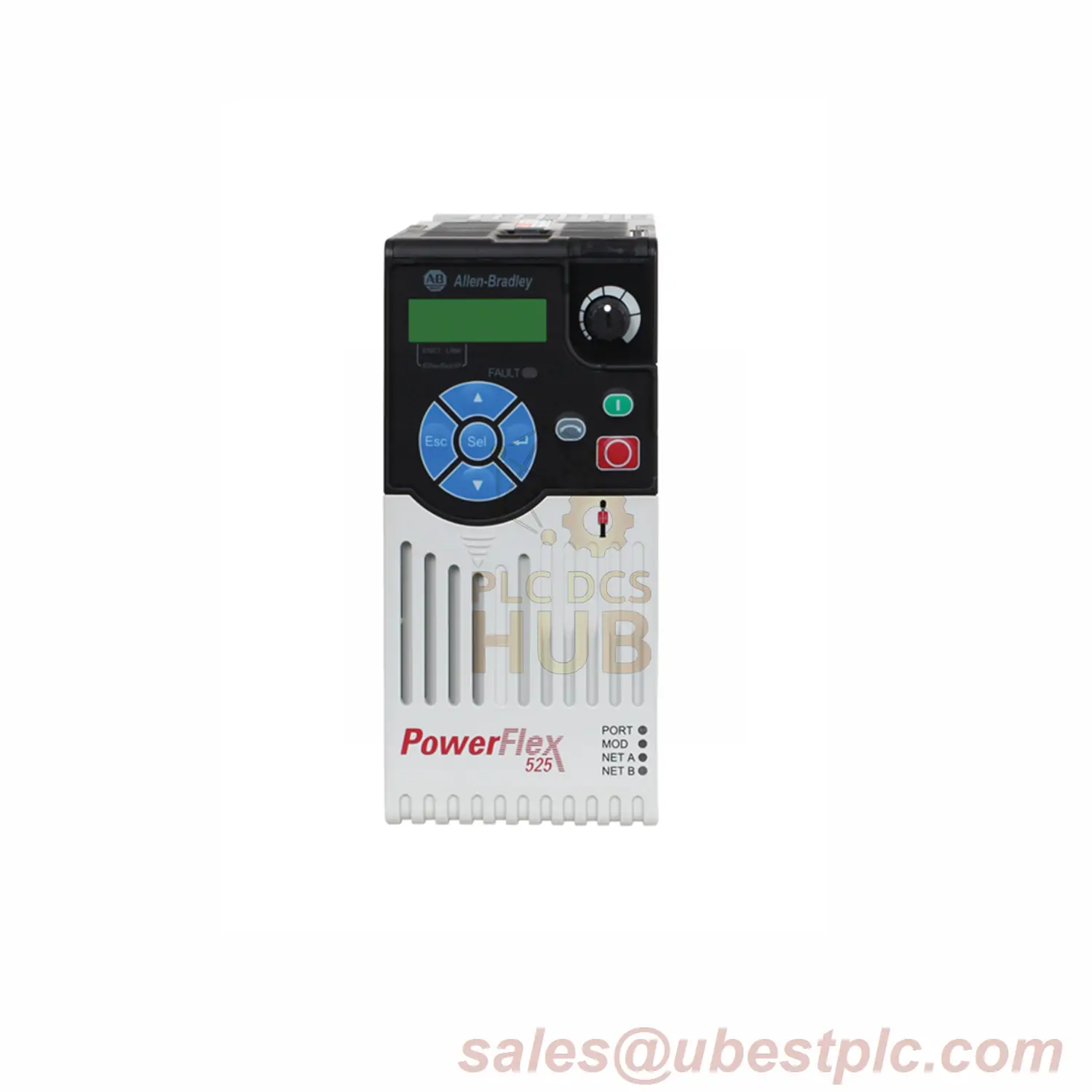

Allen-Bradley 25B-E3P0N104 PowerFlex 525 AC Drive
Control your motors with the Allen-Bradley 25B-E3P0N104. This PowerFlex 525 drive works with 446-660V AC systems. It delivers 3.0 Amps output current for 2.0 HP motors. The drive offers multiple control methods for precise operation. Built-in Ethernet/IP allows easy network integration. Its compact design fits small spaces.
Download the full manual now: PowerFlex 525 Drive Specifications.pdf
Key Features
- Brand: Allen-Bradley
- Series: PowerFlex 525
- Model: 25B-E3P0N104
- Output Current: 3.0 Amps
- Voltage: 446-660V AC 3-Phase
- Power Rating: 1.5 kW (2.0 HP)
- Communication: Built-in Ethernet/IP
Technical Specifications
- Input Voltage: 446-660V AC 3-Phase
- Output Voltage: 0-575V AC
- Output Current: 3.0 Amps
- Output Frequency: 0-500 Hz
- Control Methods: V/Hz, Sensorless Vector, PM Control, Closed Loop
- Digital Inputs: 7 programmable
- Analog Inputs: 2 (0-10V DC/0-20mA)
- Analog Output: 1 (0-10V DC/0-20mA)
- Communication: Ethernet/IP, RS-485
- Enclosure Rating: IP20 / NEMA Open
- Frame Size: A
- Installation: DIN Rail or Panel Mount
- Operating Temperature: Up to 45°C with zero stacking
What’s Included
- One (1) Allen-Bradley 25B-E3P0N104 Drive
- Installation documentation
Shipping Info
- We ship worldwide using FedEx, UPS, and DHL
- Fast delivery options available
Warranty
- 12-month quality guarantee
- Coverage for defects and malfunctions
FAQ
- What motor types can it control?
It works with induction, permanent magnet, and vector control motors. - Can I mount it on DIN rail?
Yes, it supports both DIN rail and panel mounting. - What communication protocols are supported?
Ethernet/IP, RS-485, and optional DeviceNet, PROFIBUS DP. - Does it include safety features?
It has Safe Torque Off and other safety functions. - What is the maximum operating temperature?
It operates up to 45°C with zero stacking configuration.
