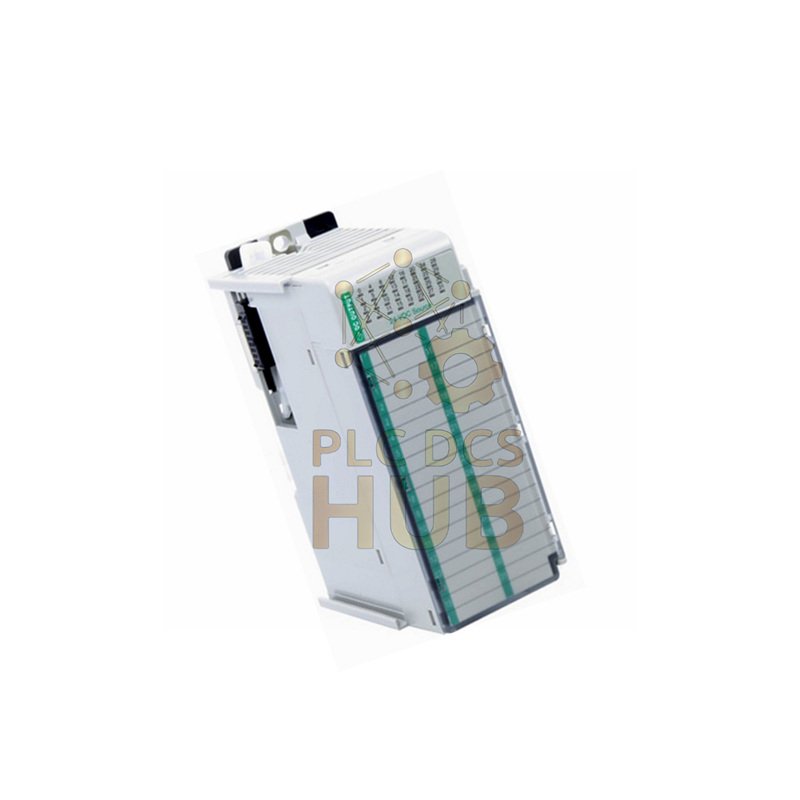

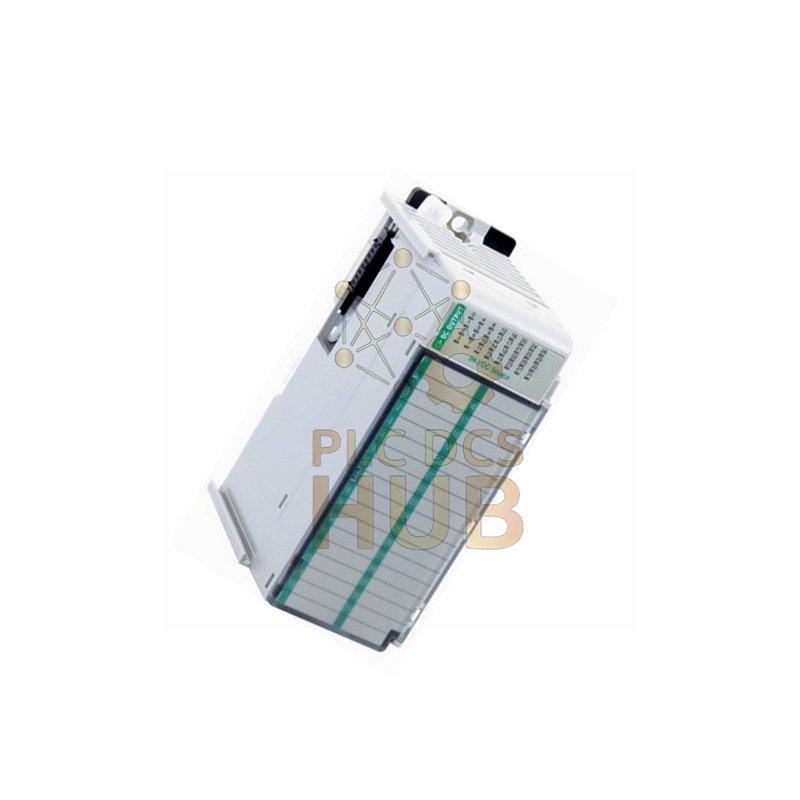

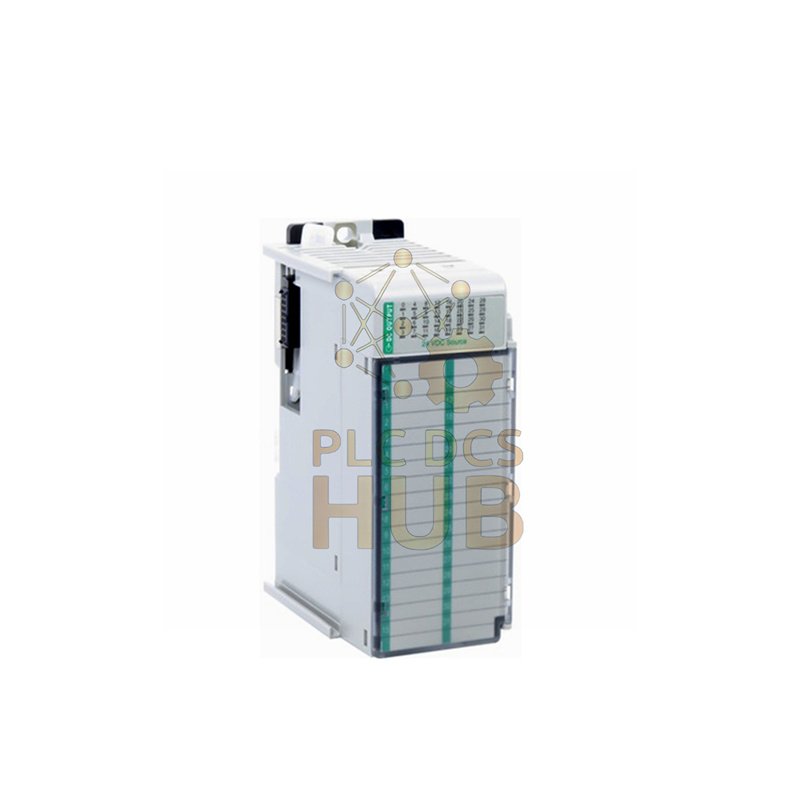

Allen-Bradley 1769-OB32 CompactLogix 32-Point DC Output Module
The Allen-Bradley 1769-OB32 delivers high-density DC output control for industrial automation systems. This space-efficient module offers reliable performance in demanding applications.
Technical Specifications
- Brand & Manufacturer: Allen-Bradley / Rockwell Automation
- Model Number: 1769-OB32
- Output Type: 32-point sinking DC output module
- Voltage Range: 20.4-26.4V DC with reverse polarity protection
- Current Rating: 0.5A @ 60°C, 1.0A @ 30°C per point
- Surge Current: 2.0A for 10ms (repeating every 2 seconds)
- Switching Speed: Turn-on: 0.1ms, Turn-off: 1.0ms
- Isolation: 500V AC between field and logic, 1500V AC group-to-group
- Power Consumption: 300mA @ 5V DC, 4.5W heat dissipation
- Operating Temperature: 0° to 60°C (32° to 140°F)
- Group Configuration: 2 isolated groups of 16 outputs each
- Wire Compatibility: 22-14 AWG solid, 22-16 AWG stranded copper
- Status Indicators: Per-point LED status, module health indicator
- Leakage Current: 1.0mA maximum off-state leakage
- Voltage Drop: 1.0V maximum on-state voltage drop
- MTBF Rating: 750,000 hours at 40°C operating temperature
Packaging & Shipping
- Factory-sealed package includes one 1769-OB32 module
- Installation documentation and specification sheet included
- Shipping dimensions: 8 x 8 x 5 inches, weight: 2 pounds
- Global express shipping via FedEx, UPS, and DHL available
- 12-month warranty against manufacturing defects
