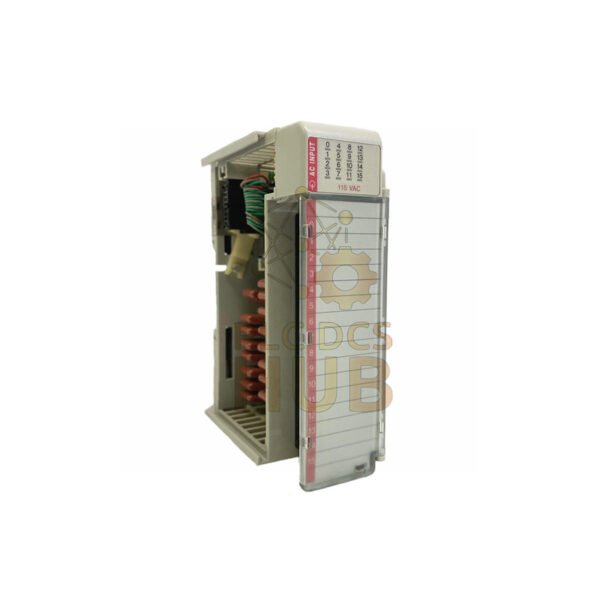

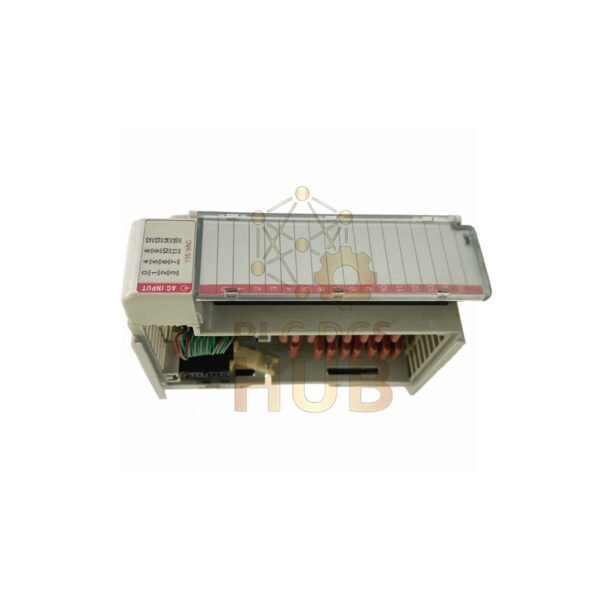

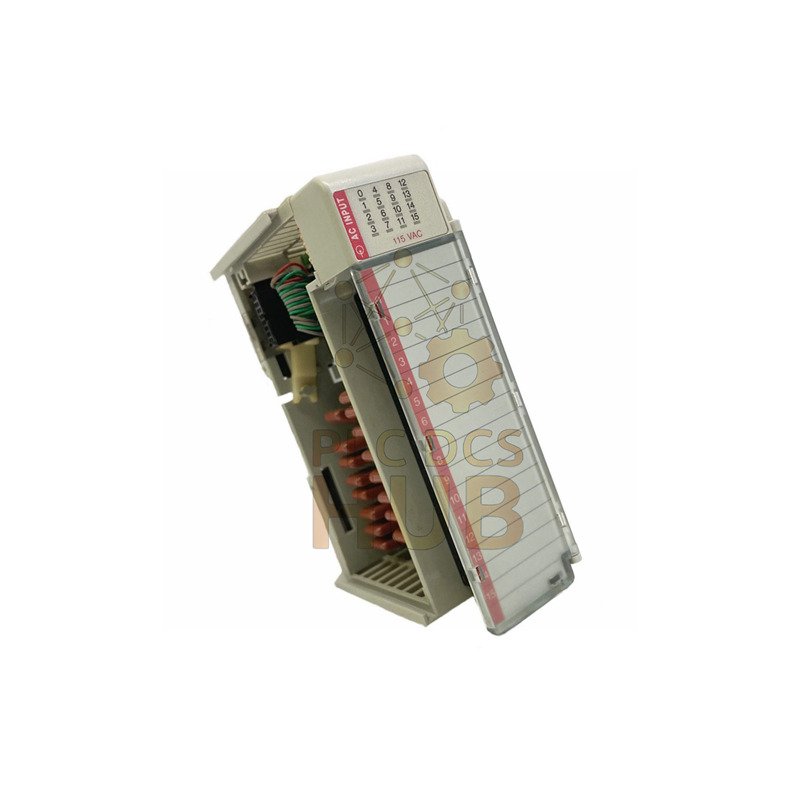

Allen-Bradley 1769-IA16 CompactLogix 16-Channel AC Input Module
The Allen-Bradley 1769-IA16 is a 16-channel AC input module for industrial control systems. It connects AC sensors and switches to your CompactLogix or MicroLogix controller. This reliable module handles 120V AC signals for various automation applications.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1769-IA16
- Input Channels: 16
- Input Voltage: 79-132V AC
- Operating Frequency: 47-63 Hz
- On-State Current: 5mA @ 74V AC (min), 12mA @ 120V AC (max)
- Off-State Current: 2.5mA max @ 20V AC
- Response Time: 20ms (on and off)
- Current Draw: 115mA @ 5.1V DC
- Power Dissipation: 3.3W
- Wire Size: 22-14 AWG (solid), 22-16 AWG (stranded)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Dimensions: 118mm H x 35mm W x 87mm D (4.65″ x 1.38″ x 3.43″)
- Weight: 0.61 lbs (280 g)
Compatibility & Comparison
The 1769-IA16 works with CompactLogix and MicroLogix 1500 systems. Compare with 1769-OB32 output module or see 1769-IQ16 DC input module.
Installation Guide
Install in any slot within 8 modules of power supply. Use the removable terminal block for easy wiring. Connect AC devices to input channels.
FAQ
- 1. What controllers work with this module?
It works with CompactLogix and MicroLogix 1500 controllers. - 2. What voltage signals does it accept?
It accepts 79-132V AC signals at 47-63 Hz frequency. - 3. How many devices can I connect?
You can connect up to 16 AC input devices. - 4. What is the response time?
It has a 20 millisecond response time for both on and off states. - 5. What wire size should I use?
Use 22-14 AWG solid wire or 22-16 AWG stranded wire.
Packaging & Warranty
Package Includes: One (1) Allen-Bradley 1769-IA16 AC Input Module.
We provide a 12-month warranty on this product.
Shipping
We ship worldwide using FedEx, UPS, and DHL for reliable delivery.
