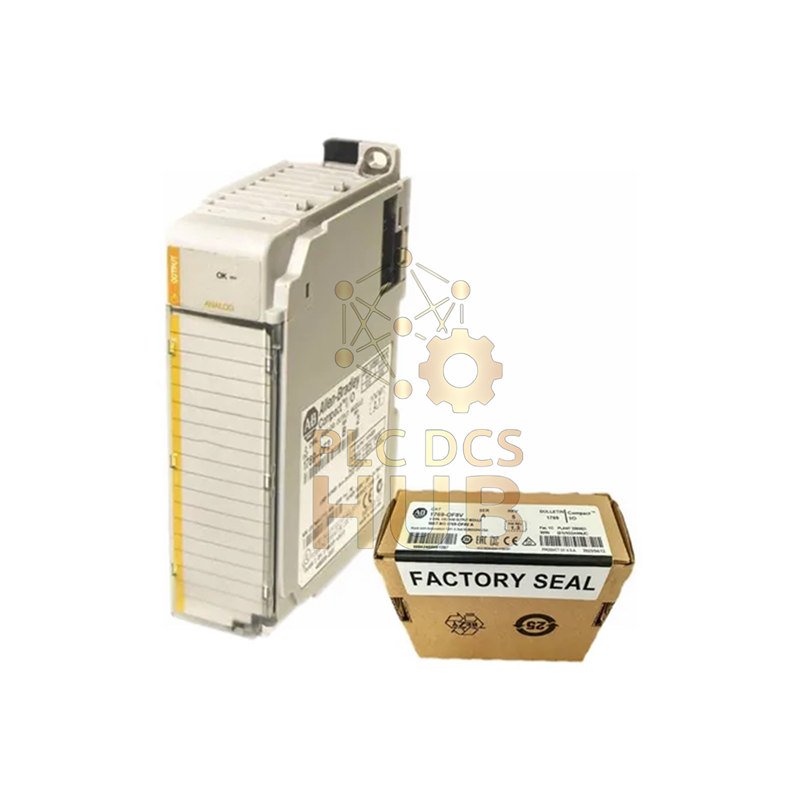

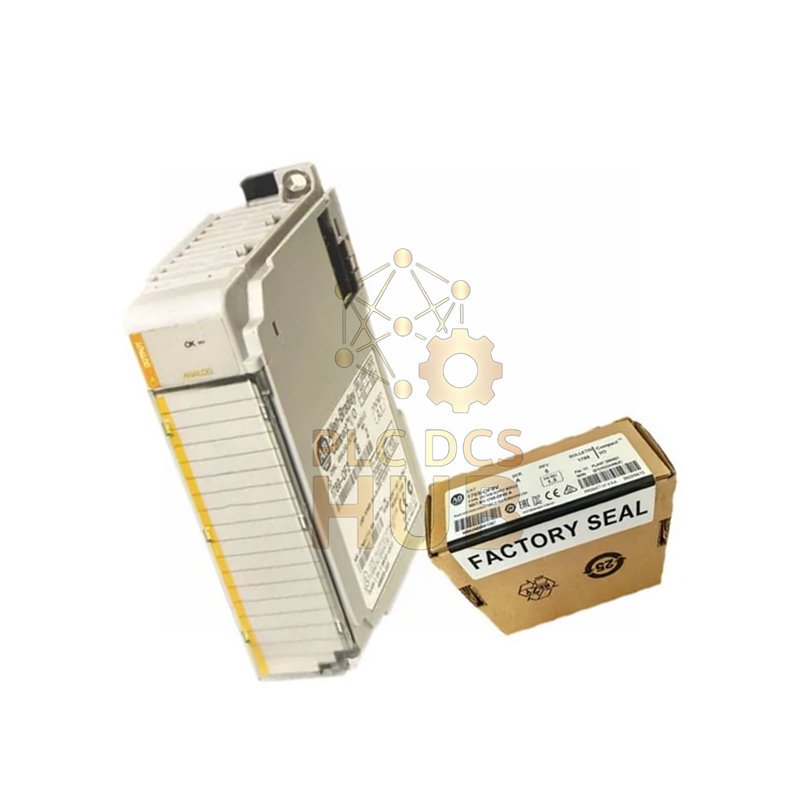

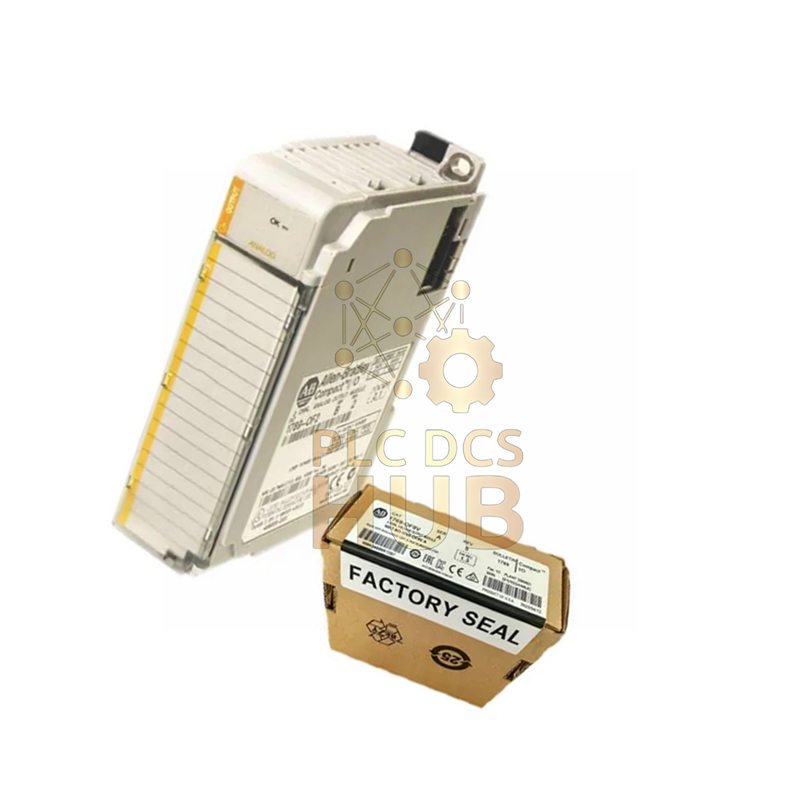

Allen-Bradley 1769-OF8V CompactLogix 8-Channel Analog Voltage Output Module
The Allen-Bradley 1769-OF8V delivers high-density analog voltage output control for precision industrial applications. This versatile module provides eight configurable channels in a compact form factor.
Technical Specifications
- Brand & Manufacturer: Allen-Bradley / Rockwell Automation
- Model Number: 1769-OF8V
- Output Type: 8-channel analog voltage output module
- Voltage Ranges: ±10V, 0-10V, 0-5V, 1-5V DC configurable per channel
- Resolution: 16-bit plus sign (65,536 counts), 330μV/bit
- Accuracy: ±0.5% of full scale at 25°C (77°F)
- Update Rate: 5ms for all eight channels
- Output Impedance: <1Ω for stable voltage regulation
- Load Capacity: >1kΩ minimum, 10mA maximum output current
- Power Consumption: 145mA @ 5V DC, 135mA @ 24V DC
- Heat Dissipation: 2.16W maximum
- Operating Temperature: 0° to 60°C (32° to 140°F)
- Isolation: 500V AC output-to-bus isolation for 1 minute
- Response Time: 2.9ms to 63% of final value
- Short-Circuit Protection: 30mA maximum current limit
- Ripple & Noise: ±0.05% from 0 to 50kHz
- Temperature Drift: ±0.0086% per °C
Compatible Systems
- Works seamlessly with 1769 CompactLogix controller systems
- Compatible with MicroLogix 1500 using appropriate expansion adapters
- Integrates with DeviceNet networks via 1769-ADN communication adapter
- Connects to EtherNet/IP systems through 1769-AENTR interface
- Supports Studio 5000 programming environment for easy configuration
Packaging & Shipping
- Factory-sealed package includes one 1769-OF8V module
- Complete installation manual and specification sheet included
- Shipping dimensions: 8 x 8 x 5 inches, weight: 2 pounds
- Global express shipping via FedEx, UPS, and DHL available
- 12-month warranty against manufacturing defects
Related Products Comparison
- 1769-ARM: Address reserve module for chassis space management
- 1769-ASCII: Communication module for serial device integration
