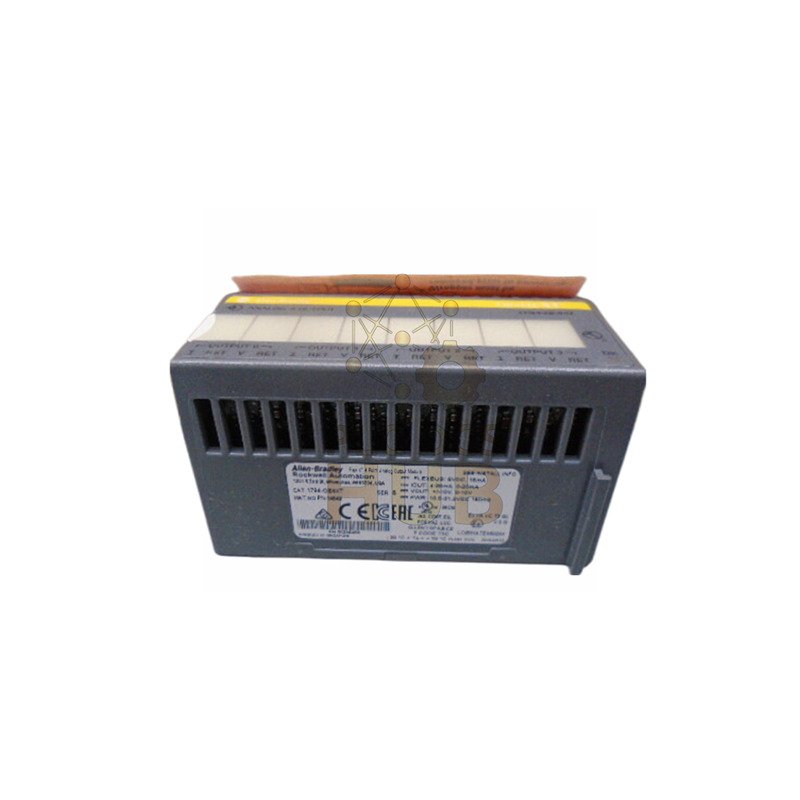

Allen-Bradley 1794-OE4XT Flex I/O Analog Output Module | Extended Temperature
The Allen-Bradley 1794-OE4XT delivers robust analog output performance for demanding industrial environments. This extended temperature module provides precise control capabilities for critical automation applications.
Technical Specifications & Performance Data
- Brand: Allen-Bradley / Rockwell Automation
- Model: 1794-OE4XT
- Output Channels: 4 single-ended non-isolated outputs
- Voltage Range: -10V to +10V DC programmable output
- Current Range: 0-20 mA configurable current output
- Load Capacity: 15-750 ohms @ 24V DC for current outputs
- Power Supply: 19.2-31.2V DC (24V DC nominal operation)
- Resolution: 16-bit high precision conversion
- Accuracy: ±0.1% full scale with excellent linearity
- Update Rate: 2ms per channel for rapid response
Environmental Ratings & Durability Features
- Temperature Range: -40°C to 70°C (-40°F to 158°F) operation
- Humidity Tolerance: 5-95% non-condensing relative humidity
- Vibration Resistance: 5g @ 10-500 Hz operating conditions
- Shock Rating: 30g operating, 50g non-operating shock tolerance
- EMC Compatibility: Meets industrial electromagnetic standards
- Enclosure Rating: Open-style (requires protective housing)
Packaging & Shipping Information
- Includes one 1794-OE4XT analog output module
- Professional protective packaging ensures safe transit
- Global express shipping via FedEx, UPS, and DHL
- 12-month quality warranty covering manufacturing defects
Alternative Module Comparisons
- For digital input applications, consider the 1794-IB32
- The 1794-IB8 provides compact digital input functionality
