Description

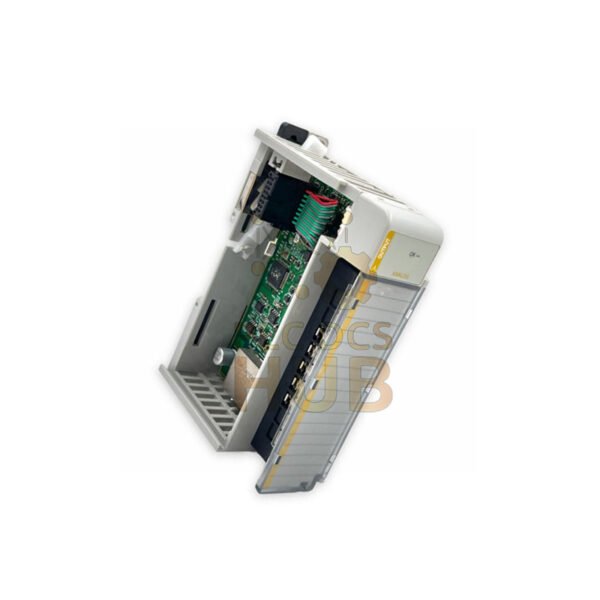

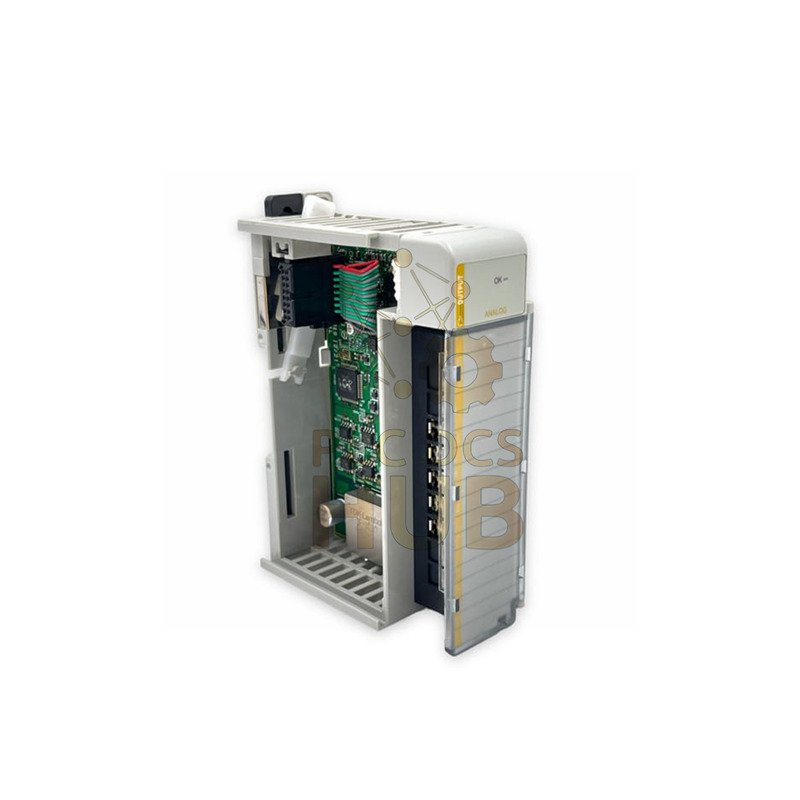

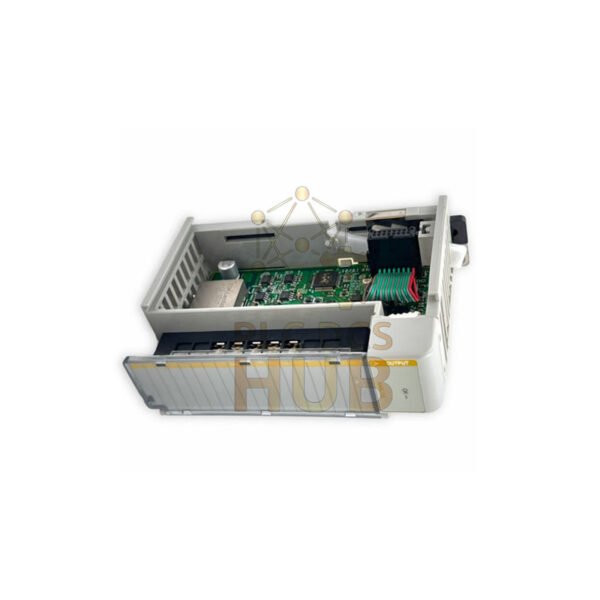

Allen-Bradley 1769-OF4 CompactLogix 4-Channel Analog Output Module
The Allen-Bradley 1769-OF4 delivers precision analog control for industrial automation systems. This versatile module provides accurate signal output for process control applications.
Technical Specifications
- Brand & Manufacturer: Allen-Bradley / Rockwell Automation
- Model Number: 1769-OF4
- Output Type: 4-channel analog output module
- Voltage Ranges: ±10V, 0-10V, 0-5V, 1-5V DC
- Current Ranges: 0-20mA, 4-20mA with 600Ω maximum load
- Resolution: 15-bit plus sign (32,768 counts)
- Accuracy: ±0.05% of full scale at 25°C
- Update Rate: 2.5ms per channel, 10ms for all channels
- Non-Linearity: ±0.05% maximum deviation
- Temperature Drift: ±0.0086% per °C
- Output Impedance: <1 MΩ voltage, >1 MΩ current
- Power Consumption: 120mA @ 5.1V DC, 170mA @ 24V DC
- Heat Dissipation: 2.86W maximum
- Operating Temperature: 0° to 60°C (32° to 140°F)
- Isolation: 500V AC channel-to-bus isolation
- Response Time: 2.9ms to 63% of final value
- MTBF Rating: 650,000 hours at 40°C
Compatible Systems
- Works with 1769 CompactLogix controllers and chassis
- Compatible with MicroLogix 1500 controllers
- Integrates with DeviceNet using 1769-ADN adapter
- Connects to EtherNet/IP via 1769-AENTR adapter
- Supports Studio 5000 programming environment
Packaging & Shipping
- Factory-sealed package includes one 1769-OF4 module
- Complete installation documentation included
- Shipping dimensions: 8 x 8 x 5 inches, weight: 2 pounds
- Global express shipping via FedEx, UPS, and DHL
- 12-month warranty against defects
Related Products Comparison
- 1769-L24ER: CompactLogix controller with embedded I/O
- 1769-IF16V: 16-channel analog voltage input module
