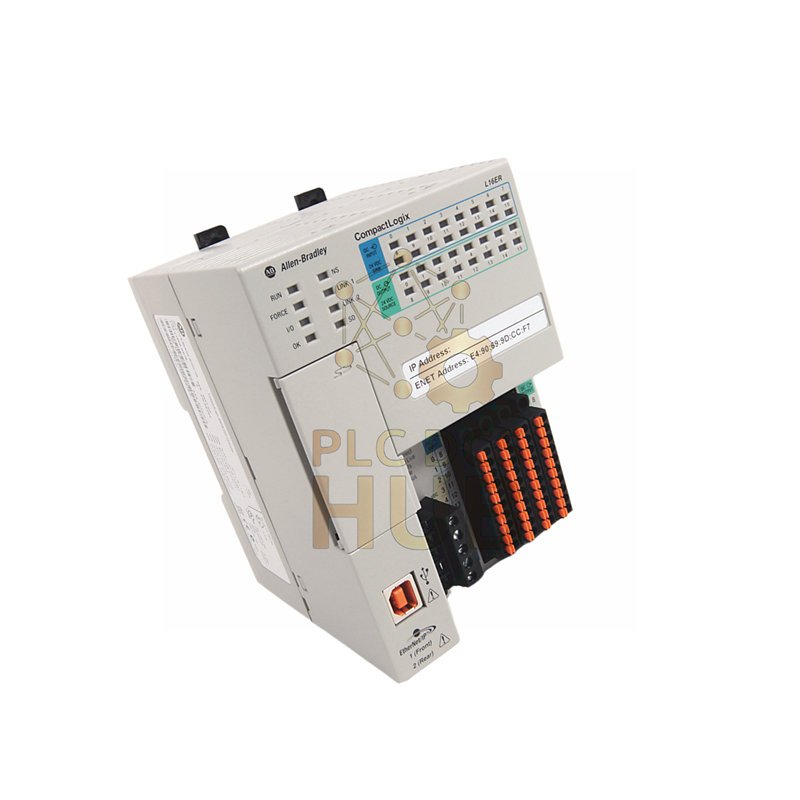

Allen-Bradley 1769-L16ER-BB1B CompactLogix 5370 Controller
The 1769-L16ER-BB1B represents Allen-Bradley’s advanced CompactLogix 5370 series controller, offering robust automation capabilities with integrated I/O and dual Ethernet ports. This powerful PAC delivers exceptional performance for machine-level control applications.
Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Model: 1769-L16ER-BB1B
- Controller Family: CompactLogix 5370 L1 Series
- User Memory: 384 KB
- Embedded I/O: 16x 24V DC Inputs, 16x 24V DC Outputs
- Communication Ports: 1x USB, 2x Ethernet/IP
- Max Expansion Modules: 6x 1734 Point I/O Modules
- Programming Languages: Ladder Logic, Structured Text, Function Block, SFC
- Task Capacity: 32 tasks with 100 programs each
- Power Consumption: 1A @ 5V DC, 11.5W dissipation
- Network Topologies: Star, Linear, Device Level Ring (DLR)
- Connection Limits: 256 CIP connections, 120 TCP connections
- Packet Rate: 6000 packets/sec @ 500 bytes/packet
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Vibration Resistance: 2.5G @ 10-500 Hz
- Shock Resistance: 30G peak acceleration
Packaging Contents
- One Allen-Bradley 1769-L16ER-BB1B controller unit
- 1GB Secure Digital (SD) memory card
- Complete installation and user documentation
- Required mounting hardware and accessories
Performance Capabilities
- Supports Device Level Ring topology for network redundancy
- Handles up to 32 simultaneous controller tasks
- Processes 6000 I/O packets per second efficiently
- Provides built-in energy storage eliminating battery needs
- Offers seamless integration with 1734 Point I/O system
- Enables mixed programming language applications
